- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-23TC

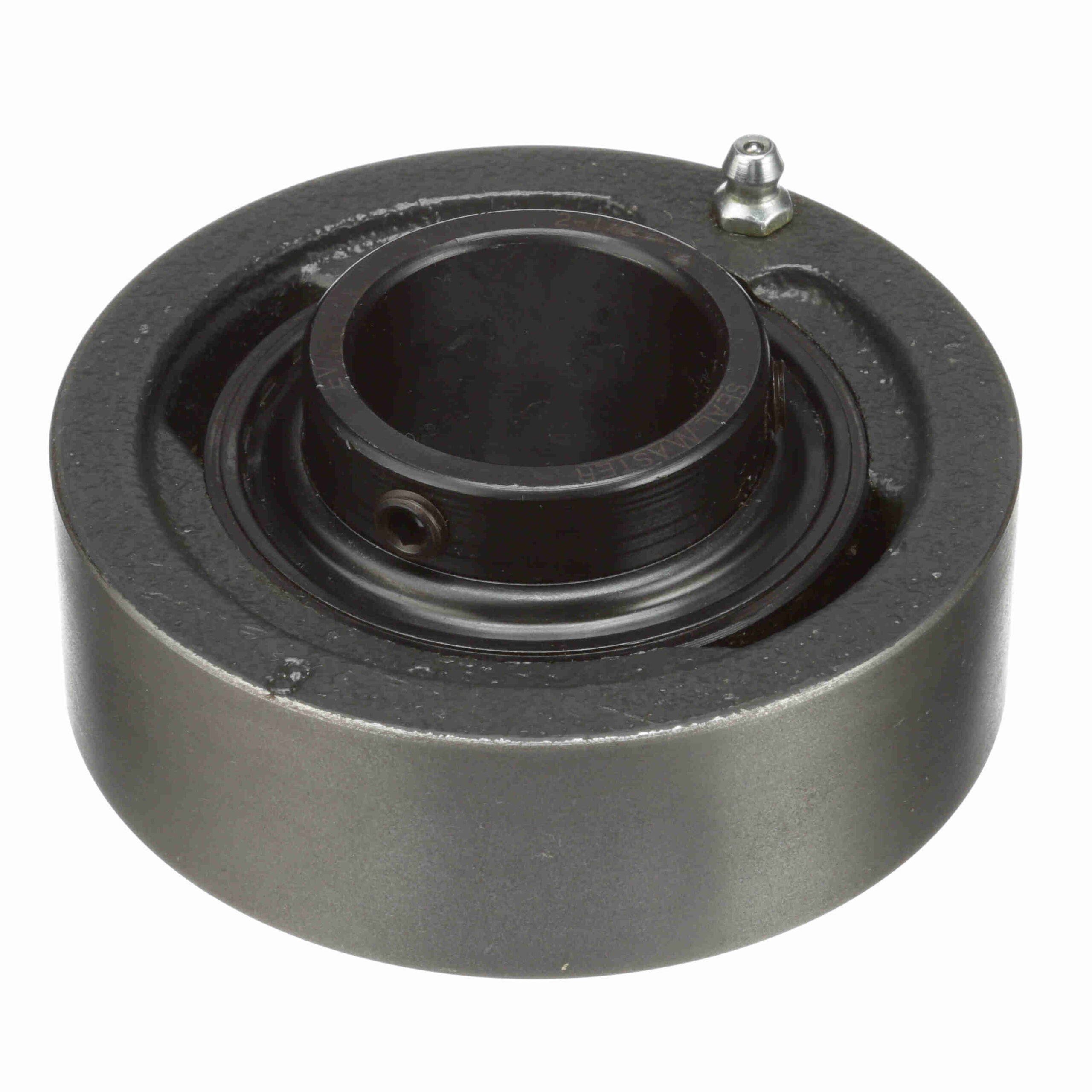

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SC-23TC
$197.98
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Insert No.: | 2-17TC |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Rolling Element: | Ball Bearing | Housing Material: | Cast Iron |
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Standard Duty | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Type: | Cartridge; Cylindrical | Locking Type: | Concentric |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Measure Units: | Inch | Speed (Max): | 4650 |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Relubricatable: | Yes | Housing Color: | Gray |
| Replaceable Insert: | Yes | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 3, 493 | Series: | SC-T |
| Cage Material: | PPS | UPC: | 662461032893 |
| Weight: | 3.50 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
