- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-23

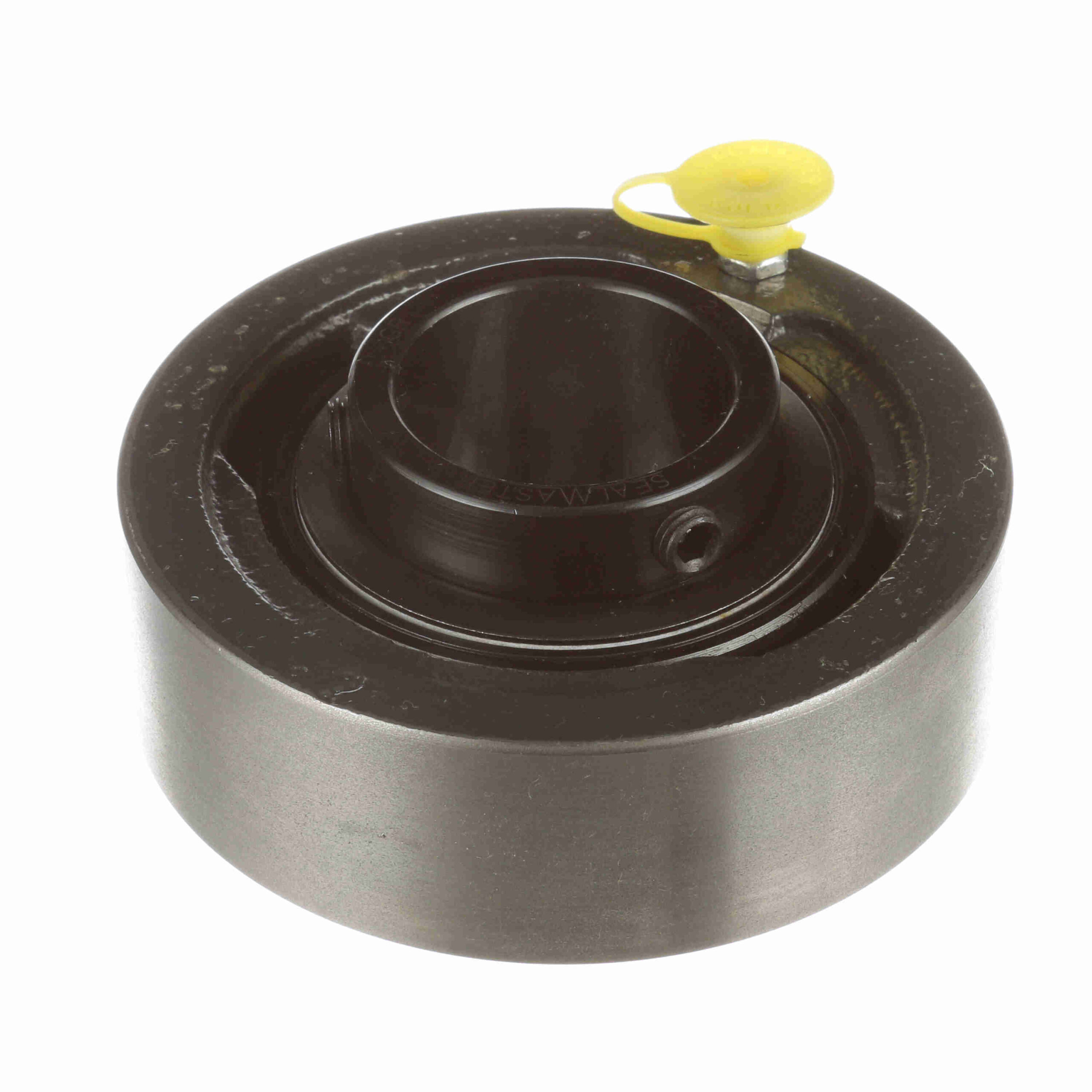

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SC-23
$198.36
Availability: 3 in stock
Availability: 3 in stock
| Rolling Element: | Ball Bearing | Housing Type: | Cartridge; Cylindrical |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Maximum Operating Temperature: | 220 °F |
| Insert No.: | 2-17 | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Expansion: | No |
| Duty Series: | Standard Duty | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Measure Units: | Inch | Locking Type: | Setscrew |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Speed (Max): | 4650 | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Radial Static Load Capacity (lb): | 3, 493 | Cage Material: | PPS |
| Series: | SC | UPC: | 662461002476 |
| Weight: | 2.88 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
