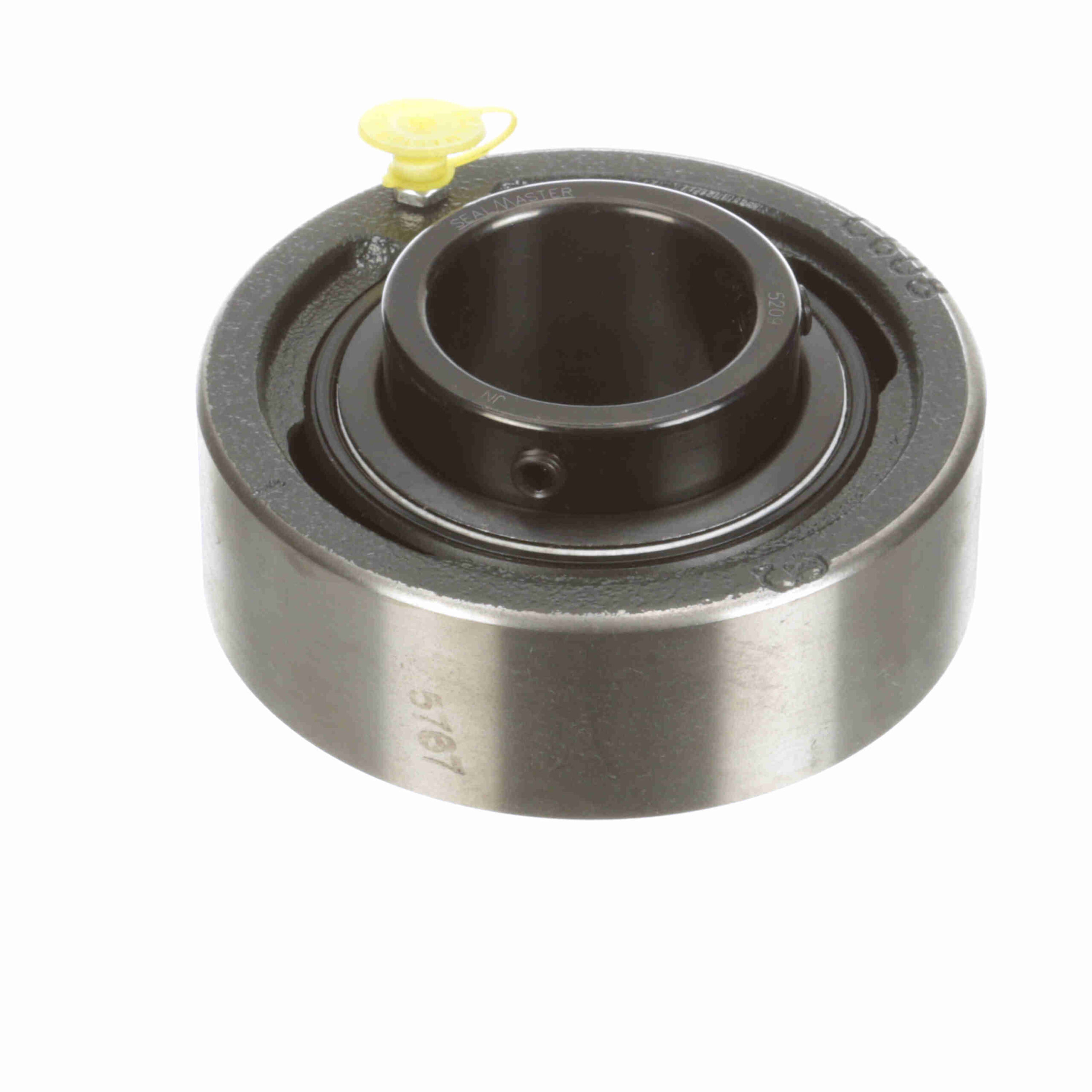

SC-209

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Rolling Element:	Ball Bearing	Insert No.:	5209
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Material:	Cast Iron
Expansion:	No	Seal Type:	Felt Labyrinth Seal
Housing Type:	Cartridge, Cylindrical	Duty Series:	Standard Duty
Maximum Operating Temperature:	220 °F	Retainer Type:	Land Riding Retainer
Insert Material:	52100 Bearing Steel, Black Oxided	Speed (Max):	3800
Measure Units:	Metric	Relubricatable:	Yes
Radial Dynamic Load Capacity (lb):	7, 901	Bore Shape:	Straight
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
Locking Type:	Setscrew	Internal Clearance:	Standard
Lubrication:	Lithium Complex NLGI 2 Grease	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
End Cap:	No	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Replaceable Insert:	Yes
Radial Static Load Capacity (lb):	5, 139	Series:	SC
Cage Material:	PPS	UPC:	662461052051
Weight:	4.50 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
