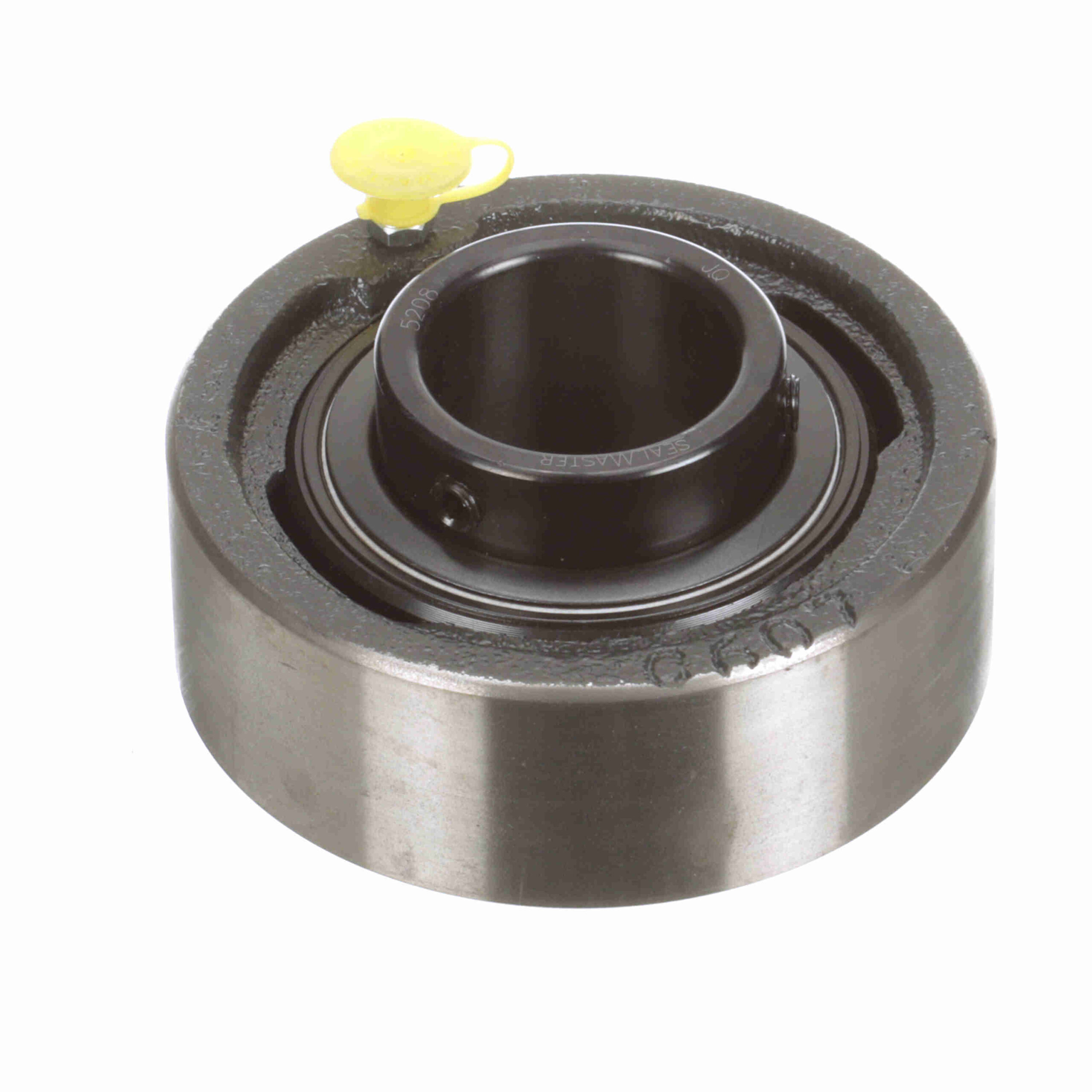

SC-208

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Rolling Element:	Ball Bearing	Seal Type:	Felt Labyrinth Seal
Insert Material:	52100 Bearing Steel, Black Oxided	Bore Shape:	Straight
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	7, 340 lb
Misalignment:	±2.0° Misalignment - Static Only	Measure Units:	Metric
Internal Clearance:	Standard	Misalignment Type:	Static Only
Housing Color:	Gray	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Radial Static Load Capacity (lb):	4, 467 lb	Series:	SC
Cage Material:	PPS	Locking Type:	Setscrew
Housing Type:	Cartridge, Cylindrical	Lubrication Type:	Lithium Complex NLGI 2 Grease
Duty/Series:	Standard Duty	Retainer Type:	Land Riding Retainer
Housing Style:	Cartidge Block	Fixed vs. Expansion:	Fixed
Maximum Speed (RPM):	4150 rpm	Housing Material:	Cast Iron
Insert Number:	5208	Ability to Relubricate:	Yes
Maximum Operating Temperature (F):	220 °F	Inner Race Heat Treat Method:	Zone-Hardened
UPC:	662461000000	Weight:	3.83 LB
Packaged Length:	5 Inches	Packaged Width:	2 Inches
Packaged Height:	5 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
