- 22300 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
SB 22314 W33 SS

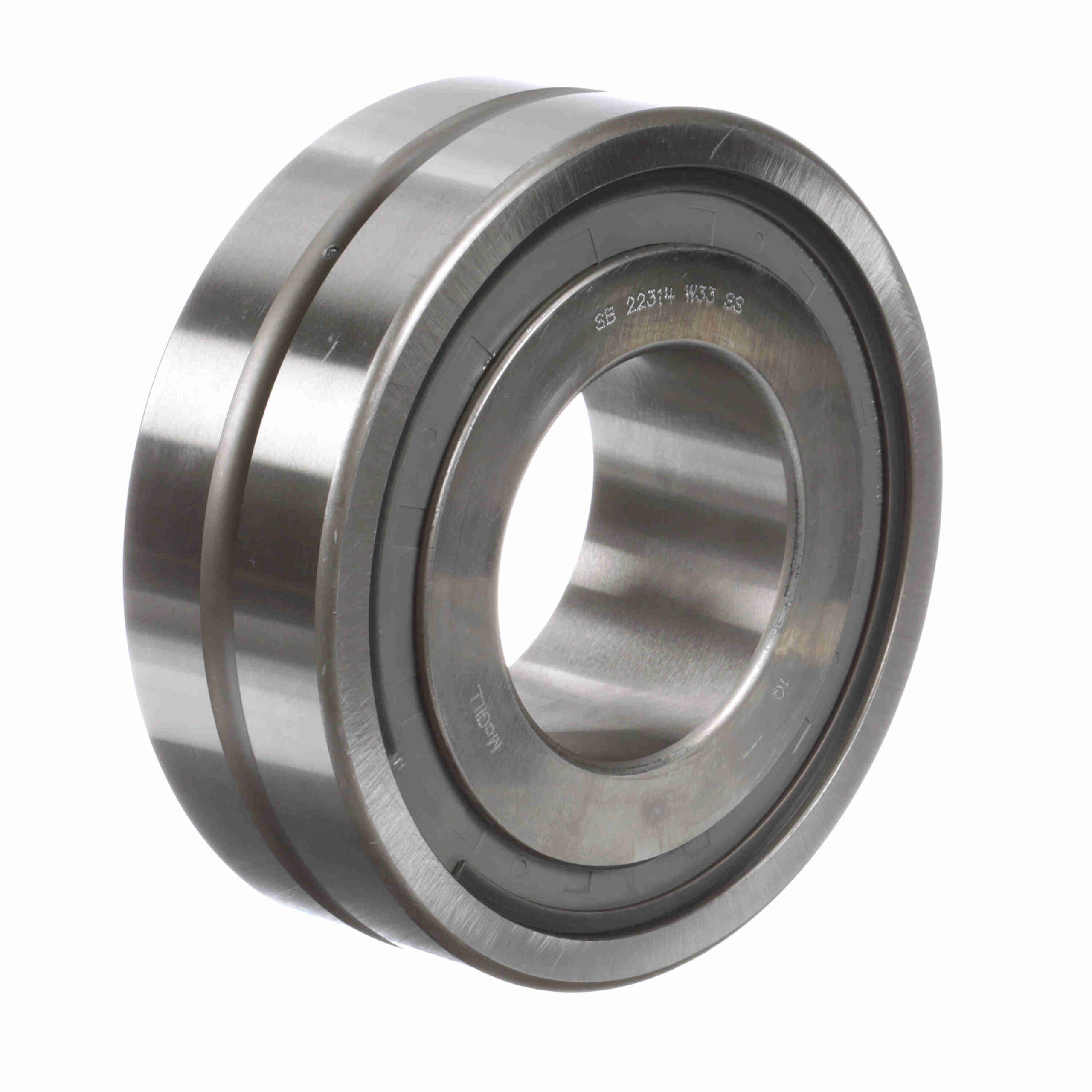

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22314 W33 SS
$662.16
Out of stock
Out of stock
| Seal Type: | Single Seal | Series: | 22300 |
|---|---|---|---|
| Cage Material: | Steel | Number of Rows: | 1 |
| Radial Clearance: | C0 | Rolling Element: | Spherical Roller |
| Material: | 52100 Bearing Steel | Angular Misalignment: | 2° |
| Misalignment: | Yes | Bore Type: | Straight |
| Platform: | SPHERE-ROL® | Sealed: | Sealed - Both Sides |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Speed (Max) Grease (RPM): | 1, 500 rpm | Speed (Max) Oil (RPM): | 3, 000 rpm |
| Precision Rating: | P0, ISO 15-2067 | Finish/Coating: | Uncoated |
| Outer Ring Type: | Not split | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 306.4 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166011116 | Weight: | 9.41 LB |
| Packaged Length: | 7.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.25 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
