- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Lambda® seal on both sides
- Standard internal clearance
- Tapered bore
SB 22220K W33 YSS

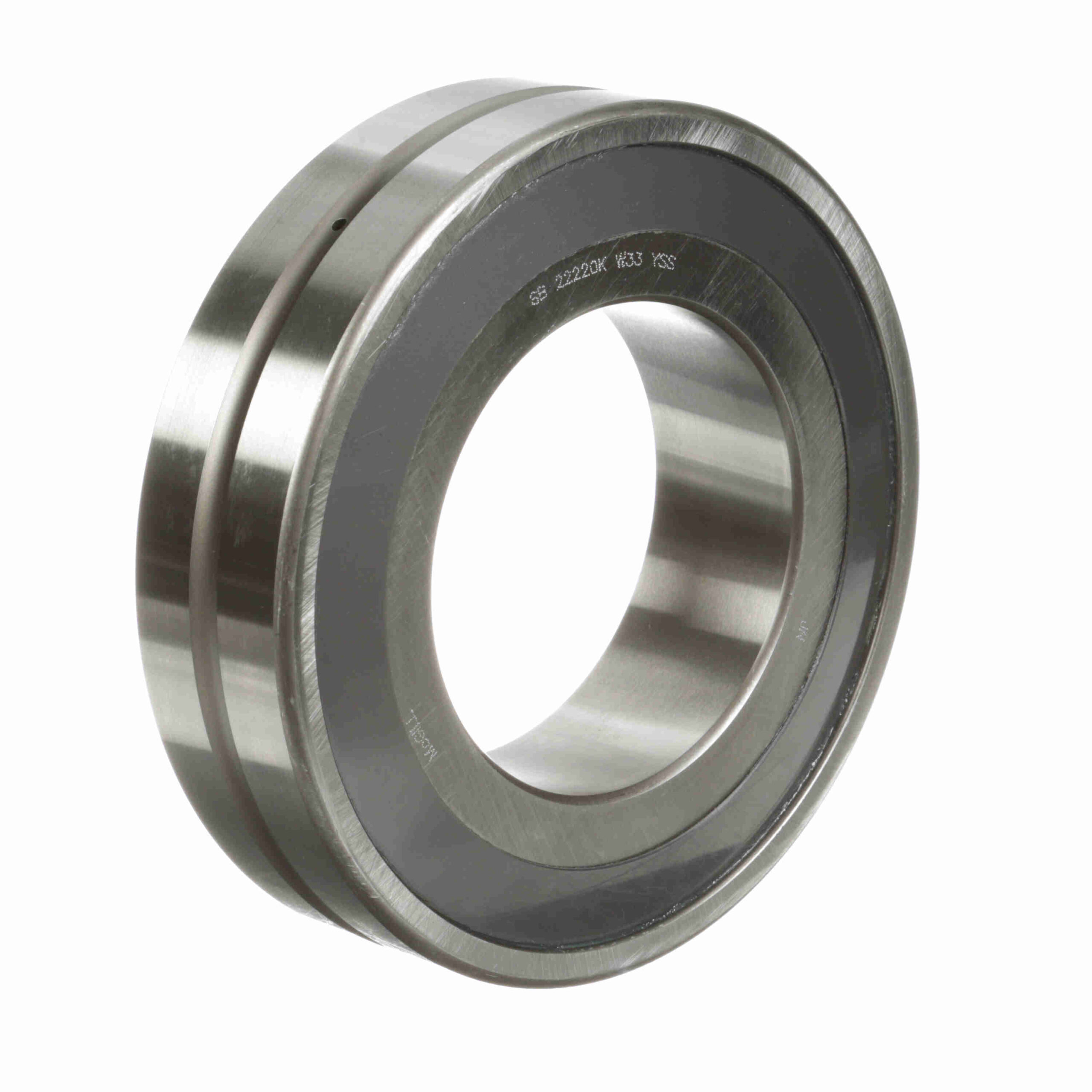

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Tapered Bore – Sealed – SB 22220K W33 YSS
$1,379.31
Out of stock
Out of stock
| Series: | 22200 | Seal Type: | Double Seal |
|---|---|---|---|
| Cage Material: | Steel | Number of Rows: | 1 |
| Material: | 52100 Bearing Steel | Angular Misalignment: | 1° |
| Bore Type: | Tapered | Rolling Element: | Spherical Roller |
| Misalignment: | Yes | Radial Clearance: | C0 |
| Speed (Max) Grease (RPM): | 1, 250 rpm | Duplexing: | No |
| Platform: | SPHERE-ROL® | Full Complement/Caged: | Caged |
| Sealed: | Sealed - Both Sides | Speed (Max) Oil (RPM): | 2, 500 rpm |
| Outer Ring Type: | Not Split | Precision Rating: | P0, ISO 15-2008 |
| Finish/Coating: | Uncoated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 348.1 kN | Mounting Method: | Adapter Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166007638 | Weight: | 11.10 LB |
| Packaged Length: | 7.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.25 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
