- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Standard internal clearance
SB 22219 W33

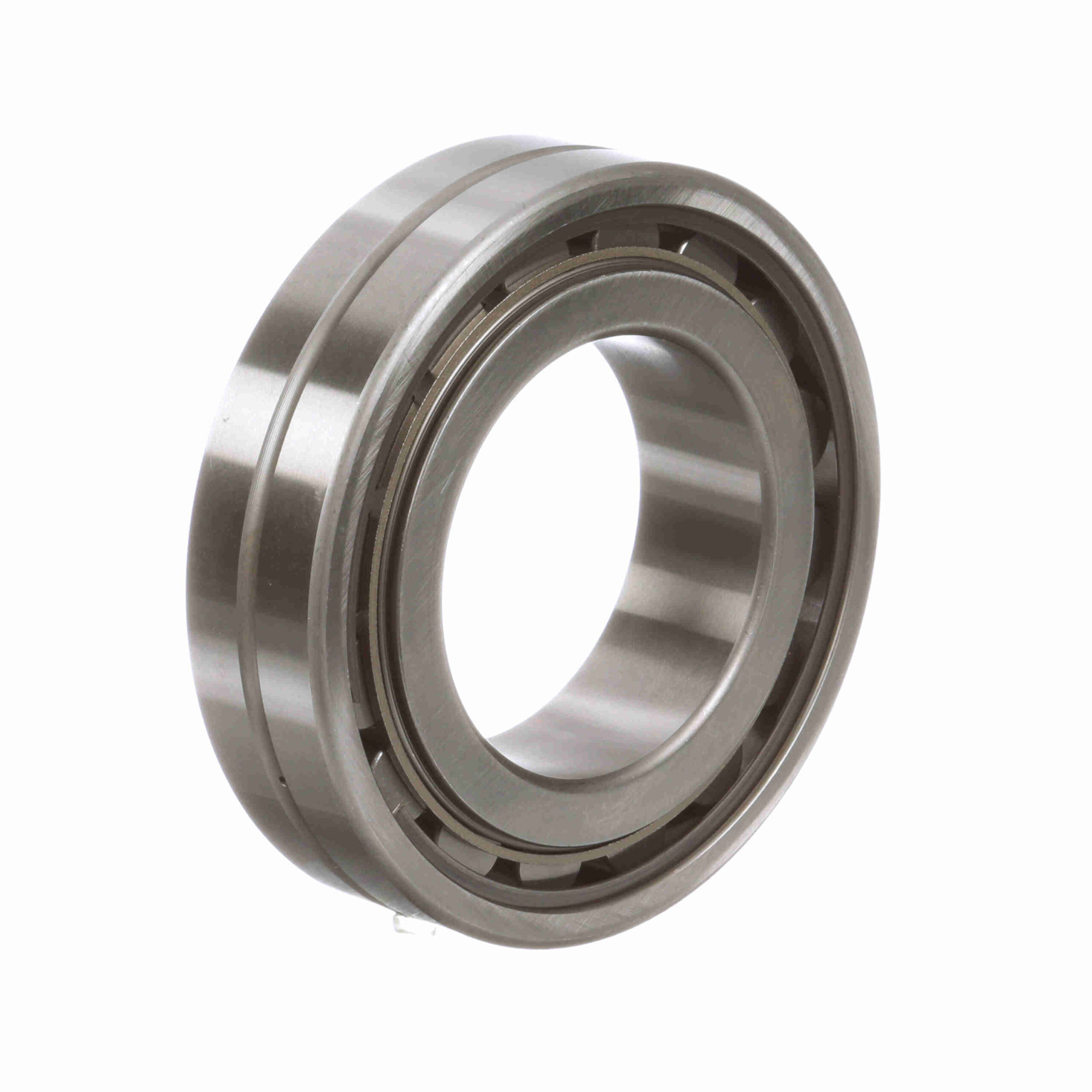

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Unsealed – SB 22219 W33
$689.38
Availability: 3 in stock
Availability: 3 in stock
| Seal Type: | Unsealed | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Bore Type: | Straight |
| Material: | 52100 Bearing Steel | Rolling Element: | Spherical Roller |
| Number of Rows: | 1 | Radial Clearance: | C0 |
| Misalignment: | Yes | Angular Misalignment: | 3° |
| Sealed: | None | Speed (Max) Oil (RPM): | 2, 650 rpm |
| Platform: | SPHERE-ROL® | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Grease (RPM): | 1, 325 rpm |
| Finish/Coating: | Uncoated | Outer Ring Type: | Not split |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | P0, ISO 15-2109 |
| Dynamic Load Rating (kN): | 317.6 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166006853 | Weight: | 9.20 LB |
| Packaged Length: | 7.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.25 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
