- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Lambda® seal on both sides
- Standard internal clearance
- Tapered bore
SB 22216K W33 YSS

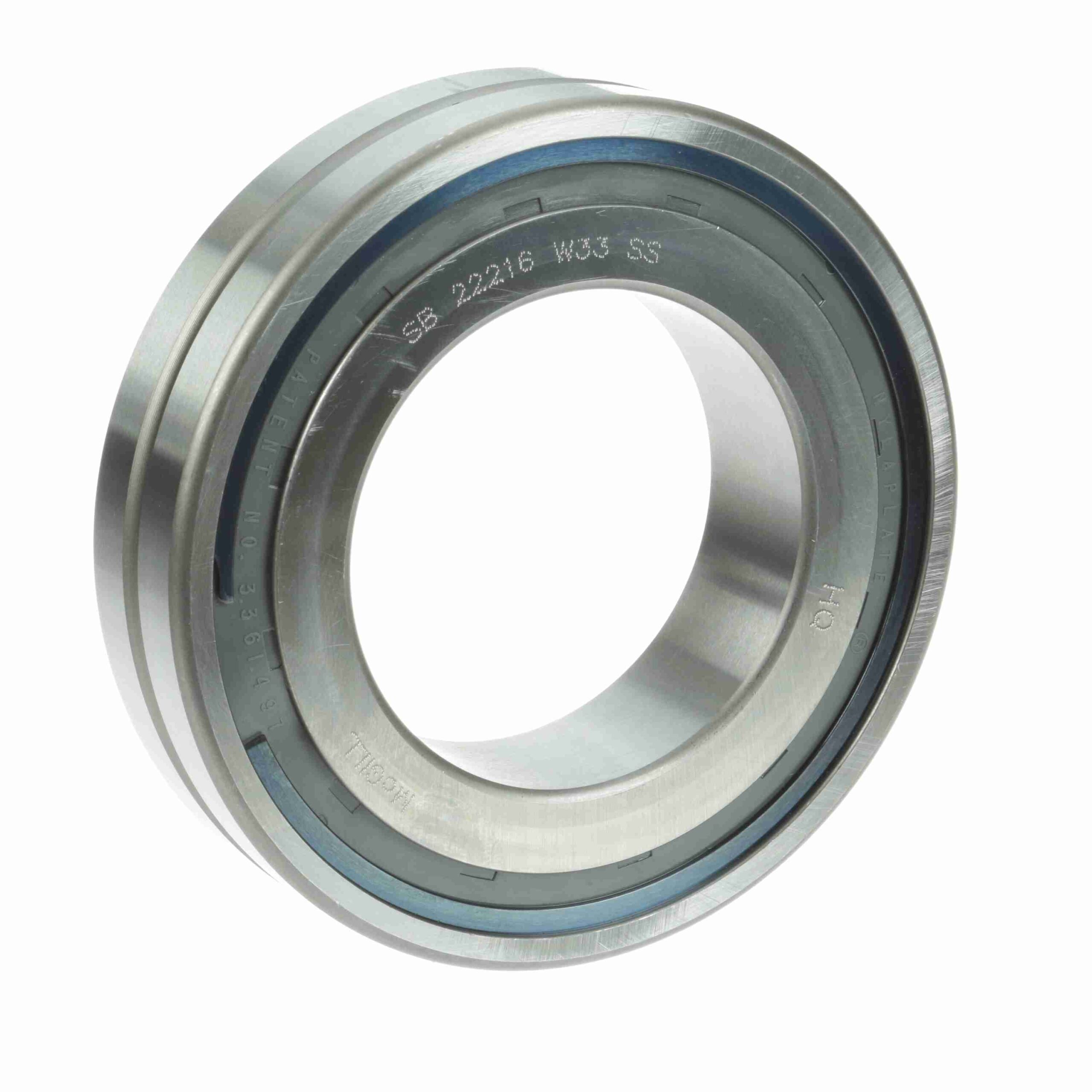

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Tapered Bore – Sealed – SB 22216K W33 YSS
$3,254.48
Out of stock
Out of stock
| Seal Type: | Double Seal | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Number of Rows: | 1 |
| Bore Type: | Tapered | Misalignment: | Yes |
| Radial Clearance: | C0 | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Angular Misalignment: | 1° |
| Platform: | SPHERE-ROL® | Speed (Max) Grease (RPM): | 1, 625 rpm |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Oil (RPM): | 3, 250 rpm |
| Precision Rating: | P0, ISO 15-2074 | Outer Ring Type: | Not split |
| Finish/Coating: | Uncoated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 190 kN | Mounting Method: | Adapter Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166006037 | Weight: | 4.60 LB |
| Packaged Length: | 5.69 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 5.69 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
