- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Lambda® seal on both sides
- Greater than standard internal clearance
- Tapered bore
SB 22213K C3 W33 YSS

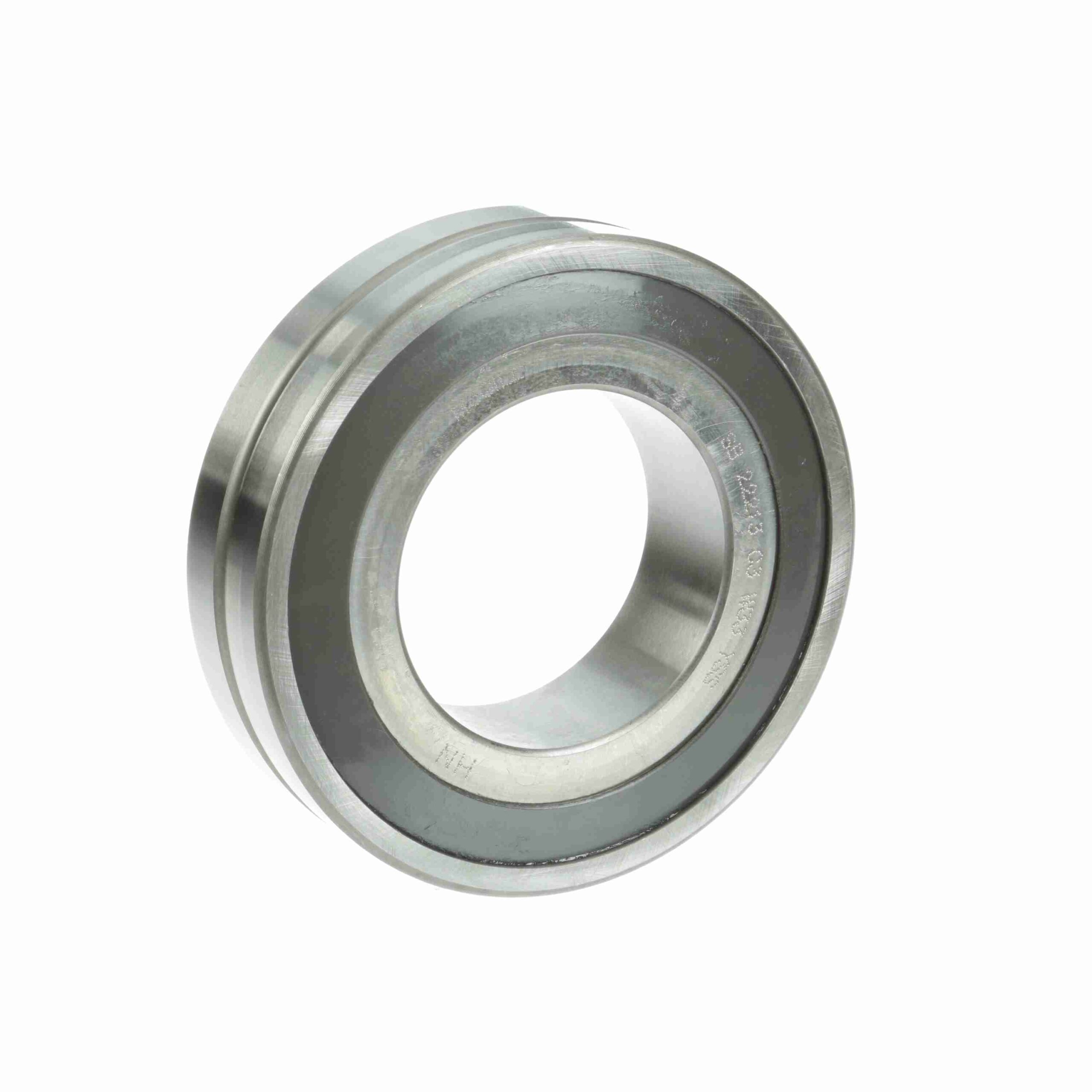

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Tapered Bore – Sealed – SB 22213K C3 W33 YSS
$1,947.03
Out of stock
Out of stock
| Seal Type: | Double Seal | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Bore Type: | Tapered |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Radial Clearance: | C3 | Angular Misalignment: | 1° |
| Number of Rows: | 1 | Material: | 52100 Bearing Steel |
| Platform: | SPHERE-ROL® | Speed (Max) Grease (RPM): | 1, 900 rpm |
| Speed (Max) Oil (RPM): | 3, 800 rpm | Duplexing: | No |
| Sealed: | Sealed - Both Sides | Full Complement/Caged: | Caged |
| Lubrication Hole Type: | Lubrication Groove & Hole | Finish/Coating: | Uncoated |
| Outer Ring Type: | Not split | Precision Rating: | P0, ISO 15-2018 |
| Dynamic Load Rating (kN): | 159 kN | Mounting Method: | Adapter Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166005276 | Weight: | 3.40 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 5.06 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
