- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Greater than standard internal clearance
SB 22211 C3 W33

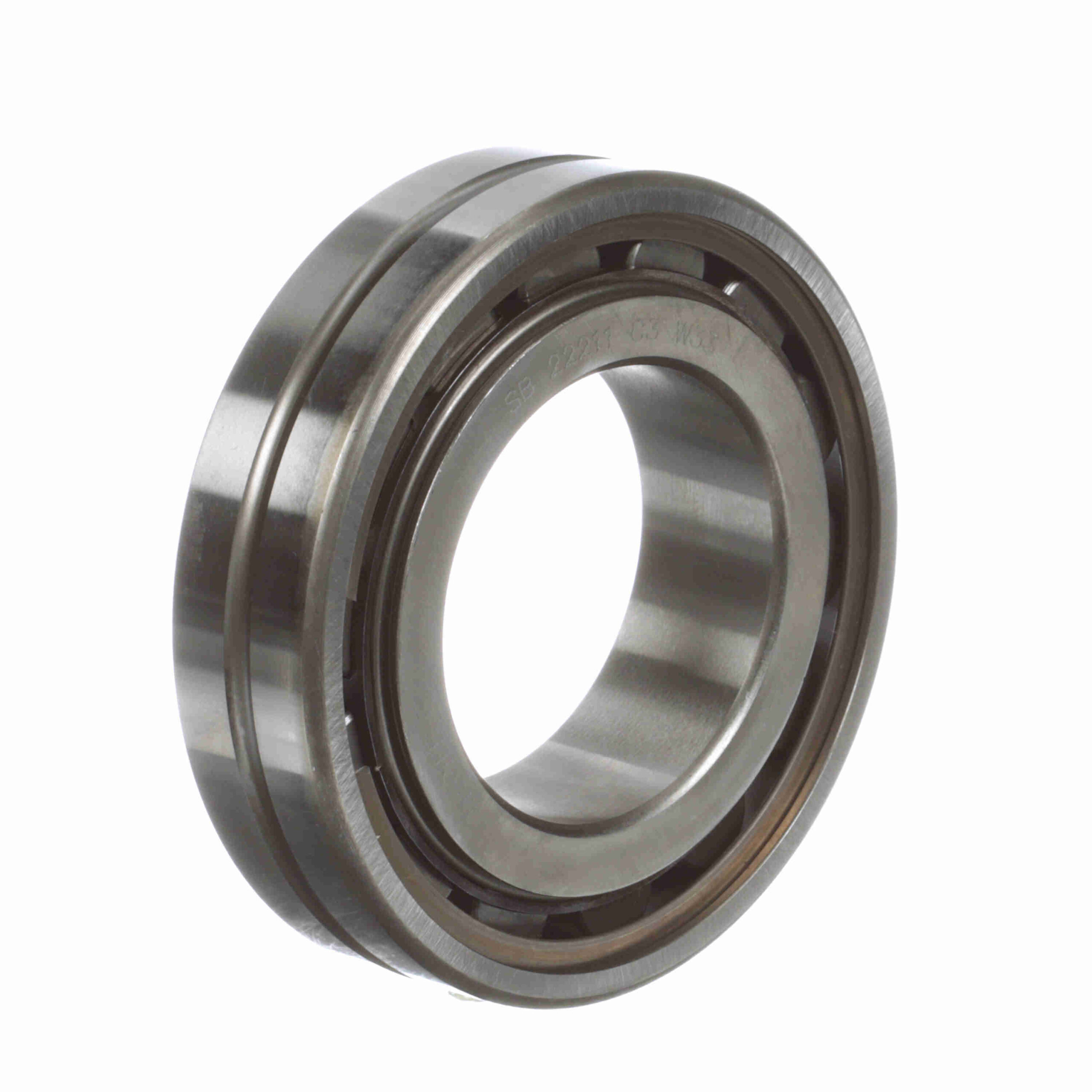

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Unsealed – SB 22211 C3 W33
$346.63
Out of stock
Out of stock
| Seal Type: | Unsealed | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Material: | 52100 Bearing Steel |
| Radial Clearance: | C3 | Misalignment: | Yes |
| Rolling Element: | Spherical Roller | Angular Misalignment: | 3° |
| Number of Rows: | 1 | Bore Type: | Straight |
| Platform: | SPHERE-ROL® | Duplexing: | No |
| Full Complement/Caged: | Caged | Speed (Max) Oil (RPM): | 4, 650 rpm |
| Speed (Max) Grease (RPM): | 1, 325 rpm | Sealed: | None |
| Finish/Coating: | Uncoated | Outer Ring Type: | Not split |
| Precision Rating: | P0, ISO 15-2057 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 103 kN | Mounting Method: | Shaft Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166004071 | Weight: | 1.90 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 1.38 Inches |
| Packaged Height: | 5.06 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
