- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Standard internal clearance
SB 22208 W33

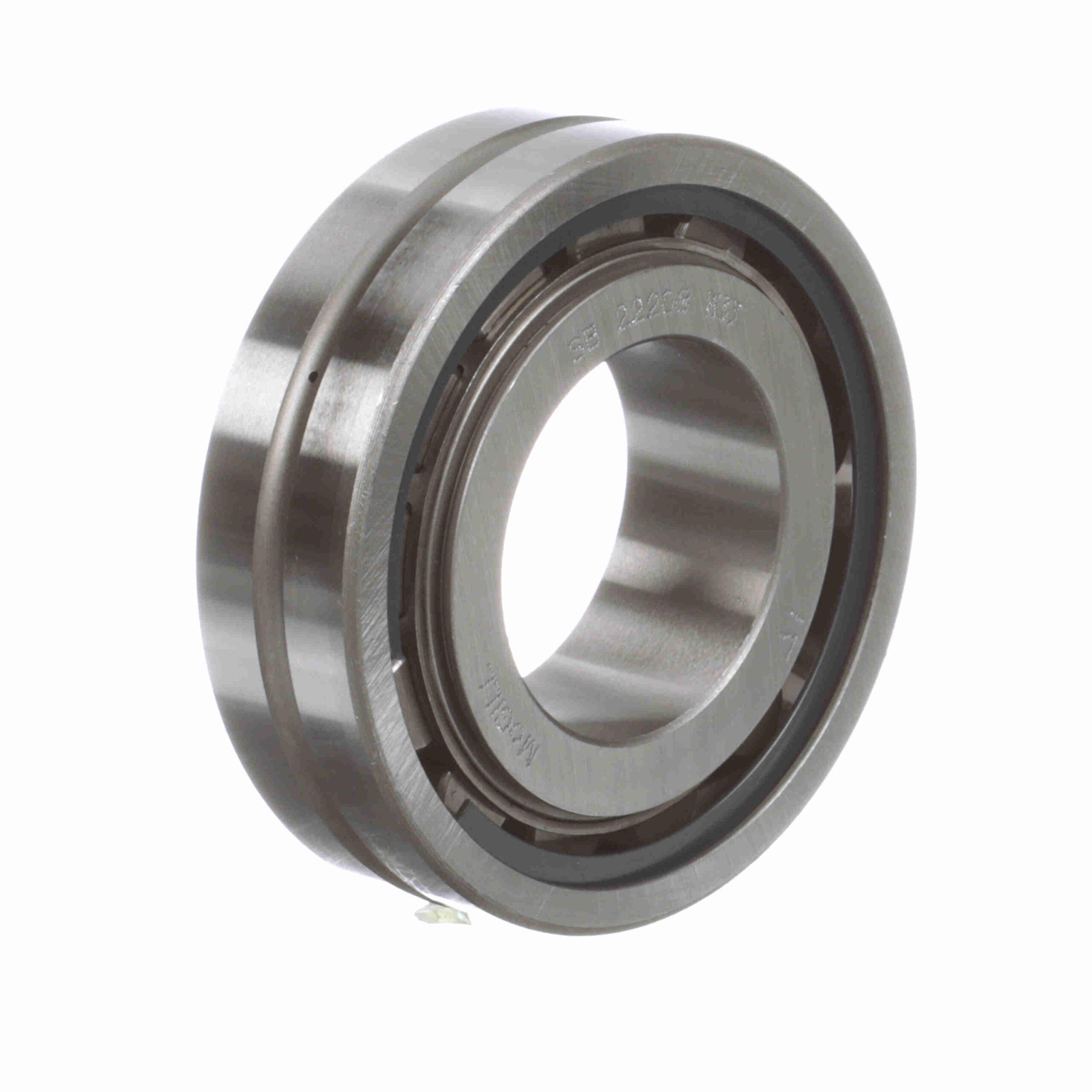

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Unsealed – SB 22208 W33
$259.06
Out of stock
Out of stock
| Seal Type: | Unsealed | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Material: | 52100 Bearing Steel |
| Misalignment: | Yes | Number of Rows: | 1 |
| Angular Misalignment: | 3° | Bore Type: | Straight |
| Rolling Element: | Spherical Roller | Radial Clearance: | C0 |
| Sealed: | None | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Grease (RPM): | 3, 000 rpm |
| Speed (Max) Oil (RPM): | 6, 000 rpm | Platform: | SPHERE-ROL® |
| Finish/Coating: | Uncoated | Precision Rating: | P0, ISO 15-2008 |
| Outer Ring Type: | Not Split | Lubrication Hole Type: | Lubrication Groove & Hole |
| Dynamic Load Rating (kN): | 75.3 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166002619 | Weight: | 1.20 LB |
| Packaged Length: | 3.63 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 3.66 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
