- 22200 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Lambda® seal on both sides
- Standard internal clearance
SB 22206 W33 YSS

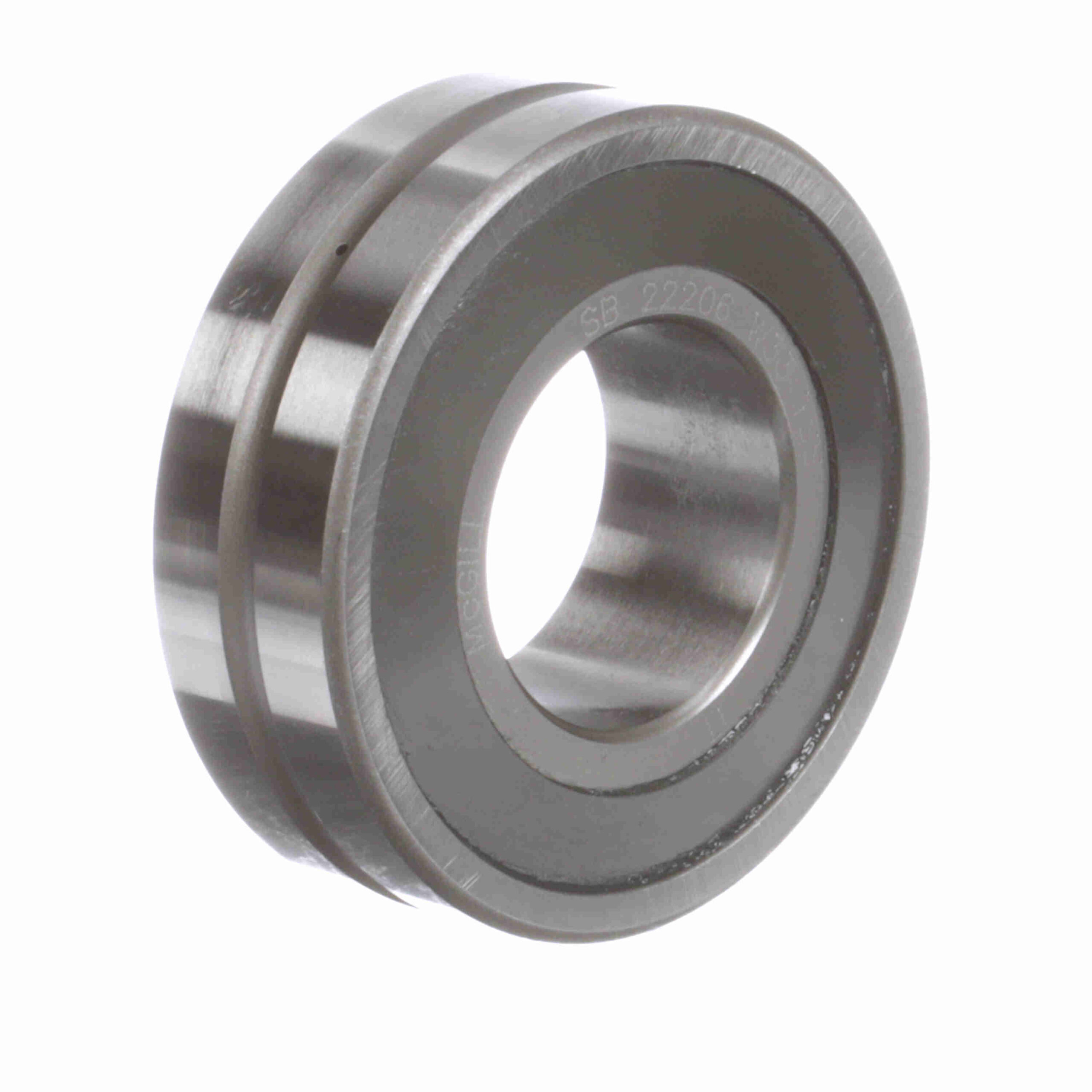

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22206 W33 YSS
$194.75
Availability: 9 in stock
Availability: 9 in stock
| Seal Type: | Double Seal | Series: | 22200 |
|---|---|---|---|
| Cage Material: | Steel | Rolling Element: | Spherical Roller |
| Material: | 52100 Bearing Steel | Number of Rows: | 1 |
| Angular Misalignment: | 1° | Bore Type: | Straight |
| Radial Clearance: | C0 | Misalignment: | Yes |
| Speed (Max) Oil (RPM): | 8, 100 rpm | Full Complement/Caged: | Caged |
| Platform: | SPHERE-ROL® | Duplexing: | No |
| Speed (Max) Grease (RPM): | 4, 050 rpm | Sealed: | Sealed - Both Sides |
| Outer Ring Type: | Not Split | Finish/Coating: | Uncoated |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | P0, ISO 15-2008 |
| Dynamic Load Rating (kN): | 51.5 kN | Mounting Method: | Shaft Mount |
| Maximum Operating Temperature (F): | 300 °F | Operating Temperature Range (F): | -30 to 300 °F °F |
| UPC: | 726166002015 | Weight: | 0.59 LB |
| Packaged Length: | 2.63 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
