- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S2 4 3/16

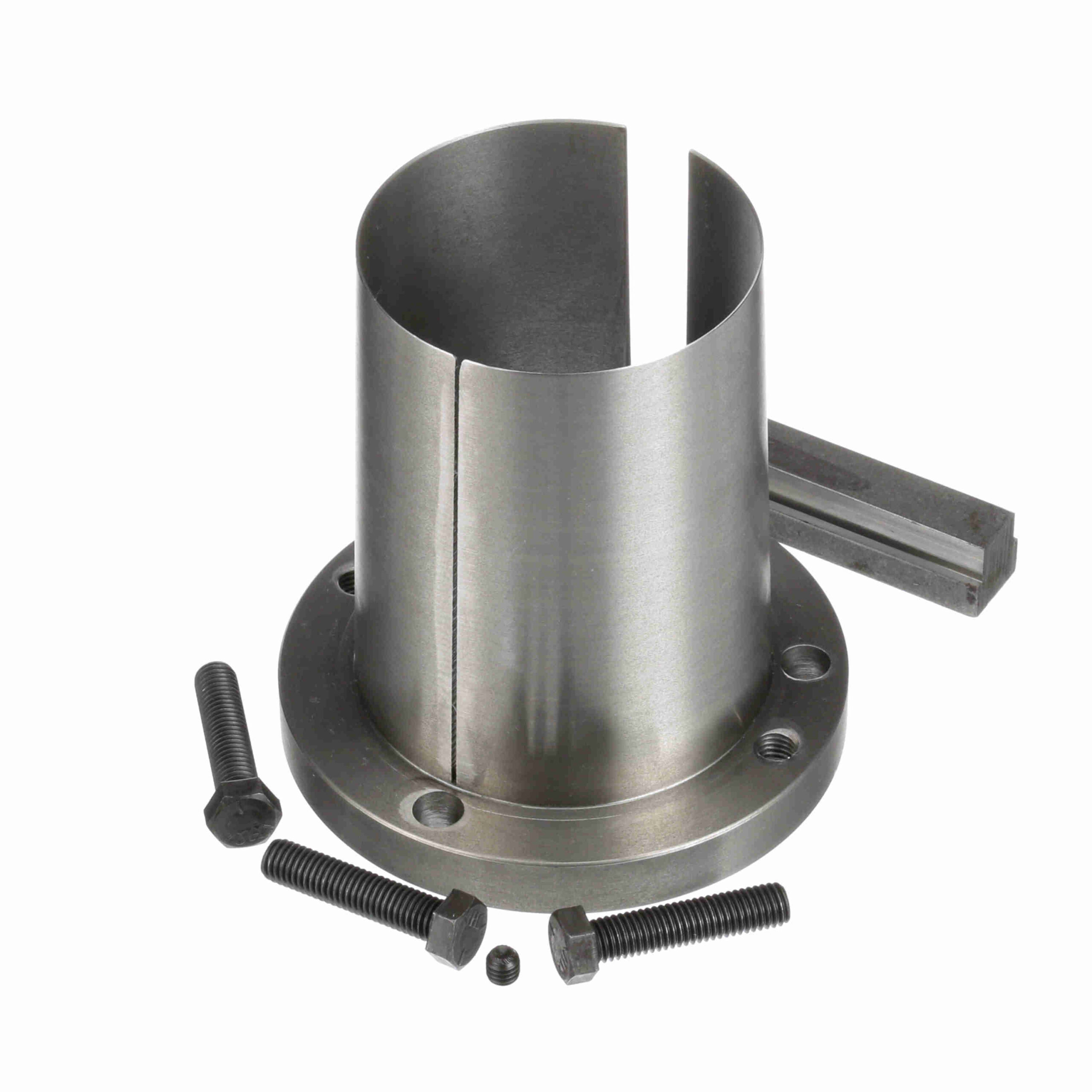

Browning Split Taper Bushing – Inch Bore Type – S2 4 3/16
$959.04
Out of stock
Out of stock
| Product Type: | Split Taper Bushing | Cap Screws (Size): | 1/2 x 2 1/4 |
|---|---|---|---|
| Wrench Torque (in-lb): | 840 | Length Through Bore (in): | 6.75 in |
| Total Length (in): | 6.75 in | Compatible Bore Size [Max] (in): | 4.1875 in |
| Bushing Type: | S2 | Material: | Sintered Steel or Ductile Iron |
| Outside Diameter (in): | 6.375 in | Model Name: | S1-S2_Type2_BushingMaster |
| Bore Size (in): | 4.1875 in | Keyseat: | 1 x 1/2 |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289211845 | Weight: | 8.28 LB |
| Packaged Length: | 6.5 Inches | Packaged Width: | 6.75 Inches |
| Packaged Height: | 6.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
