- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S2 3 7/16

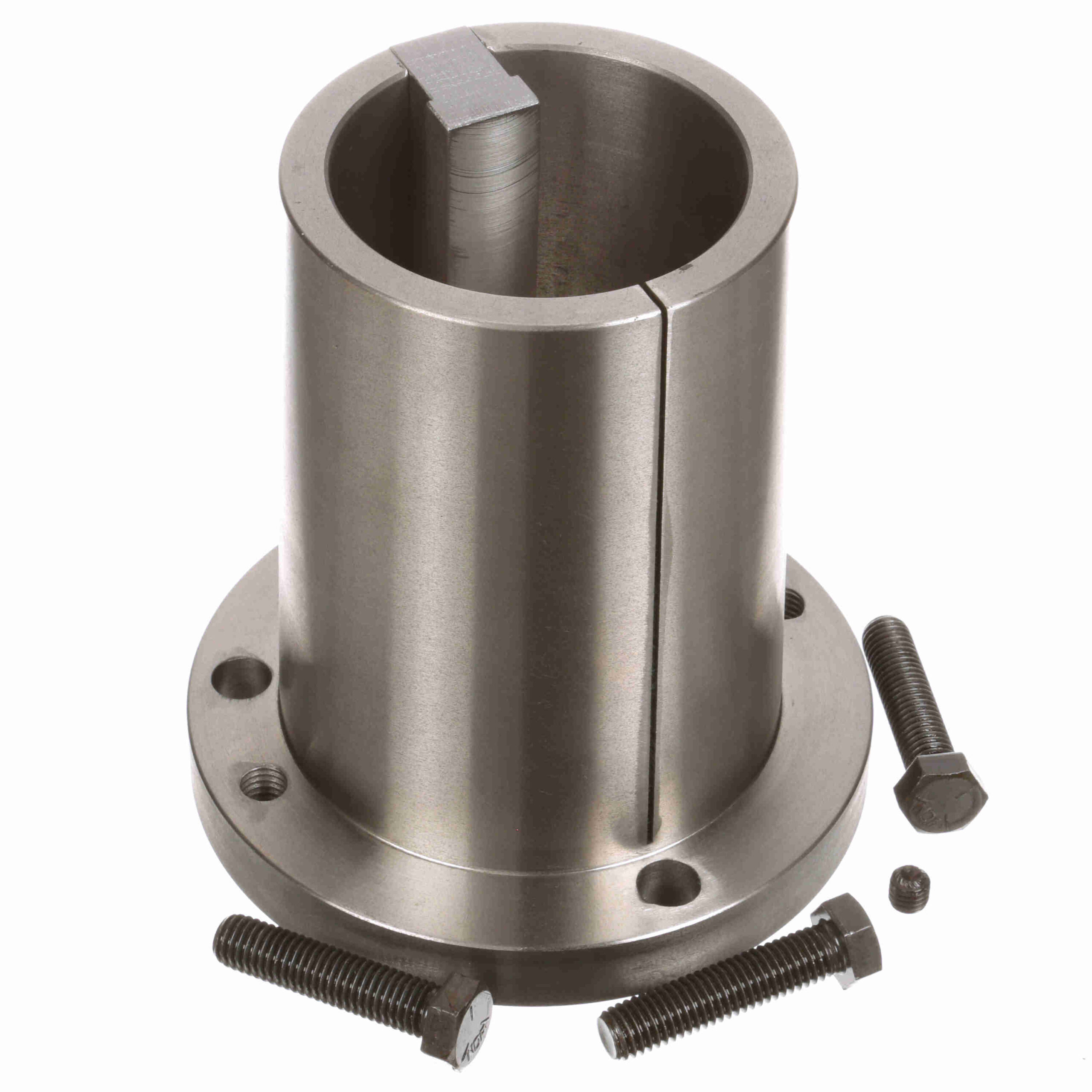

Browning Split Taper Bushing – Inch Bore Type – S2 3 7/16
$379.50
Out of stock
Out of stock
| Wrench Torque (in-lb): | 840 | Model Name: | S1-S2_Type2_BushingMaster |
|---|---|---|---|
| Cap Screws (Size): | 1/2 x 2 1/4 | Material: | Sintered Steel or Ductile Iron |
| Compatible Bore Size [Max] (in): | 3.4375 in | Product Type: | Split Taper Bushing |
| Outside Diameter (in): | 6.375 in | Total Length (in): | 6.75 in |
| Length Through Bore (in): | 6.75 in | Bushing Type: | S2 |
| Bore Size (in): | 3.4375 in | Keyseat: | 7/8 x 7/16 |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289271771 | Weight: | 15.80 LB |
| Packaged Length: | 7.6 Inches | Packaged Width: | 6.8 Inches |
| Packaged Height: | 6.8 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
