- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S2 3 3/16

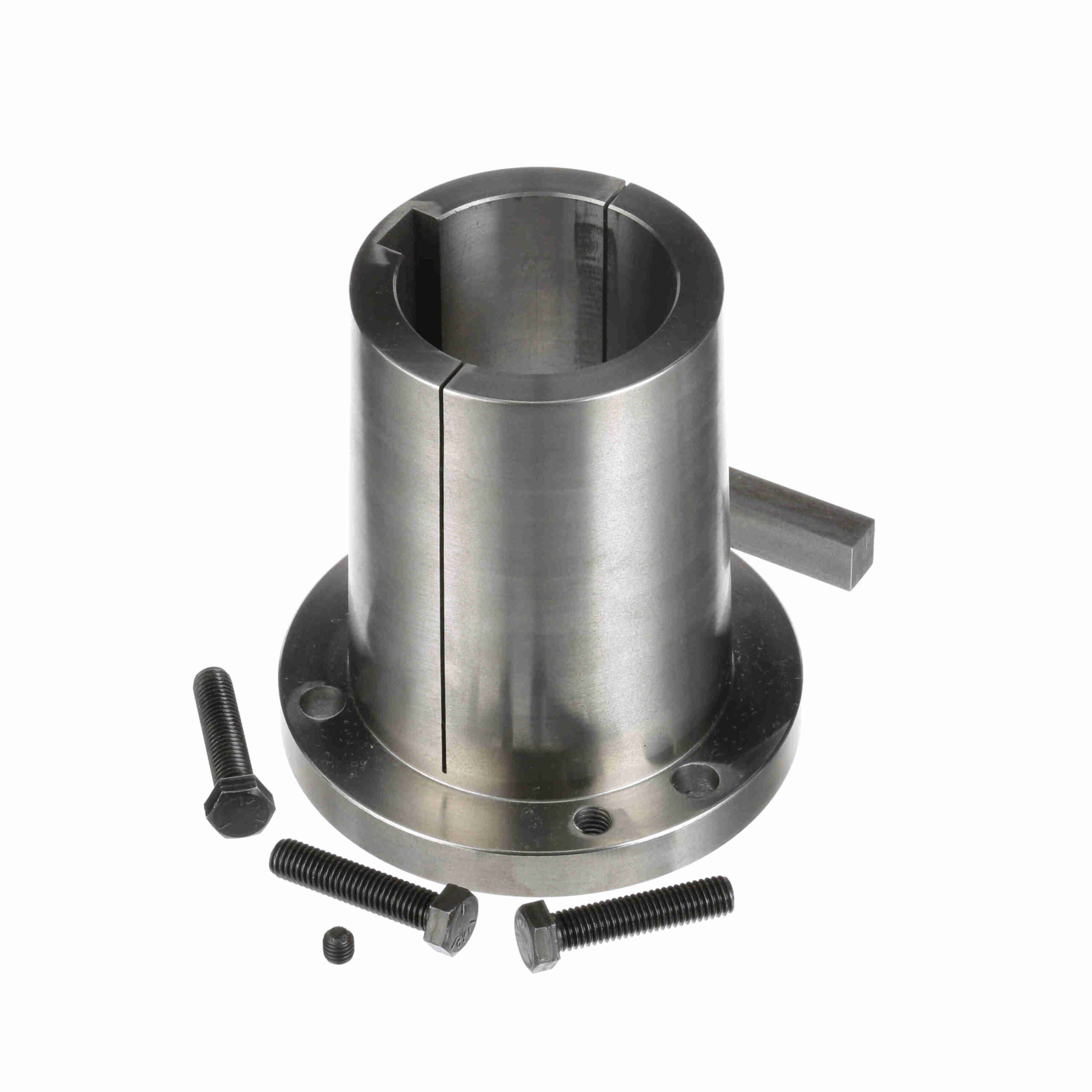

Browning Split Taper Bushing – Inch Bore Type – S2 3 3/16
$490.72
Out of stock
Out of stock
| Bushing Type: | S2 | Length Through Bore (in): | 6.75 in |
|---|---|---|---|
| Total Length (in): | 6.75 in | Wrench Torque (in-lb): | 840 |
| Bore Size (in): | 3.1875 in | Model Name: | S1-S2_Type1_BushingMaster |
| Compatible Bore Size [Max] (in): | 3.1875 in | Cap Screws (Size): | 1/2 x 2 1/4 |
| Outside Diameter (in): | 6.375 in | Material: | Sintered Steel or Ductile Iron |
| Keyseat: | 3/4 x 3/8 | Product Type: | Split Taper Bushing |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289161690 | Weight: | 16.52 LB |
| Packaged Length: | 6.9 Inches | Packaged Width: | 7.6 Inches |
| Packaged Height: | 7.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
