- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S2 2 3/16

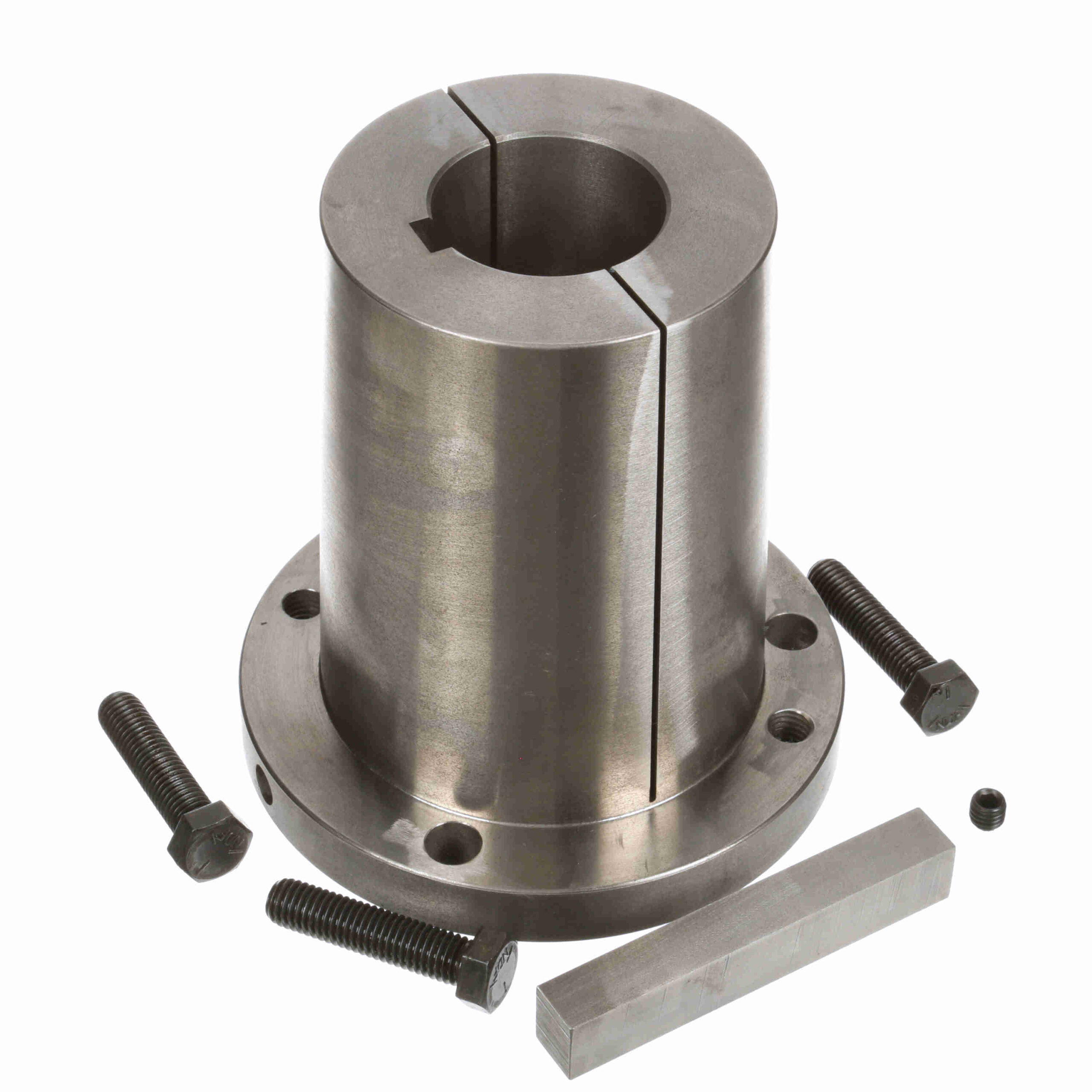

Browning Split Taper Bushing – Inch Bore Type – S2 2 3/16
Out of stock
| Total Length (in): | 6.75 in | Length Through Bore (in): | 6.75 in |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 2.1875 in | Cap Screws (Size): | 1/2 x 2 1/4 |
| Keyseat: | 1/2 x 1/4 | Product Type: | Split Taper Bushing |
| Bushing Type: | S2 | Model Name: | S1-S2_Type1_BushingMaster |
| Outside Diameter (in): | 6.375 in | Wrench Torque (in-lb): | 840 |
| Material: | Sintered Steel or Ductile Iron | Bore Size (in): | 2.1875 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289281558 | Weight: | 23.92 LB |
| Packaged Length: | 7.1 Inches | Packaged Width: | 7.7 Inches |
| Packaged Height: | 7.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
