- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S1 4 1/4

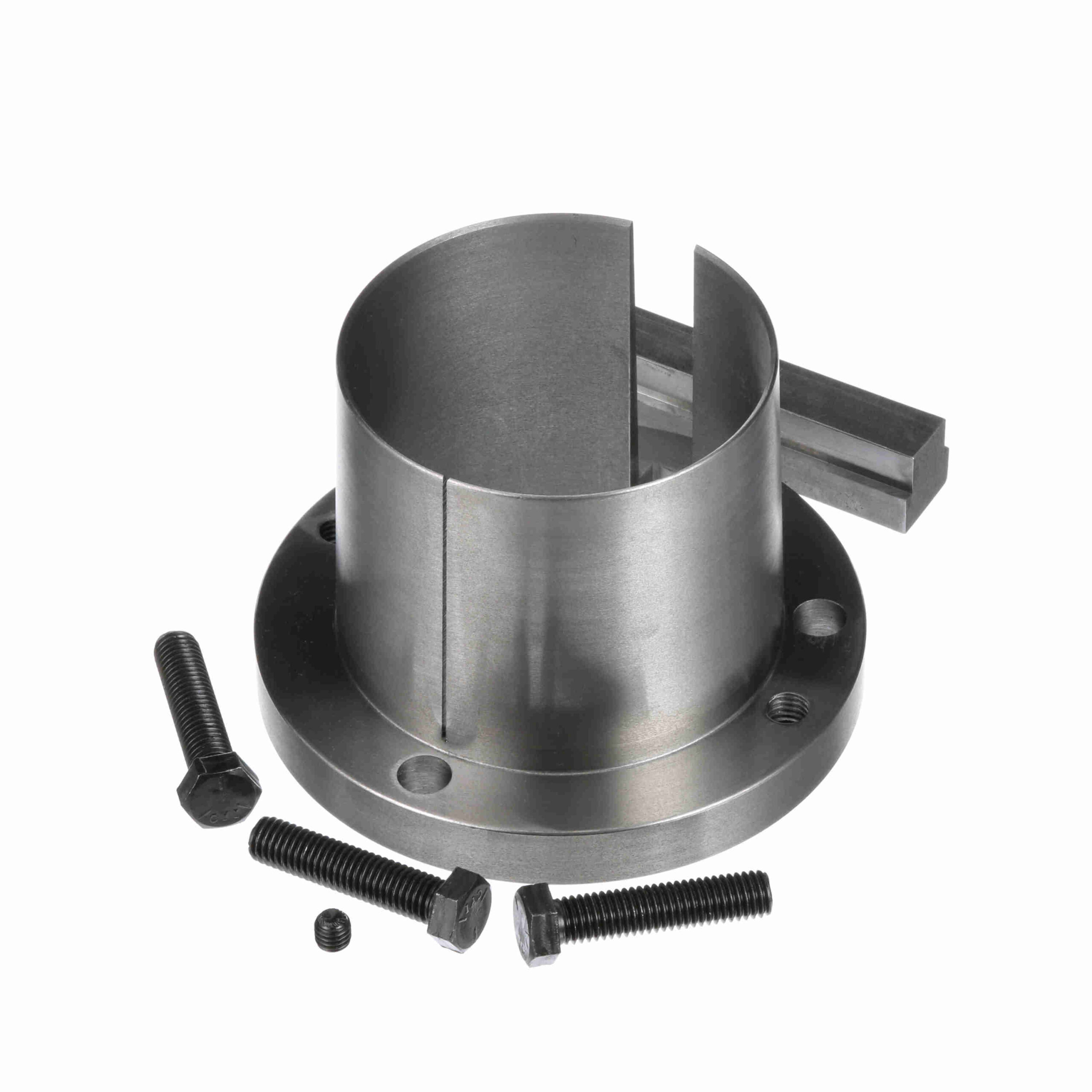

Browning Split Taper Bushing – Inch Bore Type – S1 4 1/4
Out of stock
| Total Length (in): | 4.375 in | Product Type: | Split Taper Bushing |
|---|---|---|---|
| Bushing Type: | S1 | Material: | Sintered Steel or Ductile Iron |
| Keyseat: | 1 x 1/2 | Wrench Torque (in-lb): | 840 |
| Model Name: | S1-S2_Type2_BushingMaster | Bore Size (in): | 4.25 in |
| Length Through Bore (in): | 4.375 in | Cap Screws (Size): | 1/2 x 2 1/4 |
| Outside Diameter (in): | 6.375 in | Compatible Bore Size [Max] (in): | 4.25 in |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289141517 | Weight: | 6.52 LB |
| Packaged Length: | 7 Inches | Packaged Width: | 7.2 Inches |
| Packaged Height: | 4.8 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
