- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
S1 3 11/16

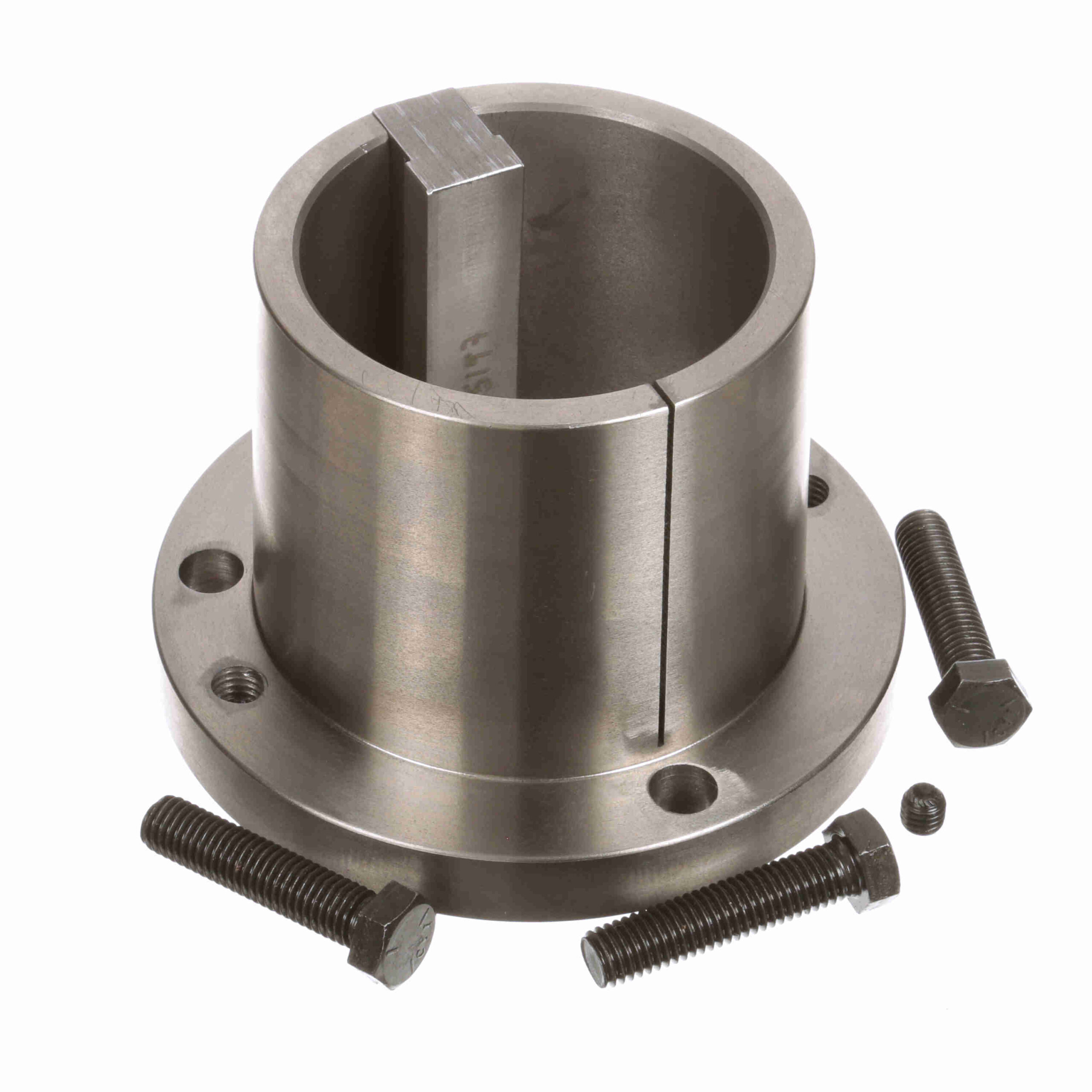

Browning Split Taper Bushing – Inch Bore Type – S1 3 11/16
$575.43
Out of stock
Out of stock
| Bore Size (in): | 3.6875 in | Wrench Torque (in-lb): | 840 |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 3.6875 in | Model Name: | S1-S2_Type2_BushingMaster |
| Cap Screws (Size): | 1/2 x 2 1/4 | Bushing Type: | S1 |
| Product Type: | Split Taper Bushing | Outside Diameter (in): | 6.375 in |
| Length Through Bore (in): | 4.375 in | Total Length (in): | 4.375 in |
| Material: | Sintered Steel or Ductile Iron | Keyseat: | 7/8 x 7/16 |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289201402 | Weight: | 10.32 LB |
| Packaged Length: | 7.1 Inches | Packaged Width: | 7.1 Inches |
| Packaged Height: | 4.9 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
