- Custom Sealmaster® mounted bearing assembly with application specific features
S-361-ML20

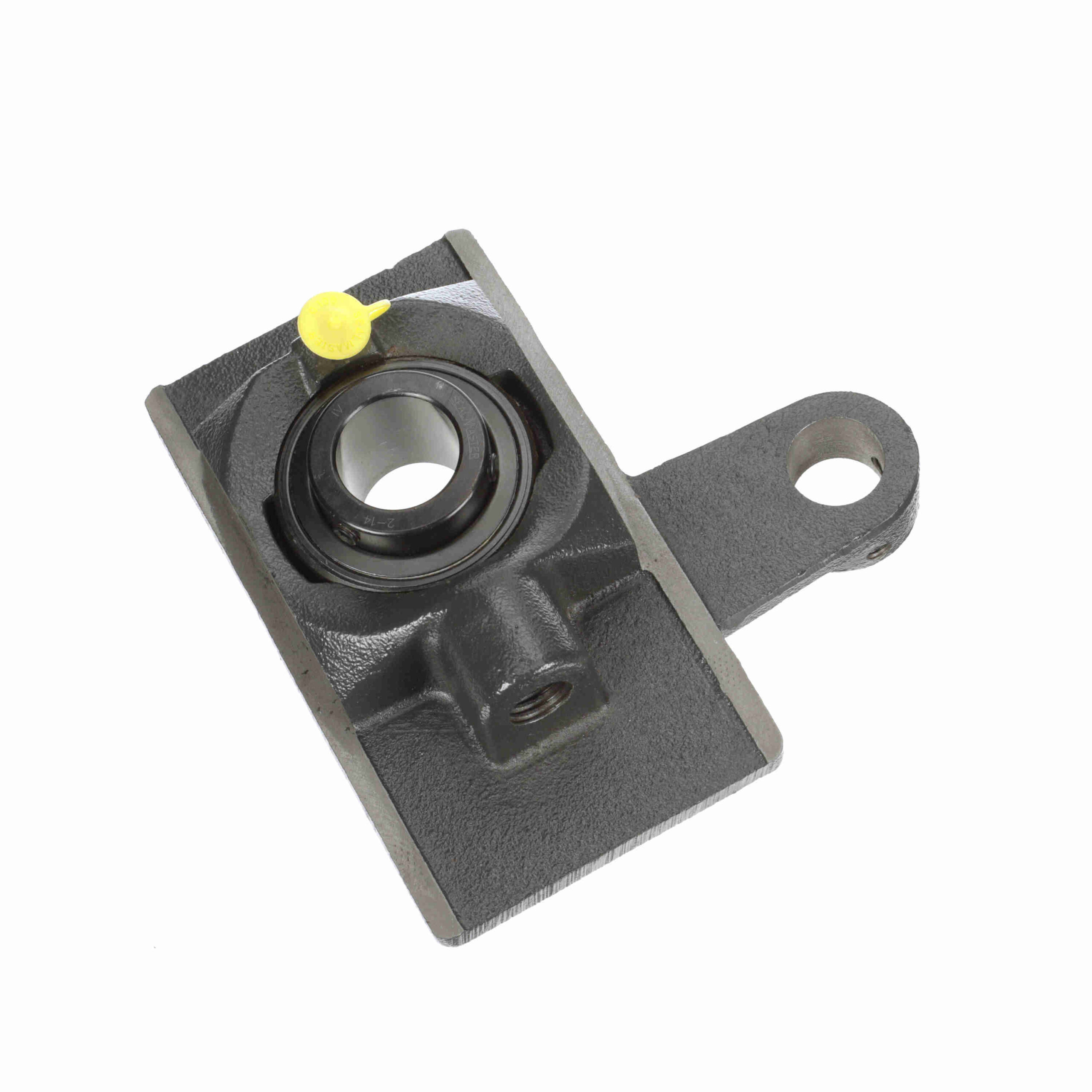

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Double Collar Mount Lock – S-361-ML20
$984.59
Availability: 13 in stock
Availability: 13 in stock
| Bore Shape: | Straight | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Measure Units: | Inch | Housing Construction: | One Piece |
| Misalignment: | ±3.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Housing Style: | Take-up Blocks |
| Duty/Series: | Standard Duty | Lubrication Type: | Lithium, EP, NLGI#2 |
| Locking Type: | Setscrew | Maximum Speed (RPM): | 6500 rpm |
| Retainer Type: | Land Riding Retainer | Housing Type: | Take-Up Block, Wide Slot |
| Fixed vs. Expansion: | Fixed | Housing Material: | Cast Iron |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | 41671 | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461000000 | Weight: | 8.15 LB |
| Packaged Length: | 7.5 Inches | Packaged Width: | 7.38 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
