- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Fluoropolymer-coated 4-bolt split cast iron housing for improved corrosion resistance
- USDA H-1 approved Food-grade grease
RPBA 408-C4 CR

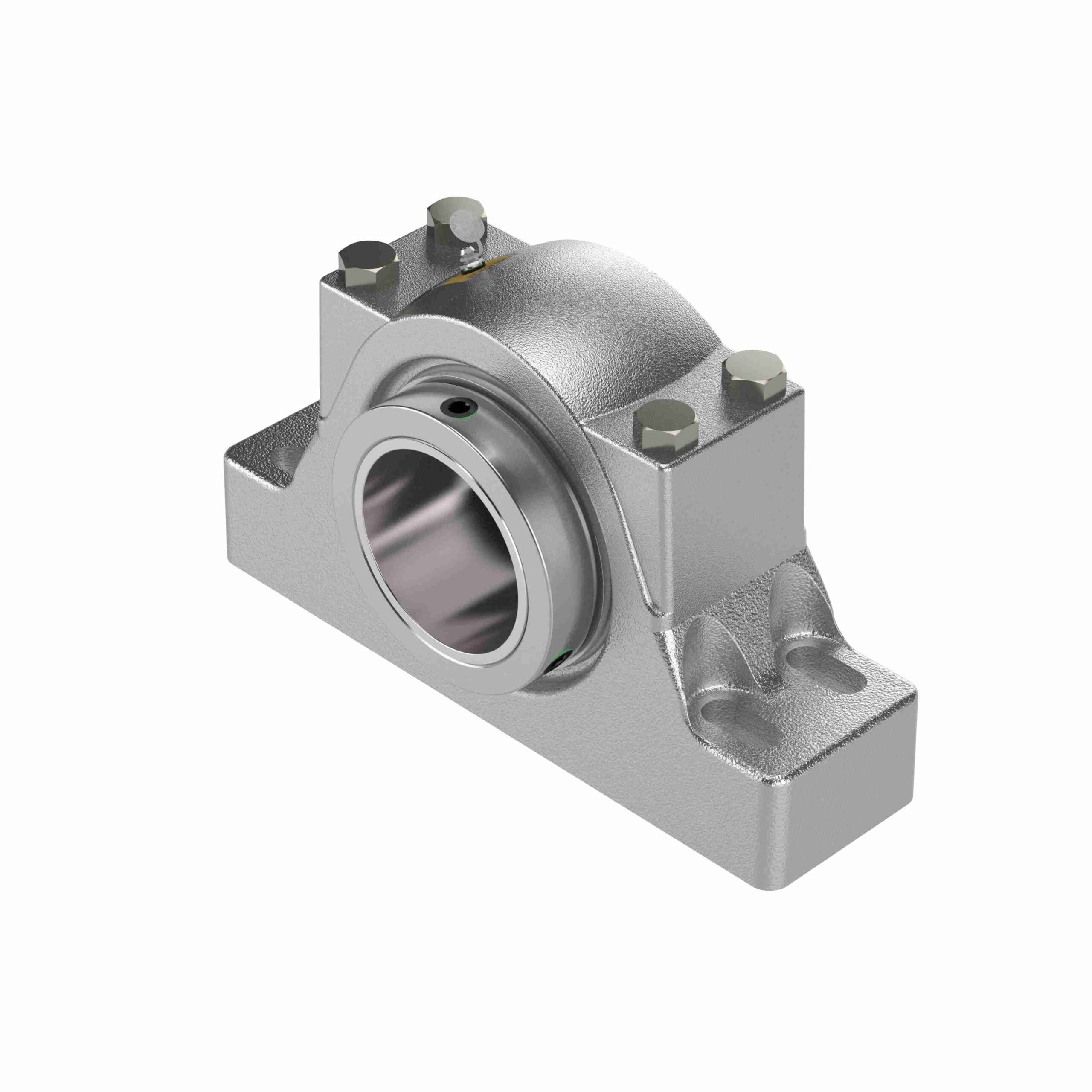

Sealmaster Mounted Flouropolymer Coated Cast Iron Four Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Collar Mount Lock – Corrosion Resistant – RPBA 408-C4 CR
$7,180.27
Out of stock
Out of stock
| Measure Units: | Inch | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Expansion: | No | Rolling Element: | Tapered Roller |
| Insert Material: | 52100 Bearing Steel | Housing Material: | Flouropolymer Coated Cast Iron |
| Housing Type: | Pillow Block, Four Bolt | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Seal Type: | Single Lip Contact Seal | Housing Base: | Solid |
| Housing Construction: | Split Two Piece | Locking Type: | Collar Mount |
| Insert No.: | RCIA-408C FG1 | Misalignment: | ±3.0° Misalignment - Static Only |
| Speed (Max): | 1250 | Duty Series: | Standard |
| Internal Clearance: | Standard | Lubrication: | Lithium; EP; NLGI#2 |
| Relubricatable: | Yes | Bore Shape: | Straight |
| Radial Dynamic Load Capacity (lb): | 25, 750 | Retainer Material: | Steel |
| Platform: | CR Series | Options: | Corrosion Resistant |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Housing Color: | Silver/Gray | End Cap: | No |
| Series: | RPBA | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662461289020 | Weight: | 95.60 LB |
| Packaged Length: | 16.5 Inches | Packaged Width: | 6.75 Inches |
| Packaged Height: | 9.63 Inches | HTC: | 8483.20.8080 |
| Country of Origin: | United States of America |
