- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Single-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
RPBA 207-2

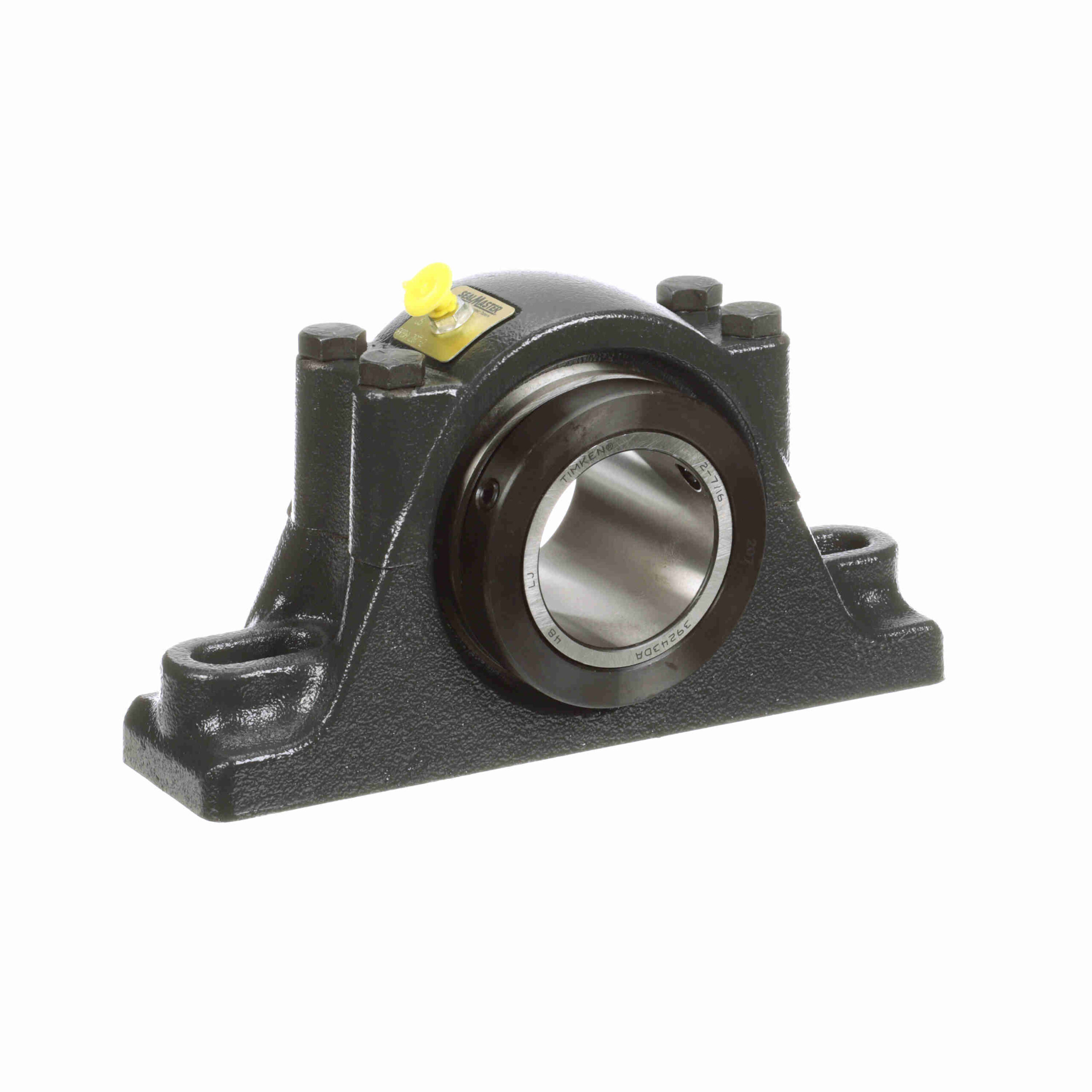

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Collar Mount Lock – RPBA 207-2
$721.49
Availability: 3 in stock
Availability: 3 in stock
| Seal Type: | Felt Labyrinth Seal | Housing Base: | Solid |
|---|---|---|---|
| Housing Type: | Pillow Block; Two Bolt | Maximum Operating Temperature: | 220 °F |
| Insert Material: | 52100 Bearing Steel | Rolling Element: | Tapered Roller |
| Measure Units: | Inch | Housing Material: | Cast Iron |
| Expansion: | No | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Housing Construction: | Split Two Piece | Relubricatable: | Yes |
| Misalignment: | ±3.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 9, 030 |
| Insert No.: | RCIA-207 | Duty Series: | Standard |
| Internal Clearance: | Standard | Lubrication: | Lithium; EP; NLGI#2 |
| Locking Type: | Collar Mount | Speed (Max): | 2000 |
| Bore Shape: | Straight | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | End Cap: | No |
| Retainer Material: | Steel | Platform: | RPB Series |
| Bearing Insert Coating: | Uncoated | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Series: | RPBA |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288483090 |
| Weight: | 20.70 LB | Packaged Length: | 10.5 Inches |
| Packaged Width: | 5.88 Inches | Packaged Height: | 4.13 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
