- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted contact flinger seal
- Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Fluoropolymer-coated 4-bolt split cast iron housing for improved corrosion resistance
- USDA H-1 approved Food-grade grease

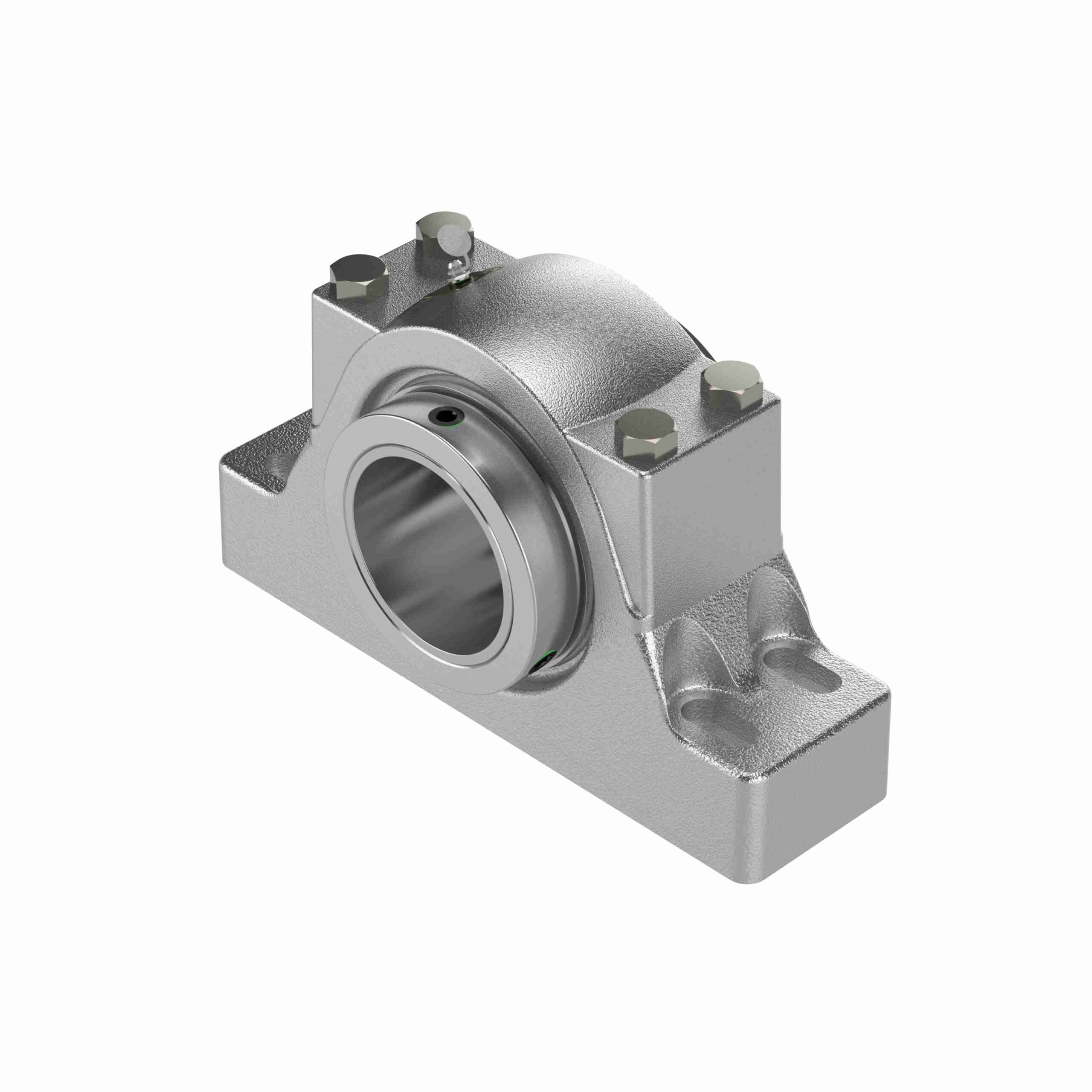

RPB 500-C4 CR
Sealmaster Mounted Flouropolymer Coated Cast Iron Four Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – Corrosion Resistant – RPB 500-C4 CR
$9,570.28
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel | Housing Type: | Pillow Block, Four Bolt |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Housing Base: | Solid |
| Seal Type: | Single Lip Contact Seal | Measure Units: | Inch |
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Expansion: | No |
| Rolling Element: | Tapered Roller | Housing Material: | Flouropolymer Coated Cast Iron |
| Lubrication: | Lithium; EP; NLGI#2 | Misalignment: | ±3.0° Misalignment - Static Only |
| Housing Construction: | Split Two Piece | Internal Clearance: | Standard |
| Relubricatable: | Yes | Speed (Max): | 1000 |
| Insert No.: | RCI-500C FG1 | Duty Series: | Standard |
| Radial Dynamic Load Capacity (lb): | 35, 520 | Locking Type: | Double Collar Mount |
| Bore Shape: | Straight | Retainer Material: | Steel |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Platform: | CR Series |
| Bearing Insert Coating: | Uncoated | Housing Color: | Silver/Gray |
| Options: | Corrosion Resistant | End Cap: | No |
| Series: | RPB | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662288745631 | Weight: | 143.60 LB |
| Packaged Length: | 18.75 Inches | Packaged Width: | 7.5 Inches |
| Packaged Height: | 11 Inches | HTC: | 8483.20.8080 |
| Country of Origin: | United States of America |
