- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 4-bolt split cast iron housing
RPB 400-4

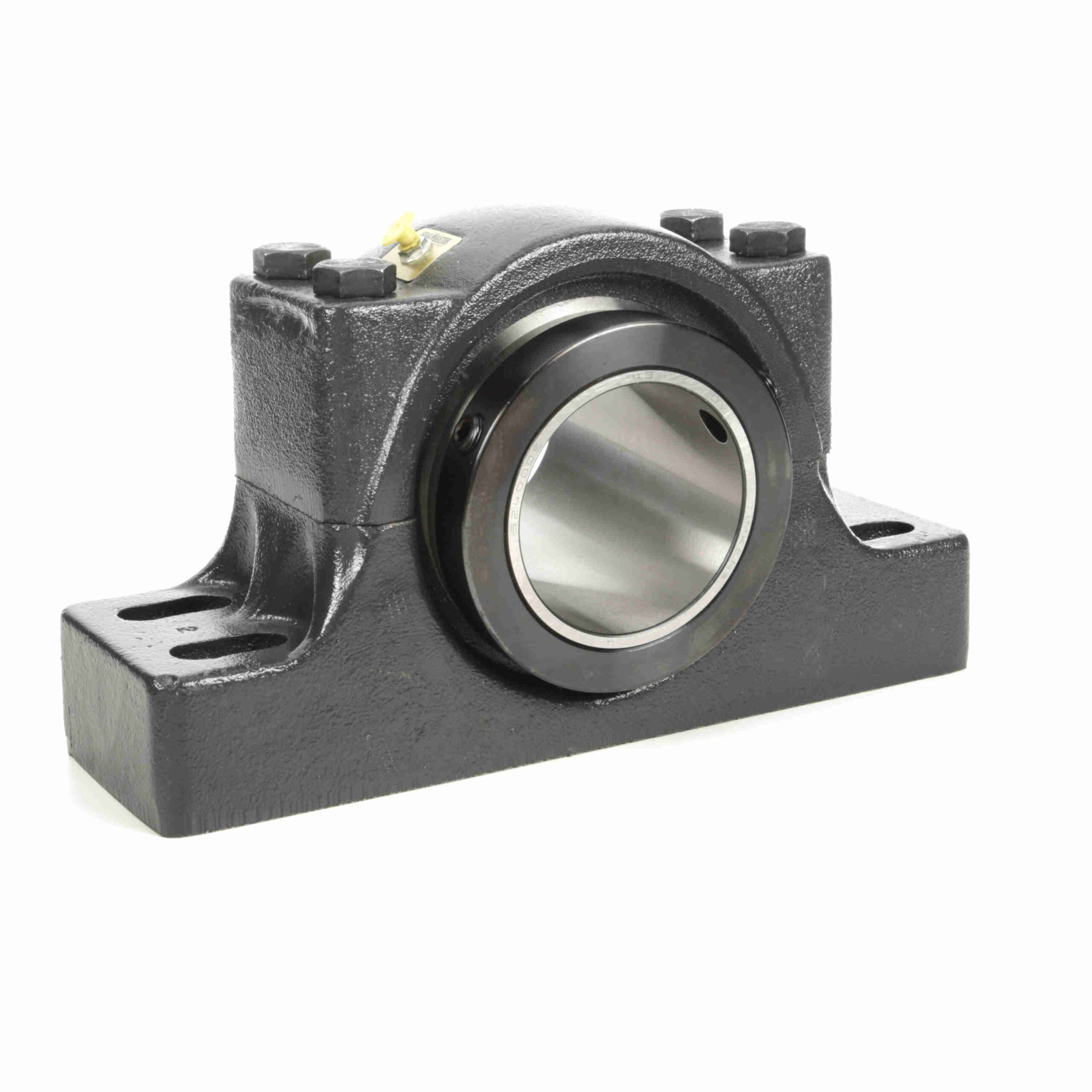

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RPB 400-4
$2,280.71
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Measure Units: | Inch |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Housing Base: | Solid |
| Seal Type: | Felt Labyrinth Seal | Rolling Element: | Tapered Roller |
| Insert Material: | 52100 Bearing Steel | Housing Type: | Pillow Block; Four Bolt |
| Expansion: | No | Housing Material: | Cast Iron |
| Housing Construction: | Split Two Piece | Radial Dynamic Load Capacity (lb): | 20, 980 |
| Speed (Max): | 1250 | Relubricatable: | Yes |
| Lubrication: | Lithium; EP; NLGI#2 | Duty Series: | Standard |
| Internal Clearance: | Standard | Misalignment: | ±3.0° Misalignment - Static Only |
| Bore Shape: | Straight | Insert No.: | RCI-400 |
| Locking Type: | Double Collar Mount | Replaceable Insert: | Yes |
| Housing Color: | Gray | Platform: | RPB Series |
| End Cap: | No | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Retainer Material: | Steel |
| Bearing Insert Coating: | Uncoated | Series: | RPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288480136 |
| Weight: | 76.90 LB | Packaged Length: | 16.5 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 9.63 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
