- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
RPB 300-2

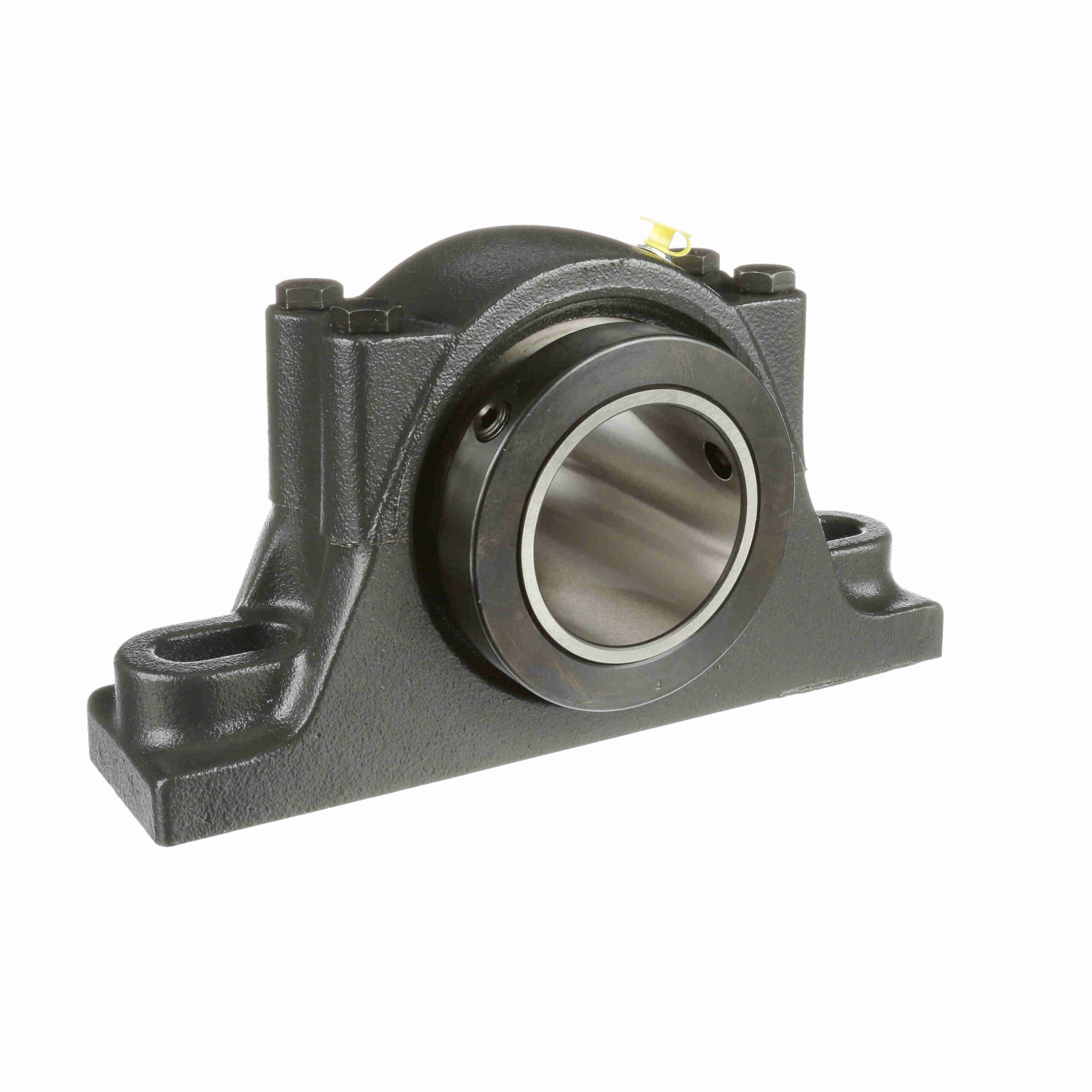

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RPB 300-2
$1,061.63
Availability: 1 in stock
Availability: 1 in stock
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Insert Material: | 52100 Bearing Steel |
| Expansion: | No | Housing Material: | Cast Iron |
| Measure Units: | Inch | Rolling Element: | Tapered Roller |
| Housing Type: | Pillow Block; Two Bolt | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Housing Construction: | Split Two Piece | Internal Clearance: | Standard |
| Misalignment: | ±3.0° Misalignment - Static Only | Lubrication: | Lithium; EP; NLGI#2 |
| Bore Shape: | Straight | Speed (Max): | 1750 |
| Locking Type: | Double Collar Mount | Insert No.: | RCI-300 |
| Radial Dynamic Load Capacity (lb): | 9, 630 | Relubricatable: | Yes |
| Duty Series: | Standard | Outer Ring Land Profile: | Standard |
| Platform: | RPB Series | Retainer Material: | Steel |
| Misalignment Type: | Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Uncoated |
| Housing Color: | Gray | Series: | RPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288480082 |
| Weight: | 28.66 LB | Packaged Length: | 12.13 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 4.63 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
