- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing

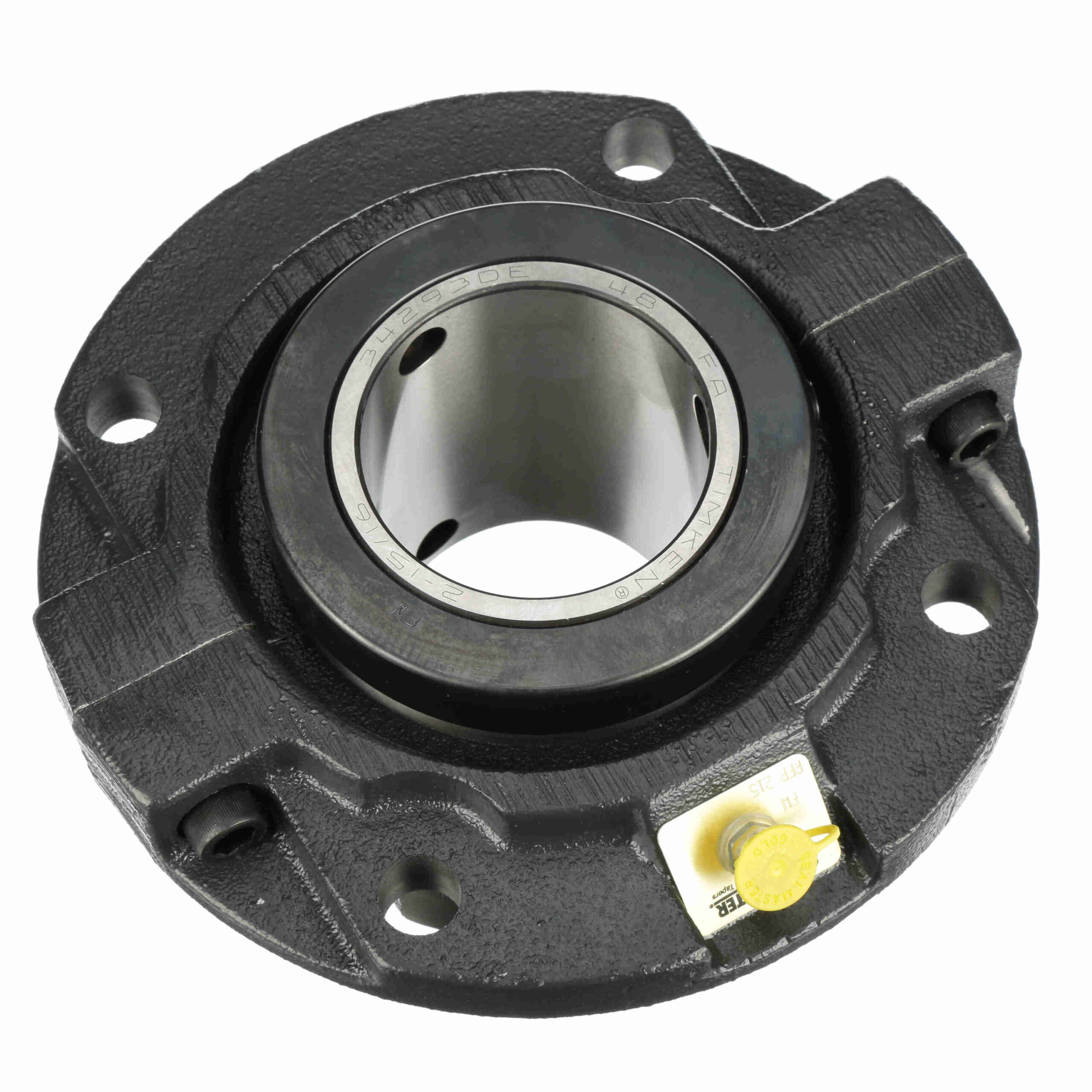

RFP 215
Sealmaster Mounted Cast Iron Piloted Flange Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RFP 215
$1,167.99
Availability: 3 in stock
Availability: 3 in stock
| Bore Shape: | Straight | Rolling Element: | Tapered Roller |
|---|---|---|---|
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Flange; Piloted | Measure Units: | Inch |
| Expansion: | Non-Expansion Bearing (Fixed) | Insert Material: | 52100 Bearing Steel |
| Seal Type: | Felt Labyrinth Seal | Pilot Configuration: | With Pilot |
| Insert No.: | RCI-215 | Relubricatable: | Yes |
| Duty Series: | Standard | Internal Clearance: | Standard |
| Misalignment: | ±3.0° Misalignment - Static Only | Lubrication: | Lithium; EP; NLGI#2 |
| Speed (Max): | 1750 | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Housing Construction: | Split Two Piece | Locking Type: | Double Collar Mount |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Steel | Platform: | RPB Series |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Series: | RFP | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662288480600 | Weight: | 26.42 LB |
| Packaged Length: | 8.88 Inches | Packaged Width: | 8.88 Inches |
| Packaged Height: | 8.63 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | United States of America |
