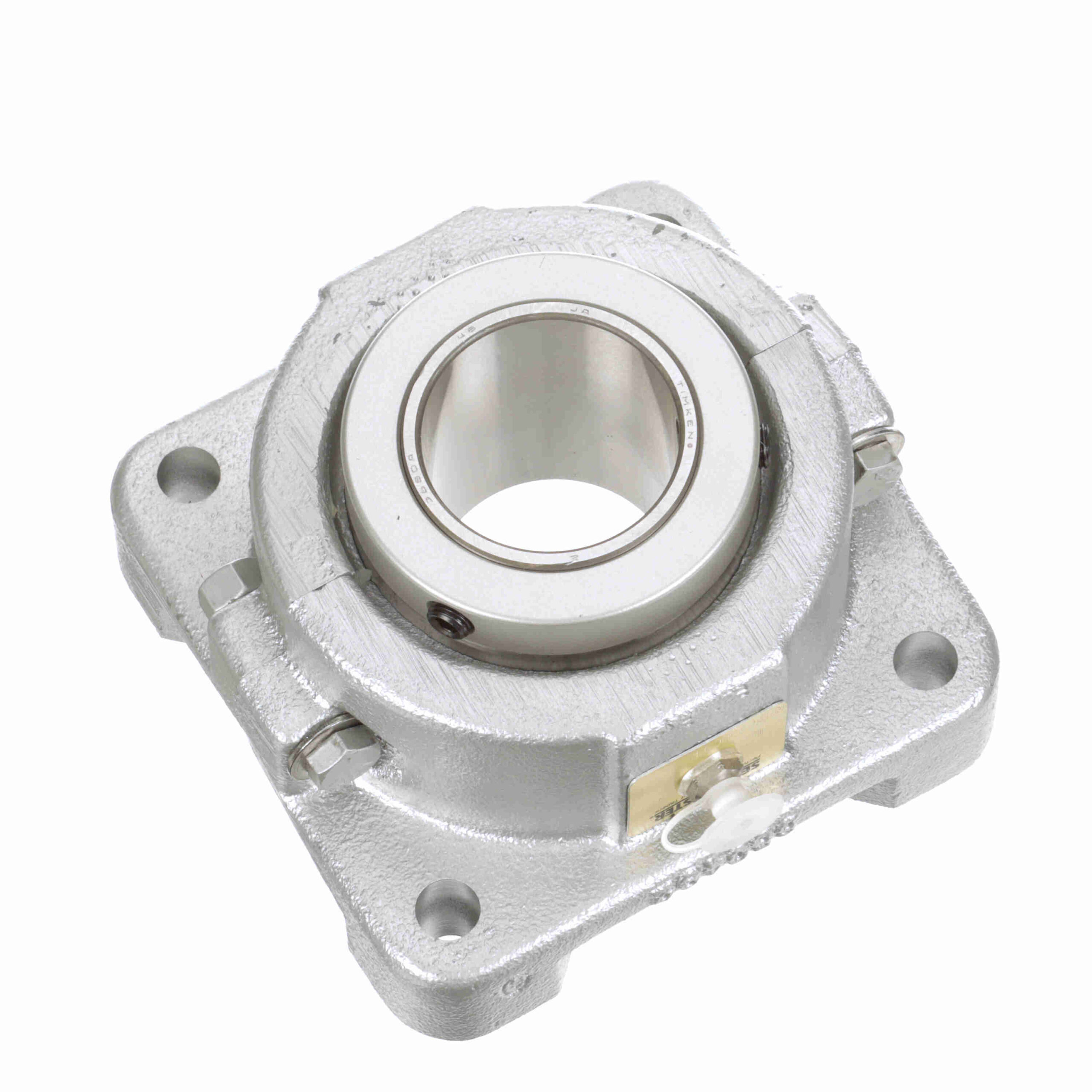

RFBA 200C CR

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Race-mounted contact flinger seal
Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Fluoropolymer-coated split cast iron housing for improved corrosion resistance
USDA H-1 approved Food-grade grease

Expansion:	Non-Expansion Bearing (Fixed)	Bore Shape:	Straight
Housing Type:	Flange, Four Bolt	Housing Base:	Solid
Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Rolling Element:	Tapered Roller
Measure Units:	Inch	Housing Material:	Flouropolymer Coated Cast Iron
Maximum Operating Temperature:	220 °F	Seal Type:	Single Lip Contact Seal
Insert Material:	52100 Bearing Steel	Speed (Max):	2500
Relubricatable:	Yes	Pilot Configuration:	No Pilot
Locking Type:	Collar Mount	Insert No.:	RCIA-200C FG1
Duty Series:	Standard	Misalignment:	±3.0° Misalignment - Static Only
Housing Construction:	Split Two Piece	Internal Clearance:	Standard
Lubrication:	Lithium; EP; NLGI#2	End Cap:	No
Bearing Insert Coating:	Uncoated	Retainer Material:	Steel
Options:	Corrosion Resistant	Misalignment Type:	Static Only
Platform:	CR Series	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Housing Color:	Silver/Gray
Series:	RFBA	Grease Fitting Thread Size:	1/8 NPT
UPC:	662461301555	Weight:	14.50 LB
Packaged Length:	6.38 Inches	Packaged Width:	6.38 Inches
Packaged Height:	3.63 Inches	HTC:	8483.20.4080
Country of Origin:	United States of America
