- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R2 80 MM

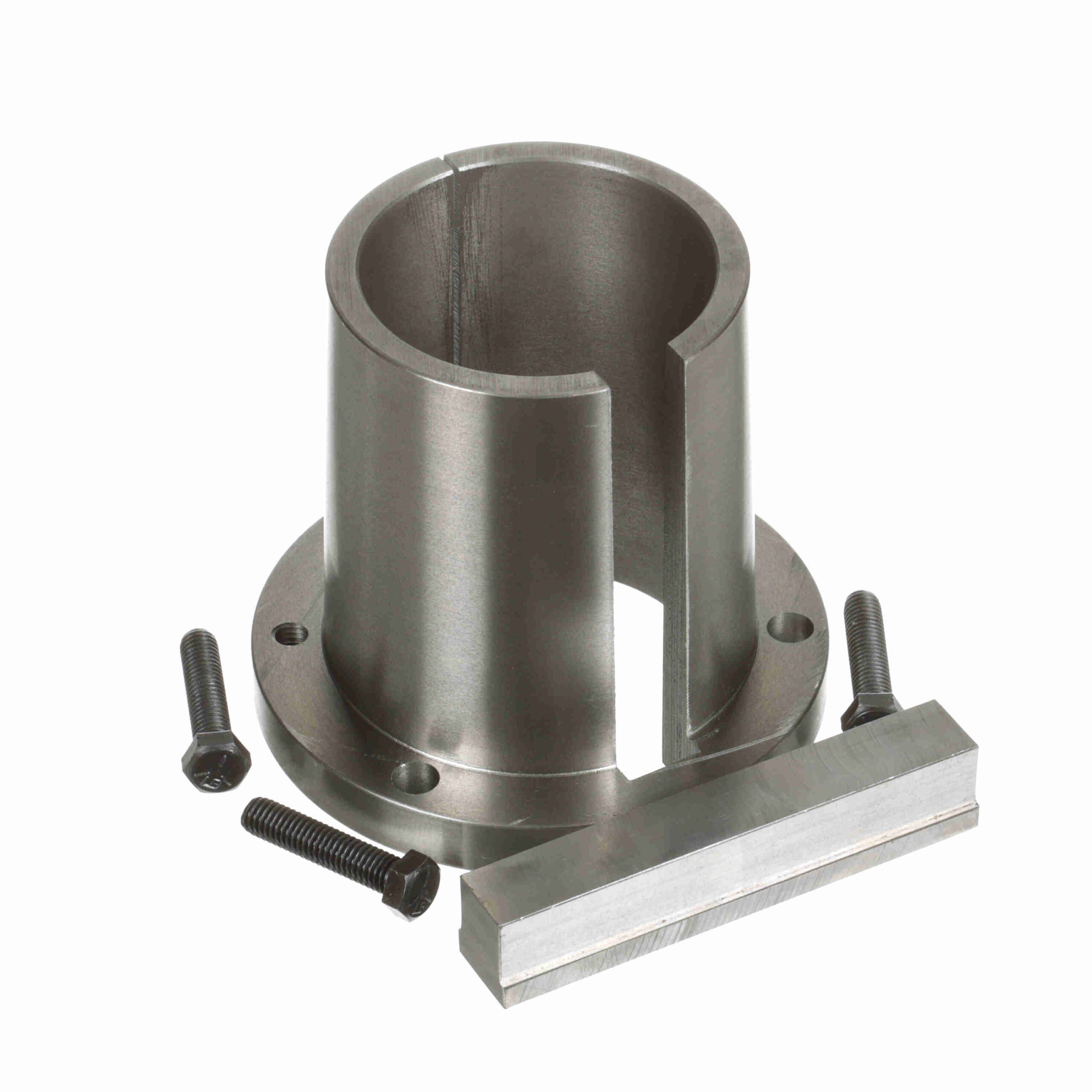

Browning Split Taper Bushing – Metric Bore Type – R2 80 MM
$326.32
Out of stock
Out of stock
| Total Length (mm): | 123.825 mm | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Compatible Bore Size [Max] (mm): | 80 mm | Model Name: | R1-R2_Type2_BushingMaster |
| Outside Diameter (mm): | 136.525 mm | Product Type: | Split Taper Bushing |
| Bushing Type: | R2 | Length Through Bore (mm): | 123.825 mm |
| Wrench Torque (in-lb): | 348 | Outside Diameter (in): | 5.375 in |
| Total Length (in): | 4.875 in | Keyseat (mm): | 22 x 7 mm |
| Bore Size (mm): | 80 mm | Cap Screws (Size): | 3/8 x 1 3/4 |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| UPC: | 662289382088 | Weight: | 7.66 LB |
| Packaged Length: | 5.38 Inches | Packaged Width: | 5 Inches |
| Packaged Height: | 5.38 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
