- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R2 3 3/16

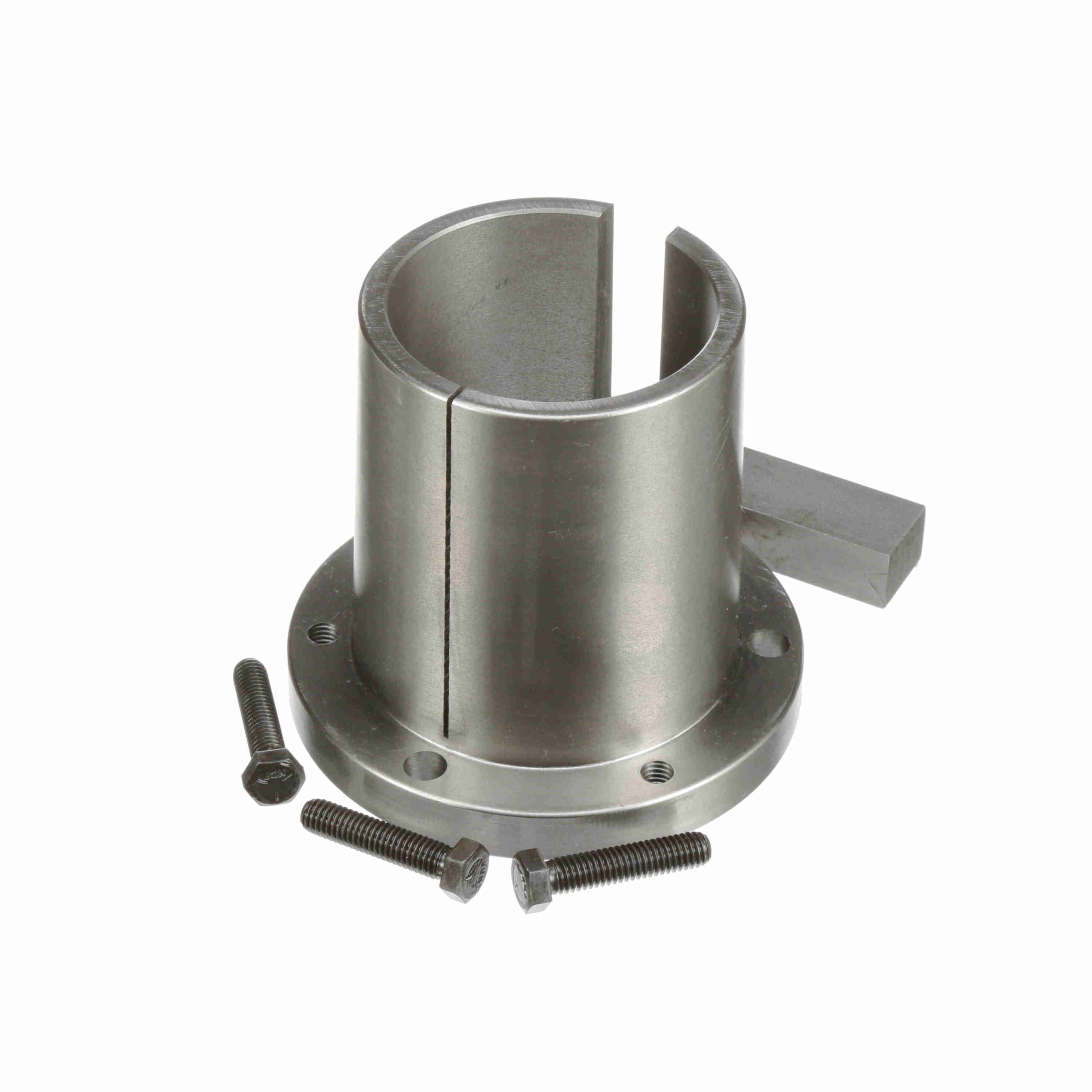

Browning Split Taper Bushing – Inch Bore Type – R2 3 3/16
$220.82
Out of stock
Out of stock
| Wrench Torque (in-lb): | 348 | Cap Screws (Size): | 3/8 x 1 3/4 |
|---|---|---|---|
| Bore Size (in): | 3.1875 in | Material: | Sintered Steel or Ductile Iron |
| Model Name: | R1-R2_Type2_BushingMaster | Outside Diameter (in): | 5.375 in |
| Compatible Bore Size [Max] (in): | 3.1875 in | Product Type: | Split Taper Bushing |
| Total Length (in): | 4.875 in | Bushing Type: | R2 |
| Keyseat: | 3/4 x 3/8 | Length Through Bore (in): | 4.875 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289221141 | Weight: | 7.47 LB |
| Packaged Length: | 6 Inches | Packaged Width: | 6 Inches |
| Packaged Height: | 5.1 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
