- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 75 MM

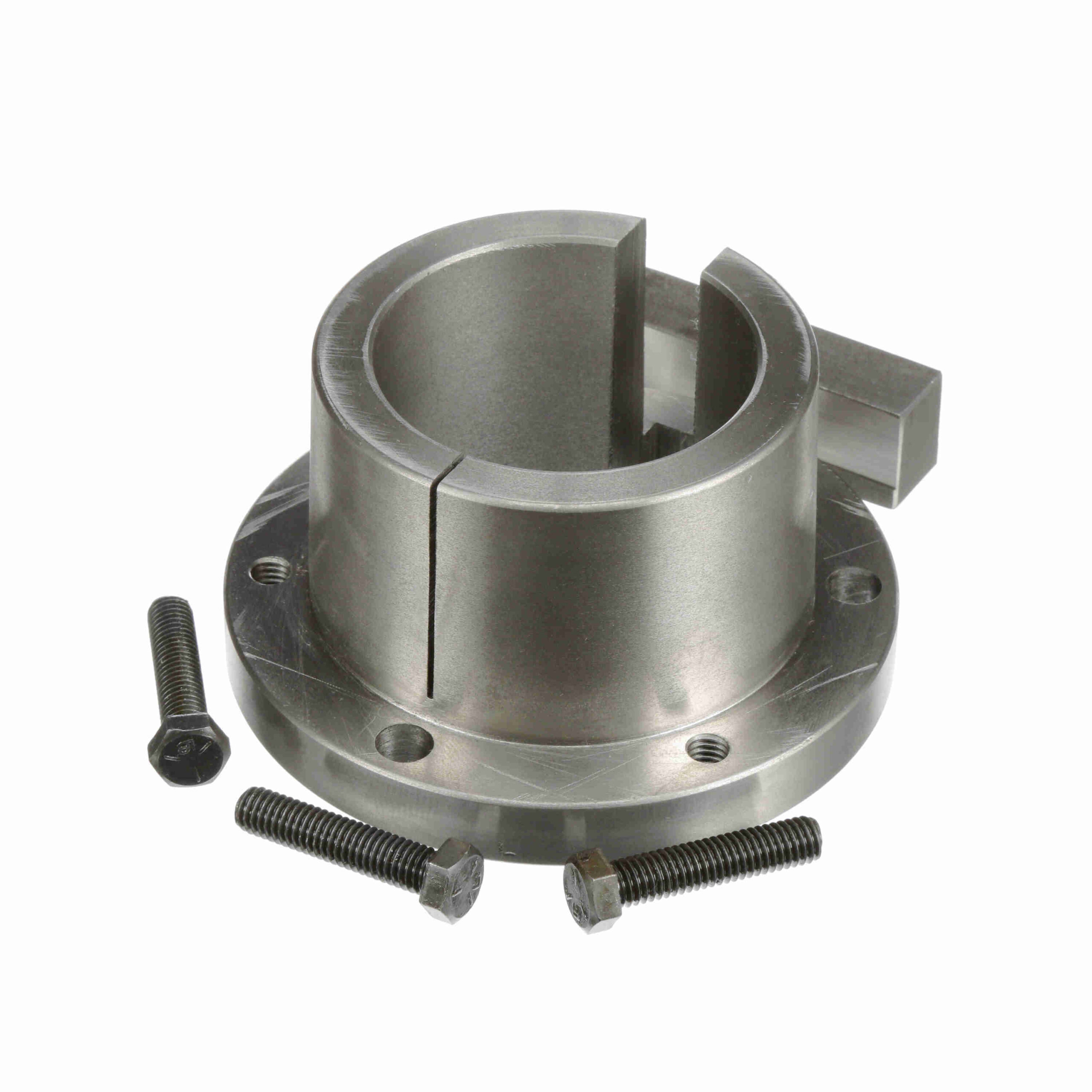

Browning Split Taper Bushing – Metric Bore Type – R1 75 MM
$201.70
Out of stock
Out of stock
| Bore Size (mm): | 75 mm | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Length Through Bore (mm): | 73.025 mm | Total Length (mm): | 73.025 mm |
| Outside Diameter (mm): | 136.525 mm | Outside Diameter (in): | 5.375 in |
| Wrench Torque (in-lb): | 348 | Total Length (in): | 2.875 in |
| Cap Screws (Size): | 3/8 x 1 3/4 | Compatible Bore Size [Max] (mm): | 75 mm |
| Keyseat (mm): | 20 x 6 mm | Product Type: | Split Taper Bushing |
| Bushing Type: | R1 | Model Name: | R1-R2_Type2_BushingMaster |
| Bore Type: | Metric | Cap Screws (No.): | 3 |
| Screw Length: | 1.75 | Barrel Diameter (Large End): | 4 |
| Bolt Circle Diameter (in): | 4.625 | Includes: | Set Screw, Cap Screws & Spcl Key |
| Barrel Diameter (Small End): | 3.875 | Flange Thickness: | 0.625 |
| Thread Size: | 3/8-16 | Flange Type: | Solid Flange |
| Mounting Type: | Conventional | UPC: | 662289351831 |
| Weight: | 6.12 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 5.6 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
