- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R1 3 1/4

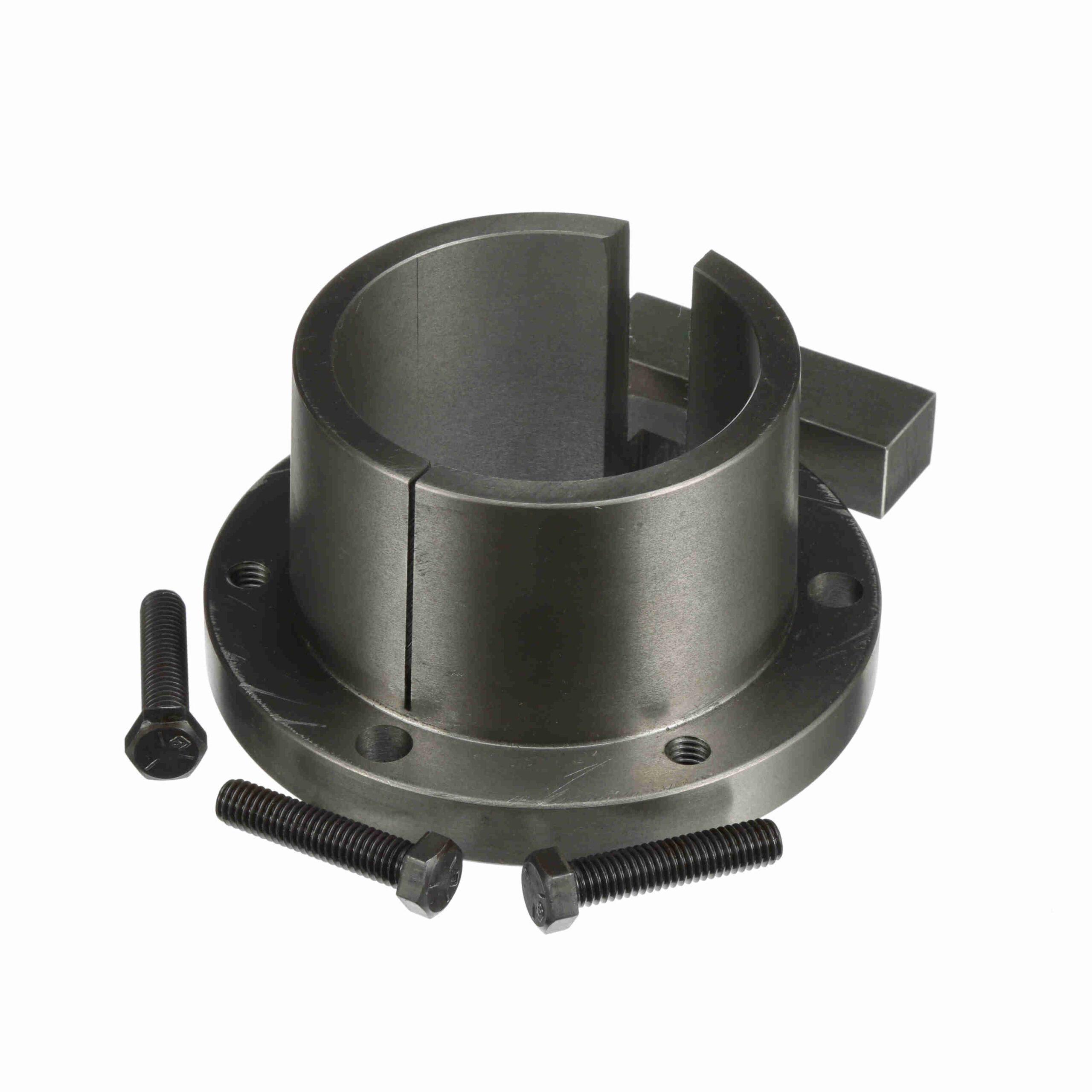

Browning Split Taper Bushing – Inch Bore Type – R1 3 1/4
$193.46
Out of stock
Out of stock
| Bushing Type: | R1 | Length Through Bore (in): | 2.875 in |
|---|---|---|---|
| Cap Screws (Size): | 3/8 x 1 3/4 | Outside Diameter (in): | 5.375 in |
| Keyseat: | 3/4 x 3/8 | Compatible Bore Size [Max] (in): | 3.25 in |
| Material: | Sintered Steel or Ductile Iron | Bore Size (in): | 3.25 in |
| Product Type: | Split Taper Bushing | Model Name: | R1-R2_Type2_BushingMaster |
| Total Length (in): | 2.875 in | Wrench Torque (in-lb): | 348 |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289300754 | Weight: | 5.09 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 5.7 Inches |
| Packaged Height: | 3.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
