- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q3 2 1/16

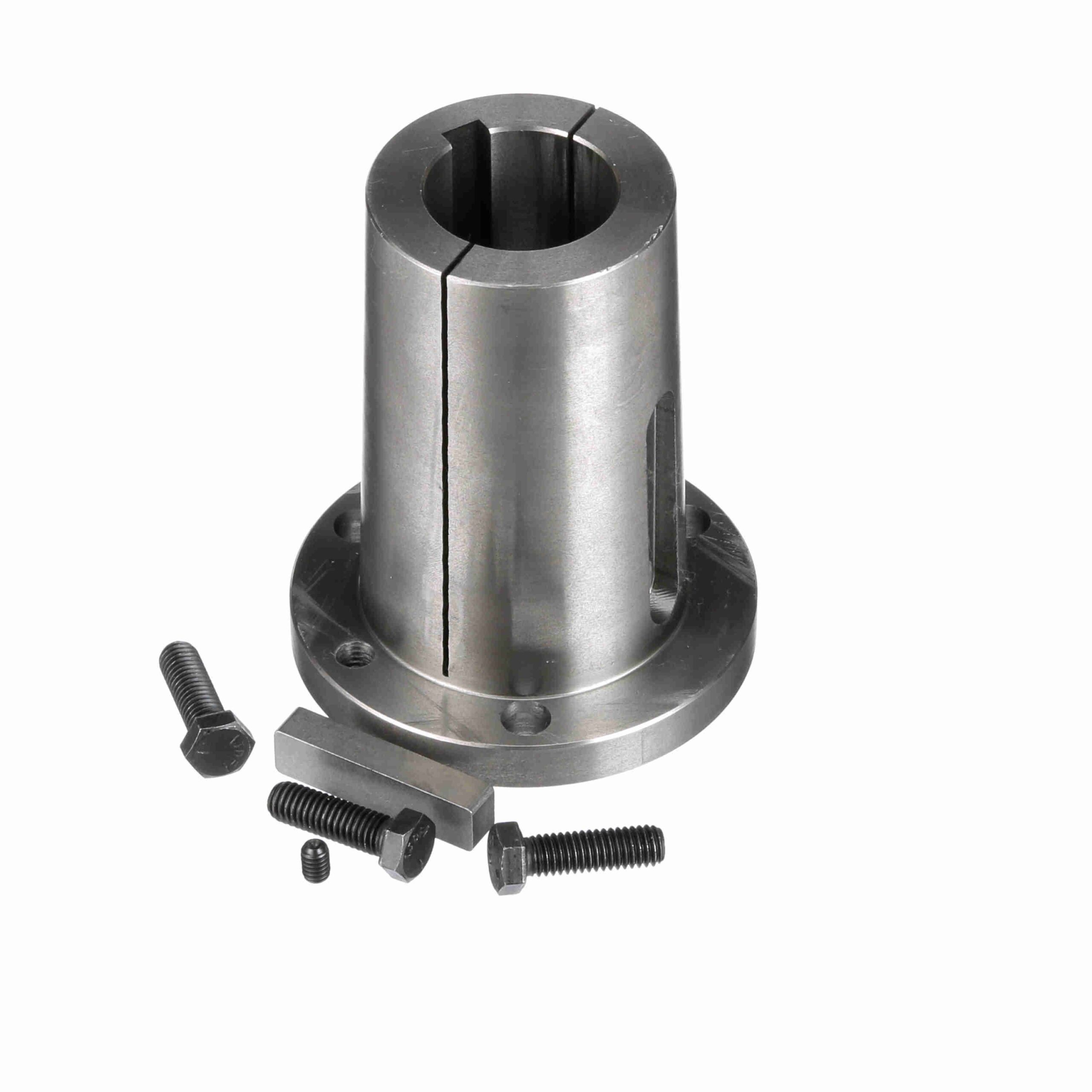

Browning Split Taper Bushing – Inch Bore Type – Q3 2 1/16
Out of stock
| Keyseat: | 1/2 x 1/4 | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Bushing Type: | Q3 | Bore Size (in): | 2.0625 in |
| Length Through Bore (in): | 5 in | Outside Diameter (in): | 4.125 in |
| Total Length (in): | 5 in | Model Name: | Q3-Type1_Bushing_Master |
| Wrench Torque (in-lb): | 348 | Compatible Bore Size [Max] (in): | 2.0625 in |
| Cap Screws (Size): | 3/8 x 1 1/4 | Product Type: | Split Taper Bushing |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289300303 | Weight: | 4.36 LB |
| Packaged Length: | 4.13 Inches | Packaged Width: | 4.13 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
