- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
Q3 1 1/2

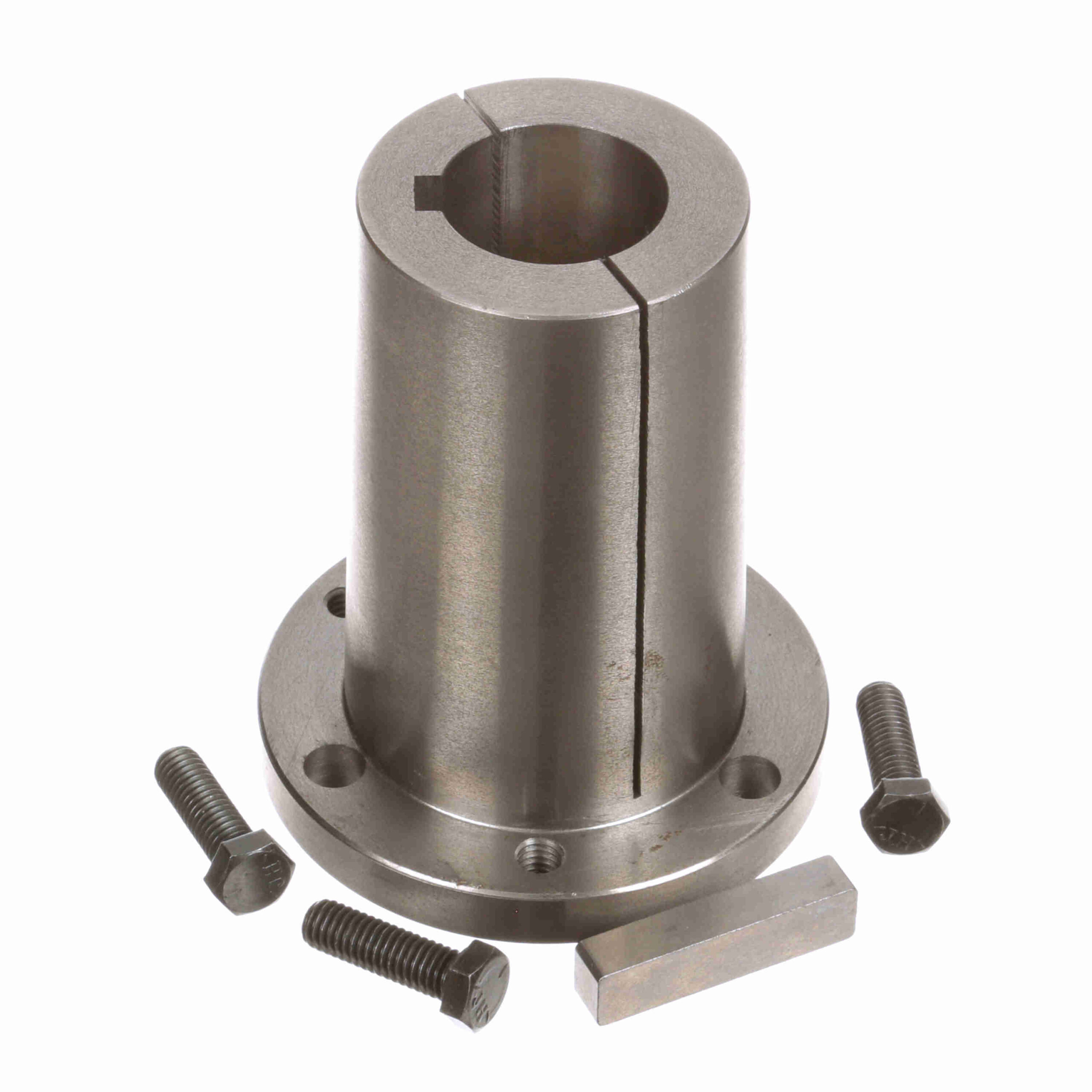

Browning Split Taper Bushing – Inch Bore Type – Q3 1 1/2
Out of stock
| Length Through Bore (in): | 5 in | Cap Screws (Size): | 3/8 x 1 1/4 |
|---|---|---|---|
| Keyseat: | 3/8 x 3/16 | Wrench Torque (in-lb): | 348 |
| Total Length (in): | 5 in | Material: | Sintered Steel or Ductile Iron |
| Product Type: | Split Taper Bushing | Bushing Type: | Q3 |
| Outside Diameter (in): | 4.125 in | Compatible Bore Size [Max] (in): | 1.5 in |
| Bore Size (in): | 1.5 in | Model Name: | Q3-Type1_Bushing_Master |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289140220 | Weight: | 6.46 LB |
| Packaged Length: | 6.1 Inches | Packaged Width: | 5.9 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
