- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Corrosion resistant
CF 1 SB CR

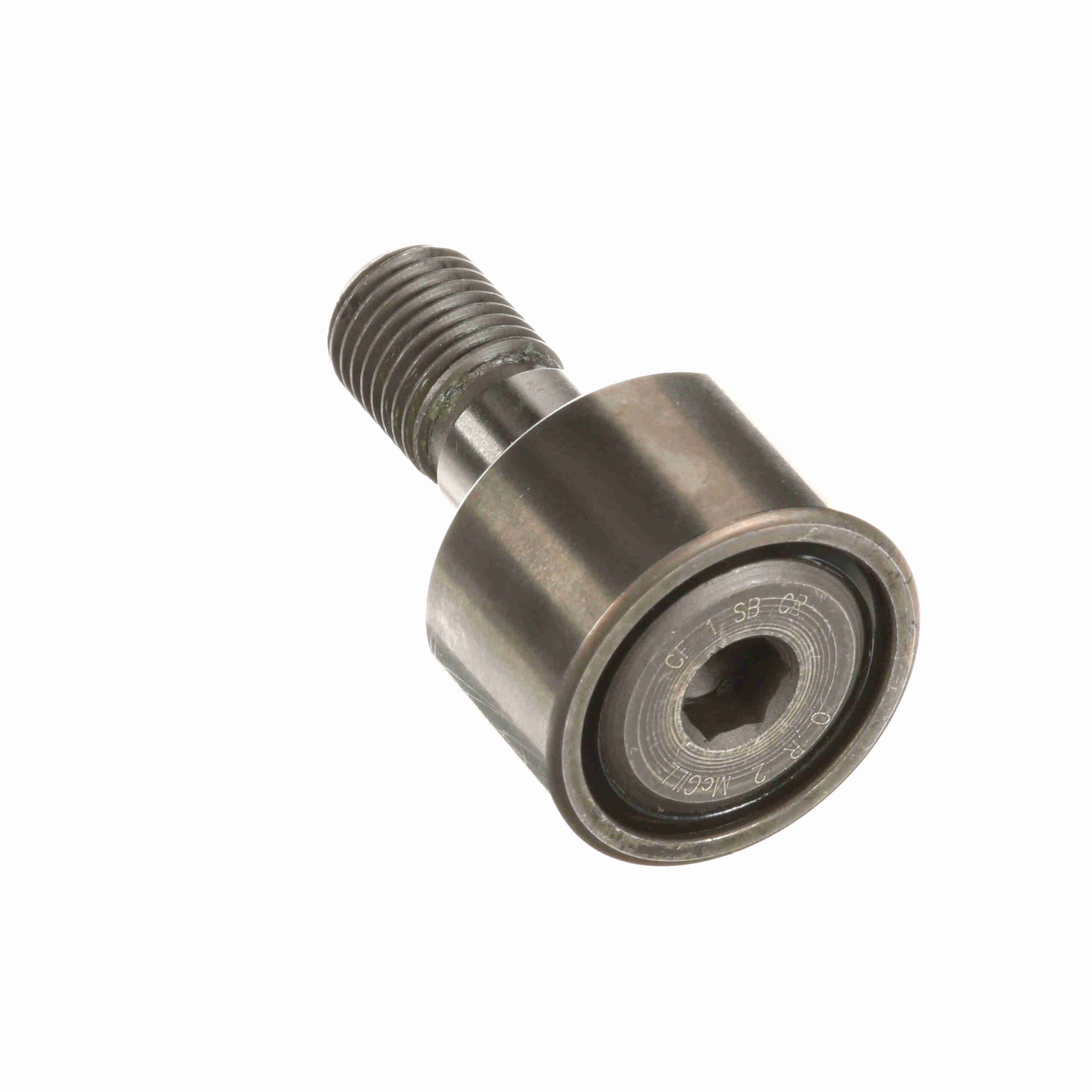

McGill CAMROL® Cylindrical 440C Stainless Steel CRES Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 SB CR
$119.47
Out of stock
Out of stock
| Dynamic Radial Rating: | 2 | Series: | CRES CAMROL® |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Cylindrical |
| Sealing: | Sealed | Hex/Slot: | Hex Hole |
| Limiting Speed: | 5 | Adjustment: | None |
| Material: | 440C Stainless Steel | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Platform: | CAMROL® |
| Dynamic Load Rating (lb): | 2, 000 lb | Static Load Rating: | 3 |
| Stud Type: | Standard Stud | Lubrication Hole Location: | Stud side |
| Clamping Torque (in-lbf): | 250 lbs | Ability to Relubricate: | Yes |
| UPC: | 726166118266 | Weight: | 0.15 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
