- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
PBE920X 2 3/4

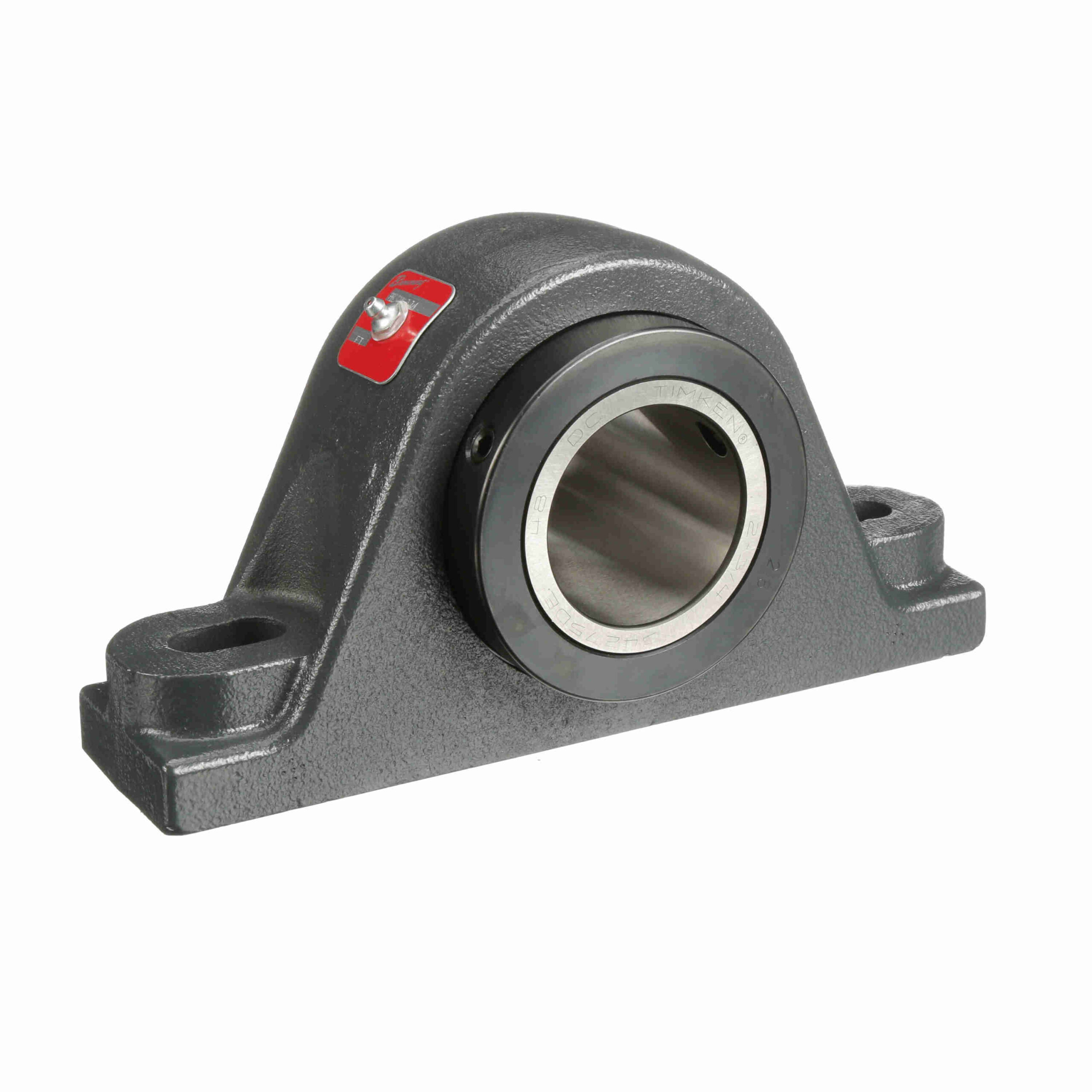

Browning Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – PBE920X 2 3/4
$940.68
Out of stock
Out of stock
| Rolling Element: | Tapered Roller | Insert Material: | 52100 Bearing Steel |
|---|---|---|---|
| Housing Material: | Cast Iron | Housing Type: | Pillow Block, Two Bolt |
| Expansion: | No | Housing Base: | Semi-Solid |
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Speed (Max): | 1500 |
| Misalignment: | None | Bore Shape: | Straight |
| Locking Type: | Double Collar Mount | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 9, 630 lb | Misalignment Type: | None |
| End Cap: | No | Platform: | Type E |
| Bearing Insert Coating: | Uncoated | Housing Color: | Gray |
| Retainer Material: | Steel | Replaceable Insert: | No |
| Outer Ring Land Profile: | Standard | Series: | PBE920 |
| Grease Fitting Thread Size: | 1/8 NPT | Maximum Operating Temperature (F): | 200 °F |
| Inner Race Heat Treat Method: | Case Carburized Inner Ring | Duty/Series: | Standard |
| Housing Style: | Pillow Block | Lubrication Type: | Lithium, EP, NLGI#2 |
| Ability to Relubricate: | Yes | UPC: | 662460000000 |
| Weight: | 29.97 LB | Packaged Length: | 12.25 Inches |
| Packaged Width: | 6.25 Inches | Packaged Height: | 4.5 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
