- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
PBE920X 1 15/16

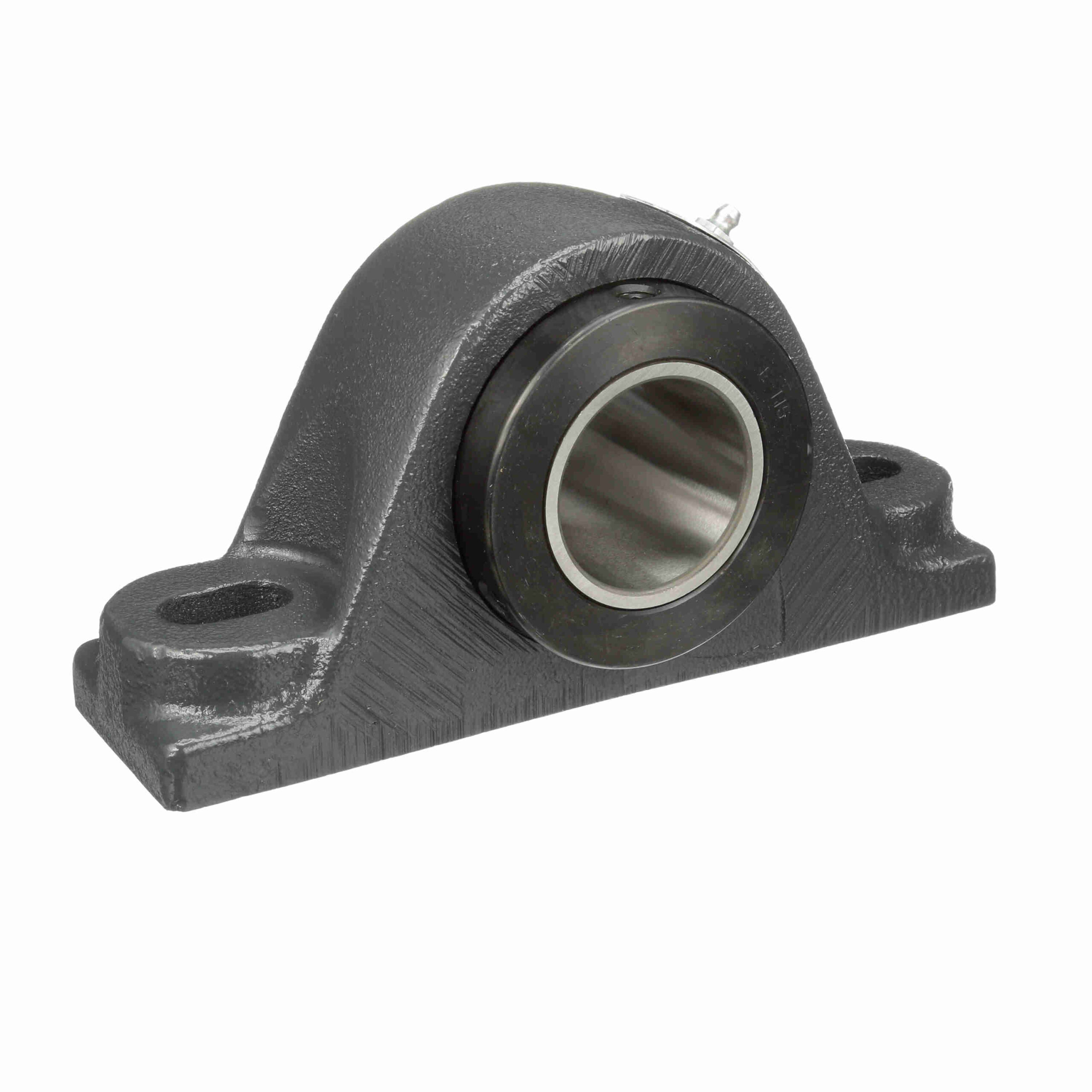

Browning Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – PBE920X 1 15/16
$326.73
Availability: 9 in stock
Availability: 9 in stock
| Expansion: | No | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel |
| Measure Units: | Inch | Housing Base: | Semi-Solid |
| Rolling Element: | Tapered Roller | Maximum Operating Temperature: | 200 °F |
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Housing Type: | Pillow Block; Two Bolt |
| Housing Construction: | One Piece | Locking Type: | Double Collar Mount |
| Duty Series: | Standard | Lubrication: | Lithium; EP; NLGI#2 |
| Speed (Max): | 2000 | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 8, 070 | Bore Shape: | Straight |
| Relubricatable: | Yes | Misalignment: | None |
| Bearing Insert Coating: | Uncoated | Retainer Material: | Steel |
| End Cap: | No | Platform: | Type E |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | None | Replaceable Insert: | No |
| Series: | PBE920 | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662289626717 | Weight: | 12.46 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 3.5 Inches | HTC: | 8483.20.8080 |
| Country of Origin: | United States of America |
