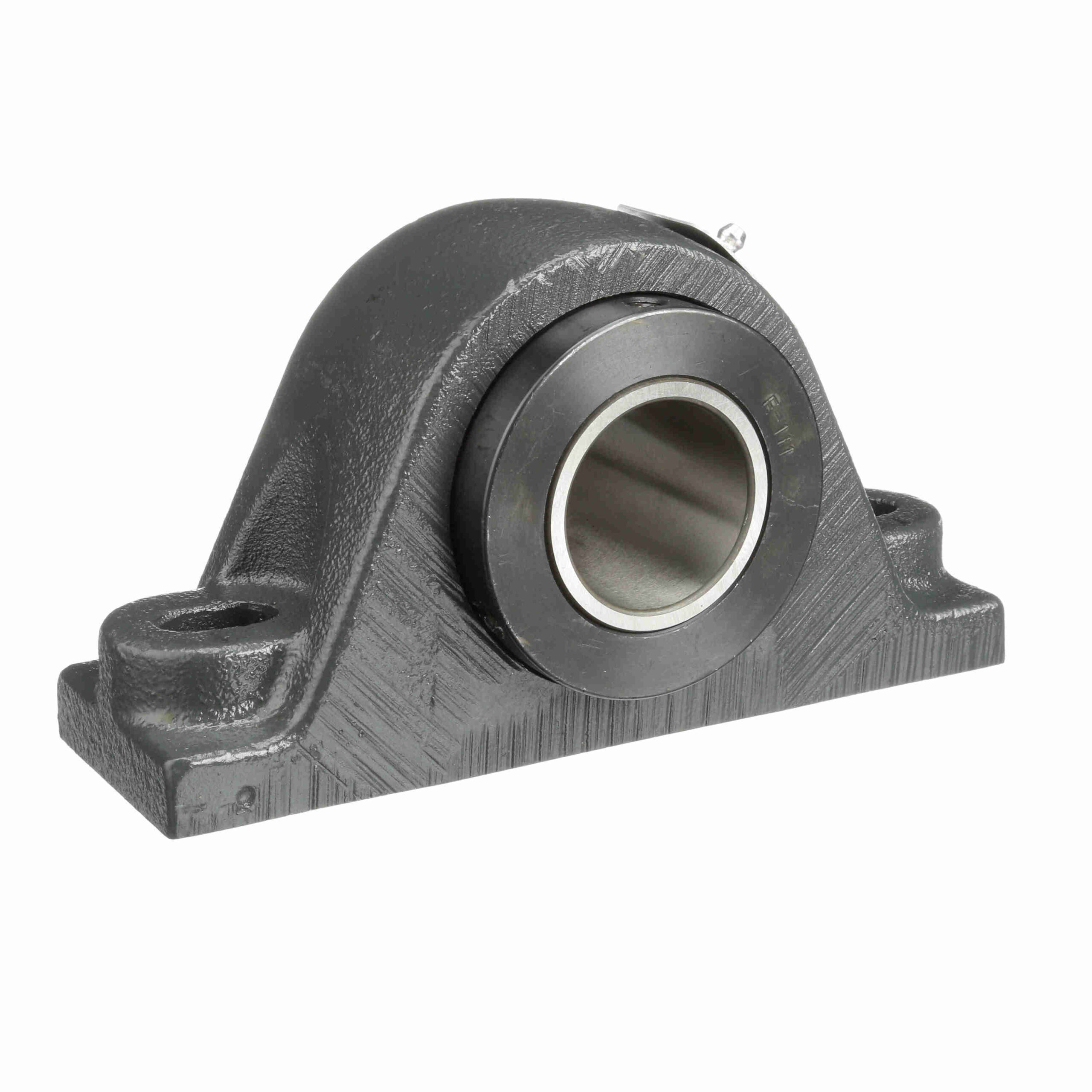

PBE920X 1 11/16

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Single lip contact face-riding seals rotate with the shaft
Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy 2-bolt cast iron housing

Housing Base:	Semi-Solid	Housing Material:	Cast Iron
Insert Material:	52100 Bearing Steel	Housing Type:	Pillow Block; Two Bolt
Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Expansion:	No
Rolling Element:	Tapered Roller	Measure Units:	Inch
Seal Type:	Single Lip Contact Seal	Maximum Operating Temperature:	200 °F
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	6, 140
Relubricatable:	Yes	Lubrication:	Lithium; EP; NLGI#2
Misalignment:	None	Internal Clearance:	Standard
Bore Shape:	Straight	Speed (Max):	2500
Duty Series:	Standard	Locking Type:	Double Collar Mount
Housing Color:	Gray	Bearing Insert Coating:	Uncoated
Misalignment Type:	None	Platform:	Type E
Retainer Material:	Steel	Replaceable Insert:	No
Outer Ring Land Profile:	Standard	End Cap:	No
Series:	PBE920	Grease Fitting Thread Size:	1/8 NPT
UPC:	662289426744	Weight:	10.90 LB
Packaged Length:	8.06 Inches	Packaged Width:	4.25 Inches
Packaged Height:	3.38 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
