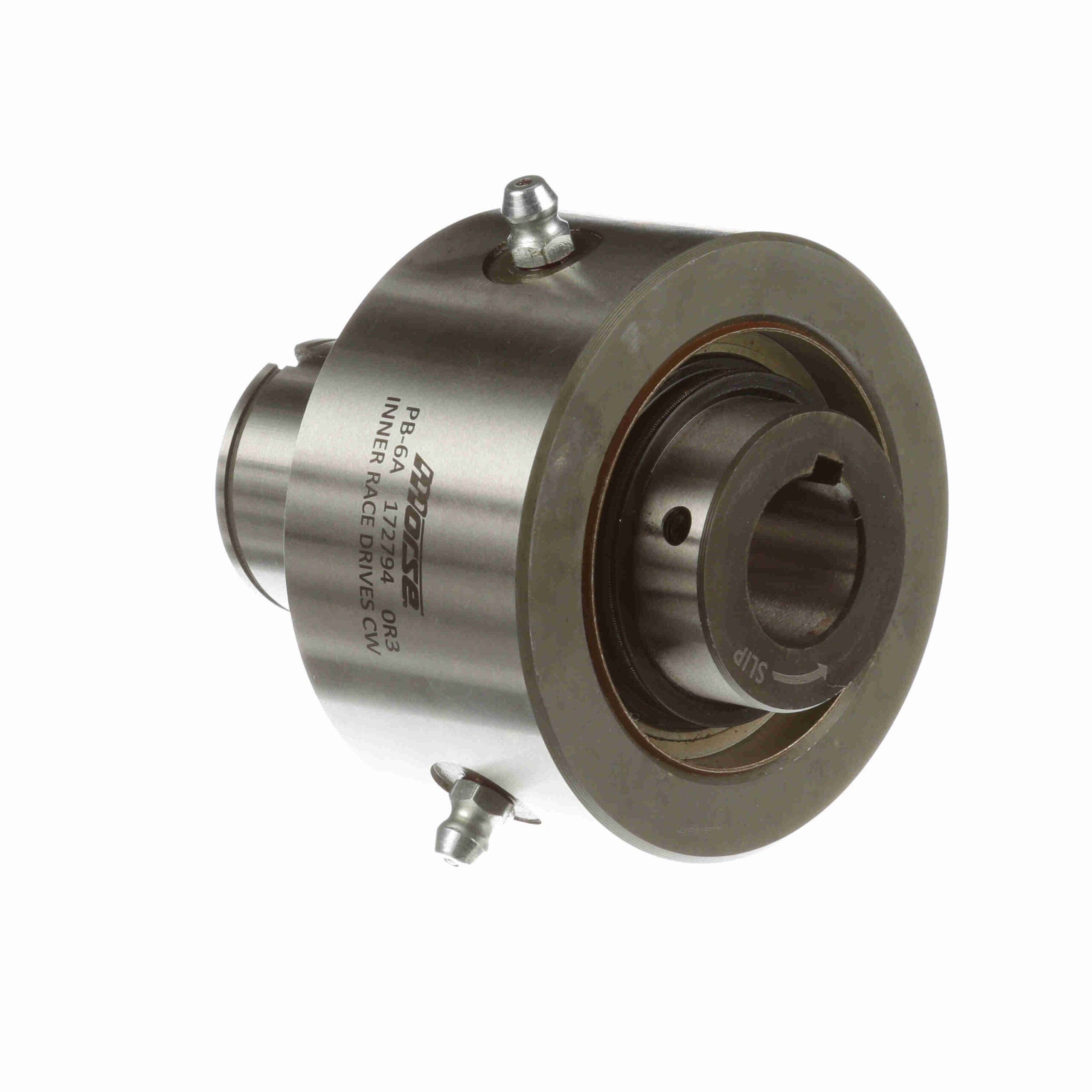

PB-6A CLUTCH .750B RH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
PB series clutch features precision formed cams providing high torque capacities with excellent wear life. These models are suitable for general duty applications.
A bonze seal maintains race concentricity. They a asymmetrical by design, so must be ordered according to rotation requirements.

RPM Max. - Inner Race:	1800	RPM Max. - Outer Race:	900
Length to Snap Ring Groove (in):	1.625 in	Snap Ring (Not Furnished):	RS137
Groove Diameter:	1.327/1.319	Keyway:	3/16 x 3/32
Overall Width (in):	3.1875 in	Type:	CAM Clutches
Keyway Length (in):	1 in	Overall Diameter (in):	2.875 in
Configuration:	RH	Hub Diameter (in):	1.375 in
Length to Groove:	1.215/1.220	Mounting Length (in):	1.3125 in
Key for Bore Size:	3/16 x 3/32	Mounting Diameter (in):	1.375/1.374 in
Groove Width:	.048/.068	Major Diameter Width (in):	1.5625 in
Lubrication Type:	Grease	Model:	PB-6A
Add'l Bearing Support Requirement:	No	Backstopping Clutch:	Yes
Product Type:	PB Series	Bore Size (in):	0.75 in
Overrunning Clutch:	Yes	Indexing Clutch:	Yes
Rated Torque Capacity (ft.-lbs.):	300	UPC:	662288408079
Weight:	3.43 LB	Packaged Length:	4.70 Inches
Packaged Width:	4.40 Inches	Packaged Height:	3.40 Inches
HTC:	8483.60.4040	Country of Origin:	Mexico
