- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P1 15 MM

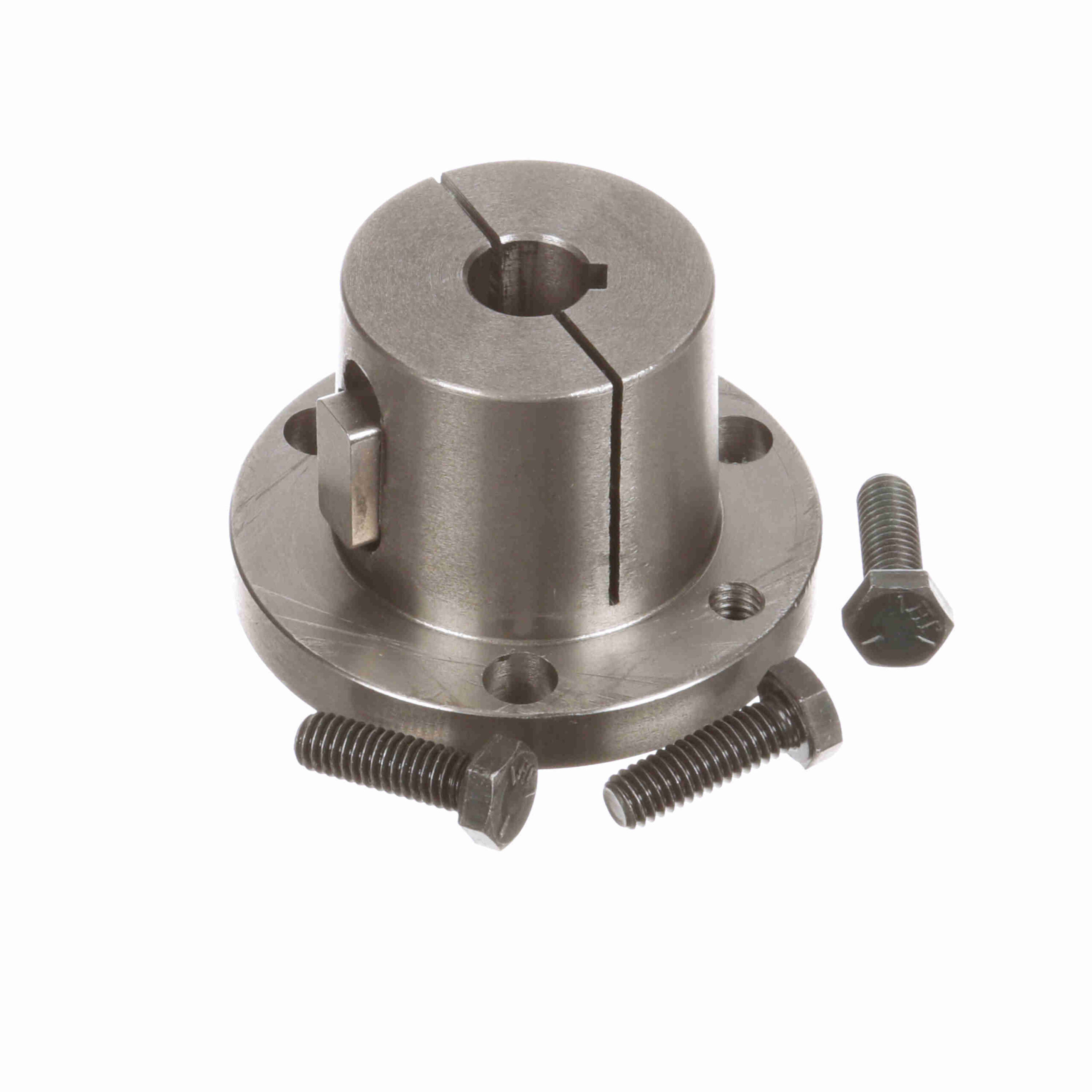

Browning Split Taper Bushing – Metric Bore Type – P1 15 MM
$79.75
Out of stock
Out of stock
| Cap Screws (Size): | 5/16 x 1 | Wrench Torque (in-lb): | 192 |
|---|---|---|---|
| Product Type: | Split Taper Bushing | Material: | Sintered Steel or Ductile Iron |
| Outside Diameter (mm): | 76.2 mm | Total Length (mm): | 49.2125 mm |
| Outside Diameter (in): | 3 in | Bore Size (mm): | 15 mm |
| Model Name: | P1_Bushing-Type1_Master | Bushing Type: | P1 |
| Compatible Bore Size [Max] (mm): | 15 mm | Keyseat (mm): | 5 x 2.5 mm |
| Total Length (in): | 1.9375 in | Length Through Bore (mm): | 49.2125 mm |
| Bore Type: | Metric | Cap Screws (No.): | 3 |
| UPC: | 662289351619 | Weight: | 1.72 LB |
| Packaged Length: | 3.06 Inches | Packaged Width: | 1.94 Inches |
| Packaged Height: | 3.06 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
