- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
P1 1 1/8 6 SPL B

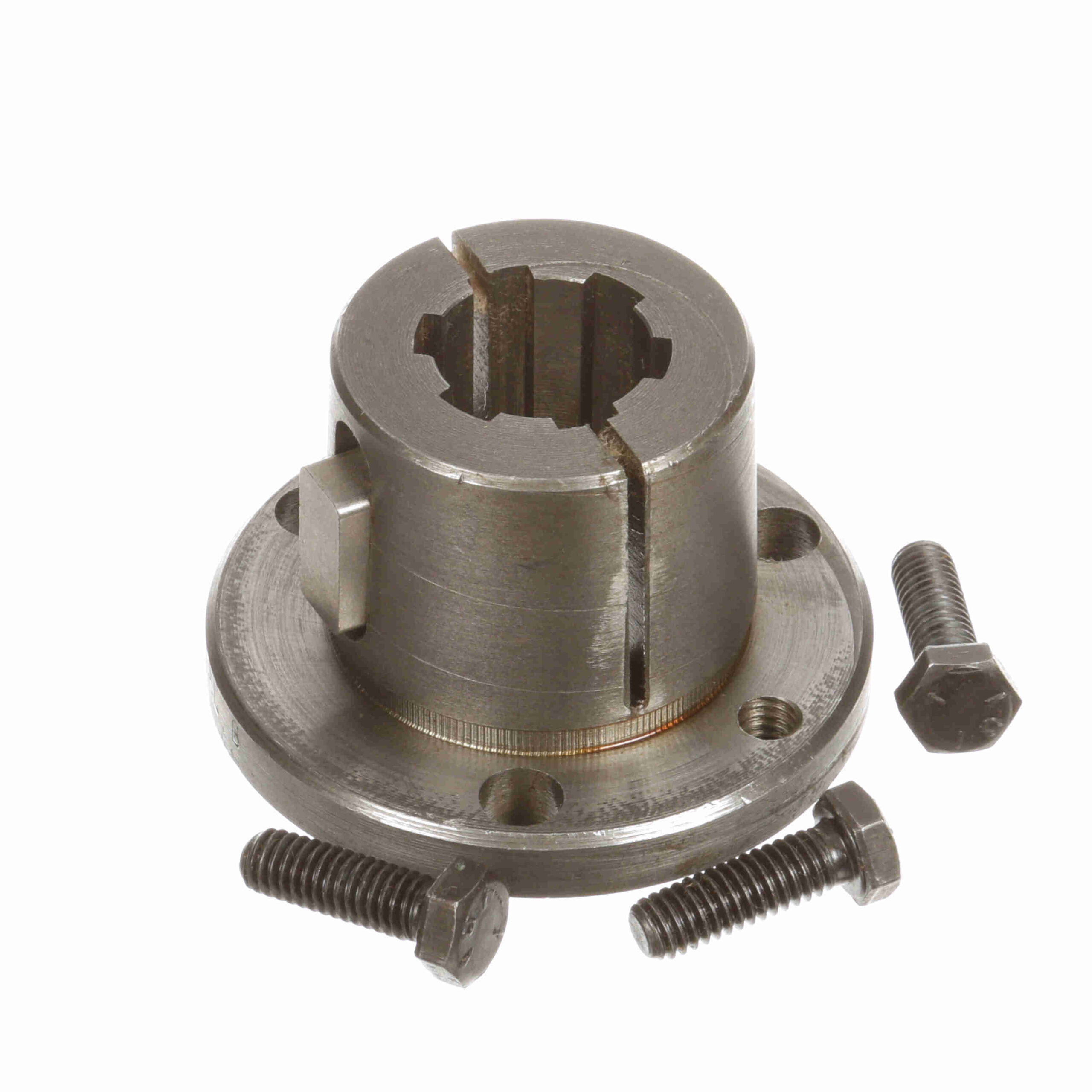

Browning Split Taper Bushing – Inch Spline Bore Type – P1 1 1/8 6 SPL B
Out of stock
| Total Length (in): | 1.9375 in | Compatible Bore Size [Max] (in): | 1.125 in |
|---|---|---|---|
| Bore Size (in): | 1.125 in | Length Through Bore (in): | 1.9375 in |
| Product Type: | Split Taper Bushing | Bushing Type: | P1 |
| Keyseat: | 1/4 x 1/8 | Cap Screws (Size): | 5/16x 1 |
| Material: | Sintered Steel or Ductile Iron | Outside Diameter (in): | 3 in |
| Wrench Torque (in-lb): | 192 | Bore Type: | Inch |
| Cap Screws (No.): | 3 | UPC: | 662289143849 |
| Weight: | 1.42 LB | Packaged Length: | 3.1 Inches |
| Packaged Width: | 3.2 Inches | Packaged Height: | 1.9 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
