- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 324 EM C3

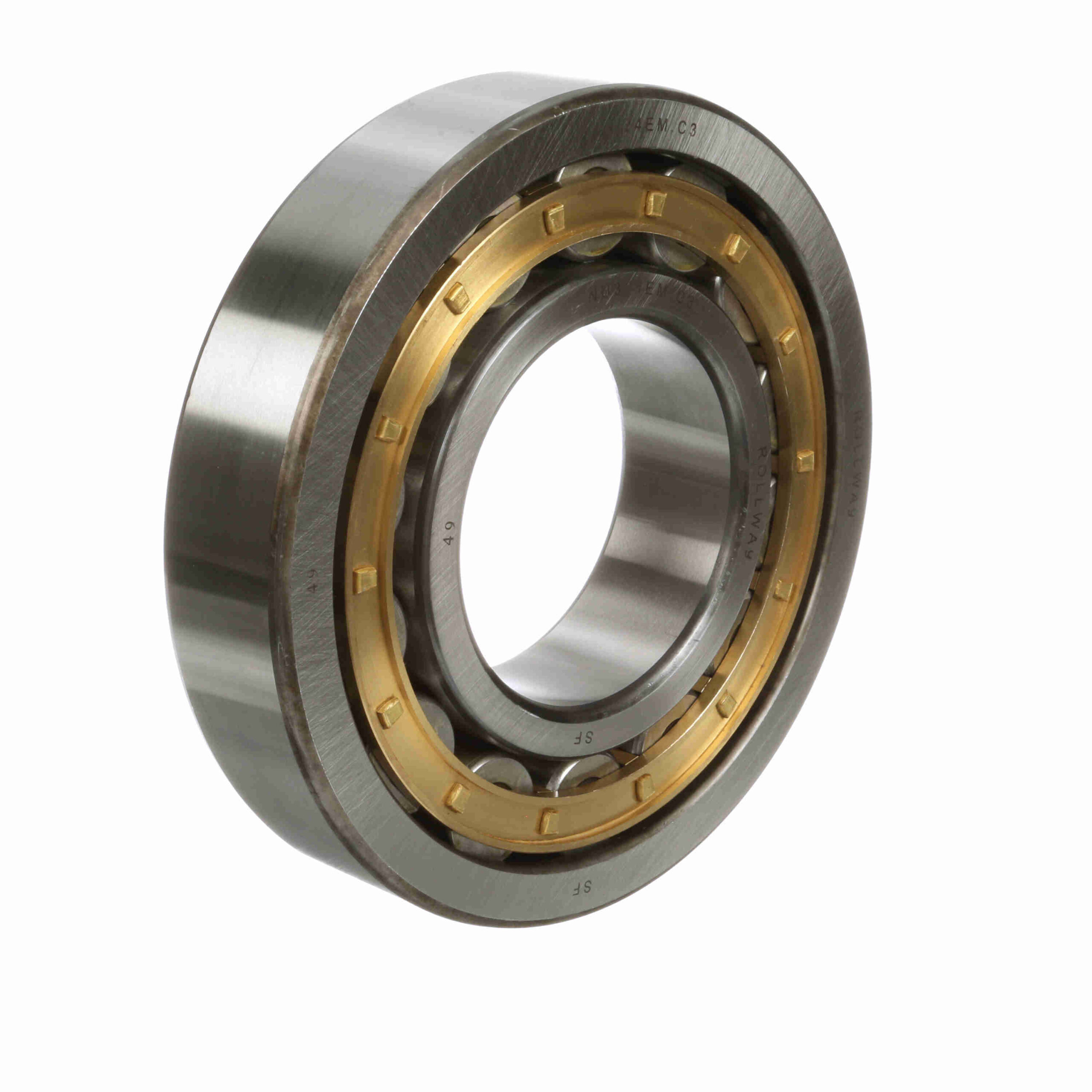

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 324 EM C3
$3,561.74
Availability: 6 in stock
Availability: 6 in stock
| Version: | EM: Extra capacity design, Machined brass retainer | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Static Load Rating (kN): | 644 kN |
| Flanges: | (2) Flanges on Outer Ring | Dynamic Load Rating (kN): | 548.999509872004 kN |
| Seal Type: | Unsealed | Additional Information: | Suitable for radial loads only |
| Cage Material: | Brass | Bore Type: | Straight |
| Radial Clearance: | C3 | Material: | High Chromium Bearing Steel |
| Misalignment: | No | Rolling Element: | Cylindrical Roller |
| Number of Rows: | 1 | Duplexing: | No |
| Static Load Rating (lb): | 144, 777 lb | Sealed: | None |
| Speed [Max] Grease (RPM): | 2, 200 rpm | Full Complement/Caged: | Caged |
| Platform: | Cylindrical Radial | Speed [Max] Oil (RPM): | 2, 800 rpm |
| Dynamic Load Rating (lb): | 123, 420 lb | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | Separable: | Inner ring - both sides |
| Snap Ring: | No | UPC: | 637410083103 |
| Weight: | 32.14 LB | Packaged Length: | 11.5 Inches |
| Packaged Width: | 12 Inches | Packaged Height: | 2.9 Inches |
| Country of Origin: | China |
