- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 306 EM C3

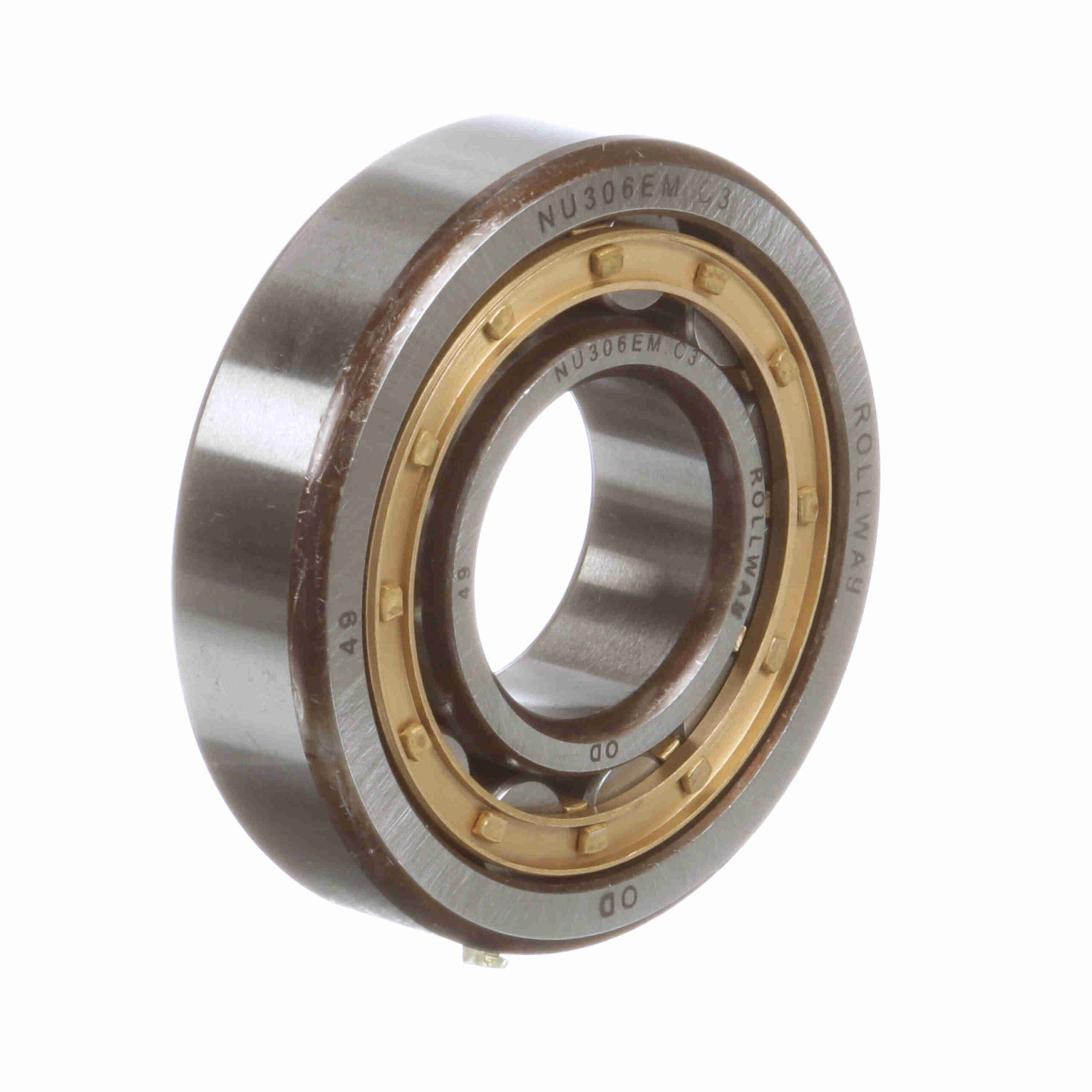

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 306 EM C3
$148.73
Availability: 2 in stock
Availability: 2 in stock
| Version: | EM: Extra capacity design, Machined brass retainer | Inner Race Configuration: | Separable Both Directions |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Additional Information: | Suitable for radial loads only |
| Cage Material: | Brass | Static Load Rating (kN): | 47 kN |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Rolling Element: | Cylindrical Roller | Material: | High Chromium Bearing Steel |
| Radial Clearance: | C3 | Number of Rows: | 1 |
| Misalignment: | No | Duplexing: | No |
| Speed [Max] Grease (RPM): | 8, 500 rpm | Dynamic Load Rating (lb): | 11, 353 lb |
| Full Complement/Caged: | Caged | Speed [Max] Oil (RPM): | 10, 000 rpm |
| Platform: | Cylindrical Radial | Sealed: | None |
| Static Load Rating (lb): | 10, 566 lb | Retainer: | Yes |
| Separable: | Inner ring - both sides | Snap Ring: | No |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410082182 |
| Weight: | 0.89 LB | Packaged Length: | 3.1 Inches |
| Packaged Width: | 2.9 Inches | Packaged Height: | 0.9 Inches |
| Country of Origin: | China |
