- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

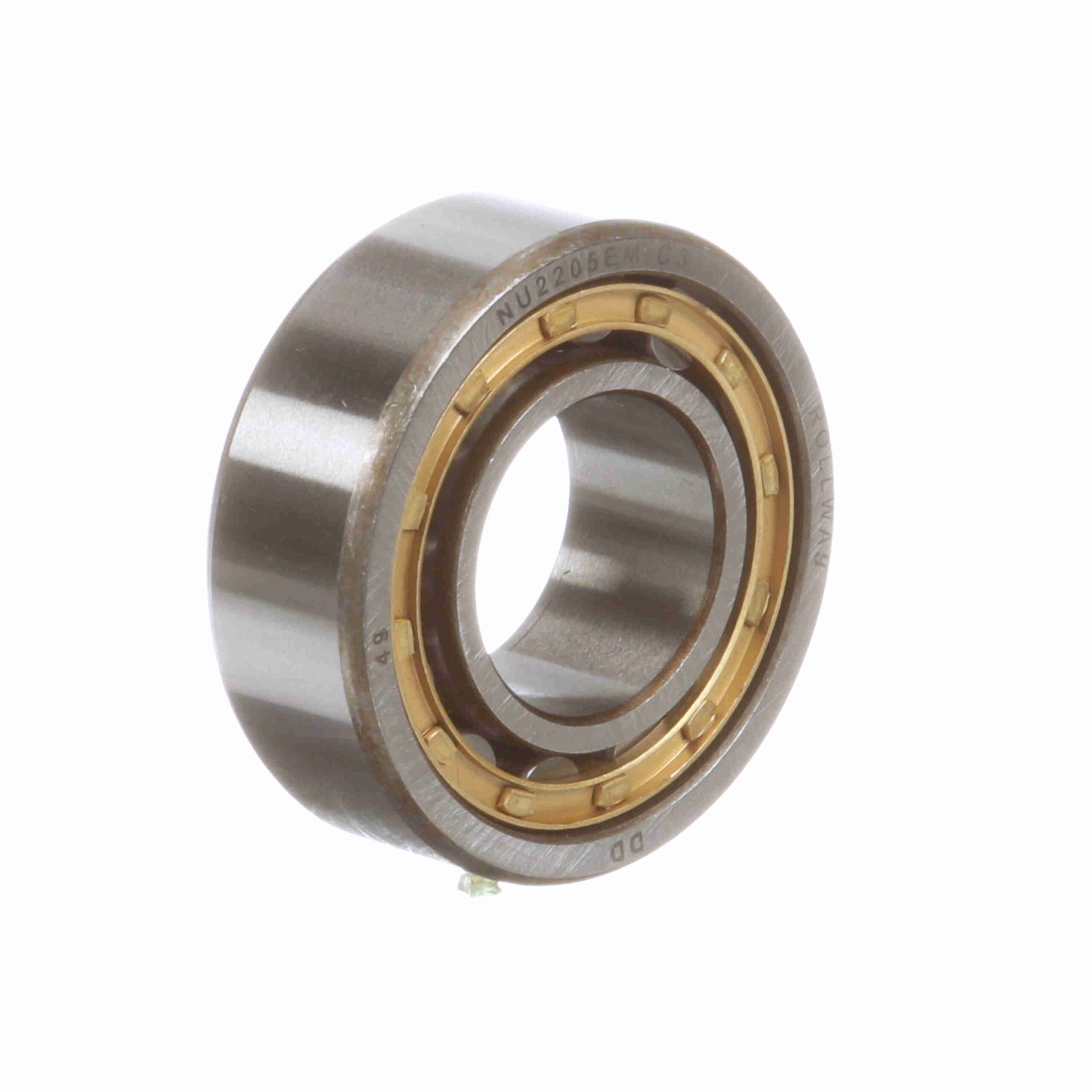

NU 2205 EM C3
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 2205 EM C3
$219.74
Out of stock
Out of stock
| Version: | EM: Extra capacity design, Machined brass retainer | Inner Race Configuration: | Separable Both Directions |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Additional Information: | Suitable for radial loads only |
| Seal Type: | Unsealed | Static Load Rating (kN): | 34.3 kN |
| Cage Material: | Brass | Bore Type: | Straight |
| Material: | High Chromium Bearing Steel | Misalignment: | No |
| Radial Clearance: | C3 | Number of Rows: | 1 |
| Rolling Element: | Cylindrical Roller | Full Complement/Caged: | Caged |
| Sealed: | None | Duplexing: | No |
| Speed [Max] Grease (RPM): | 11, 000 rpm | Dynamic Load Rating (lb): | 7, 778 lb |
| Platform: | Cylindrical Radial | Static Load Rating (lb): | 7, 711 lb |
| Speed [Max] Oil (RPM): | 14, 000 rpm | Snap Ring: | No |
| Retainer: | Yes | Separable: | Inner ring - both sides |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410085602 |
| Weight: | 0.41 LB | Packaged Length: | 2.6 Inches |
| Packaged Width: | 2.4 Inches | Packaged Height: | 0.9 Inches |
| Country of Origin: | China |
