- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NU 2206 EM C3

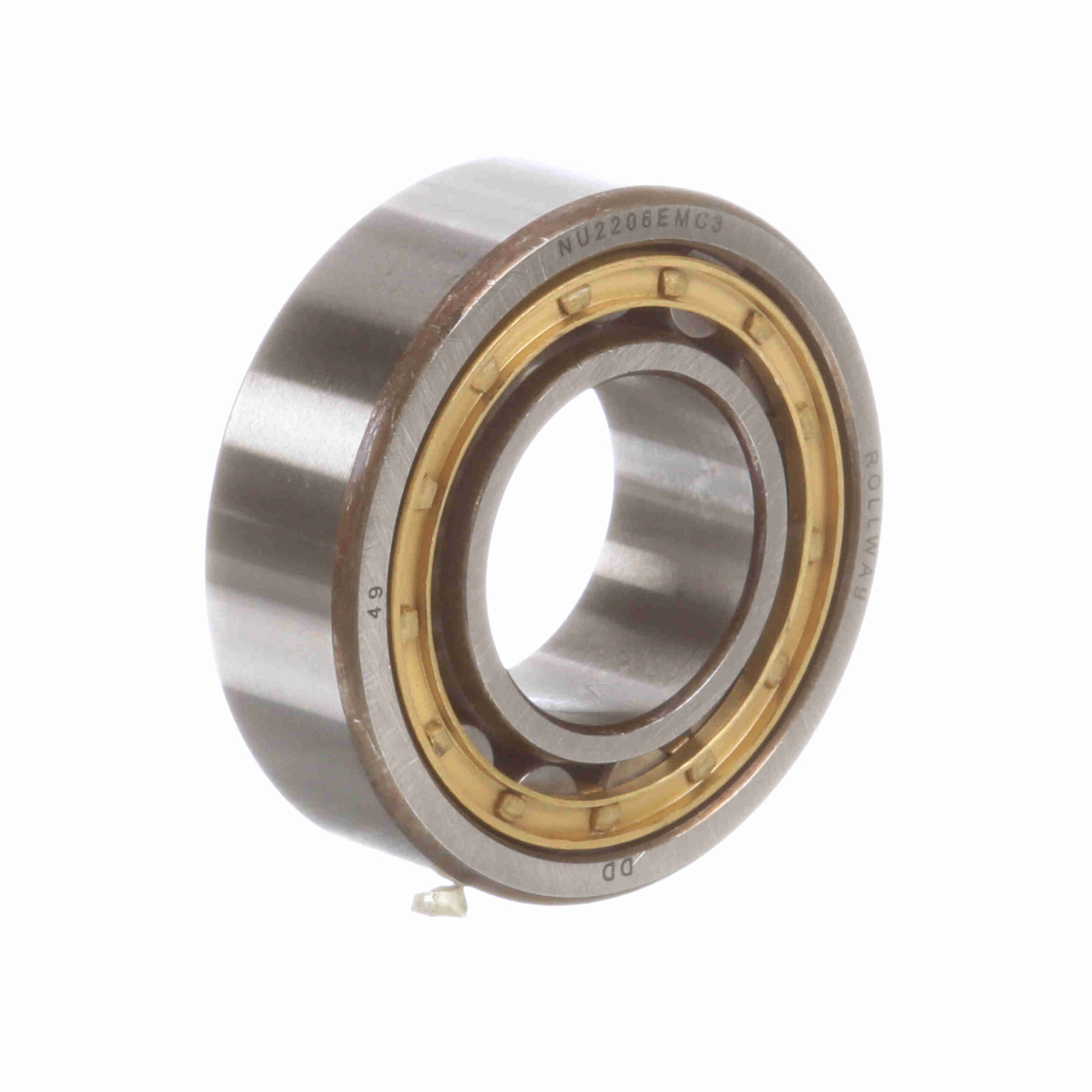

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 2206 EM C3
$245.66
Out of stock
Out of stock
| Additional Information: | Suitable for radial loads only | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Outer Race Configuration: | Non-Separable |
| Static Load Rating (kN): | 49.9 kN | Seal Type: | Unsealed |
| Bore Type: | Straight | Cage Material: | Brass |
| Material: | High Chromium Bearing Steel | Misalignment: | No |
| Rolling Element: | Cylindrical Roller | Radial Clearance: | C3 |
| Number of Rows: | 1 | Platform: | Cylindrical Radial |
| Duplexing: | No | Sealed: | None |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 11, 218 lb |
| Dynamic Load Rating (lb): | 10, 993 lb | Speed [Max] Oil (RPM): | 11, 000 rpm |
| Speed [Max] Grease (RPM): | 9, 000 rpm | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | Snap Ring: | No |
| Separable: | Inner ring - both sides | UPC: | 637410085664 |
| Weight: | 0.57 LB | Packaged Length: | 2.44 Inches |
| Packaged Width: | 0.79 Inches | Packaged Height: | 2.44 Inches |
| Country of Origin: | China |
