- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS6P32

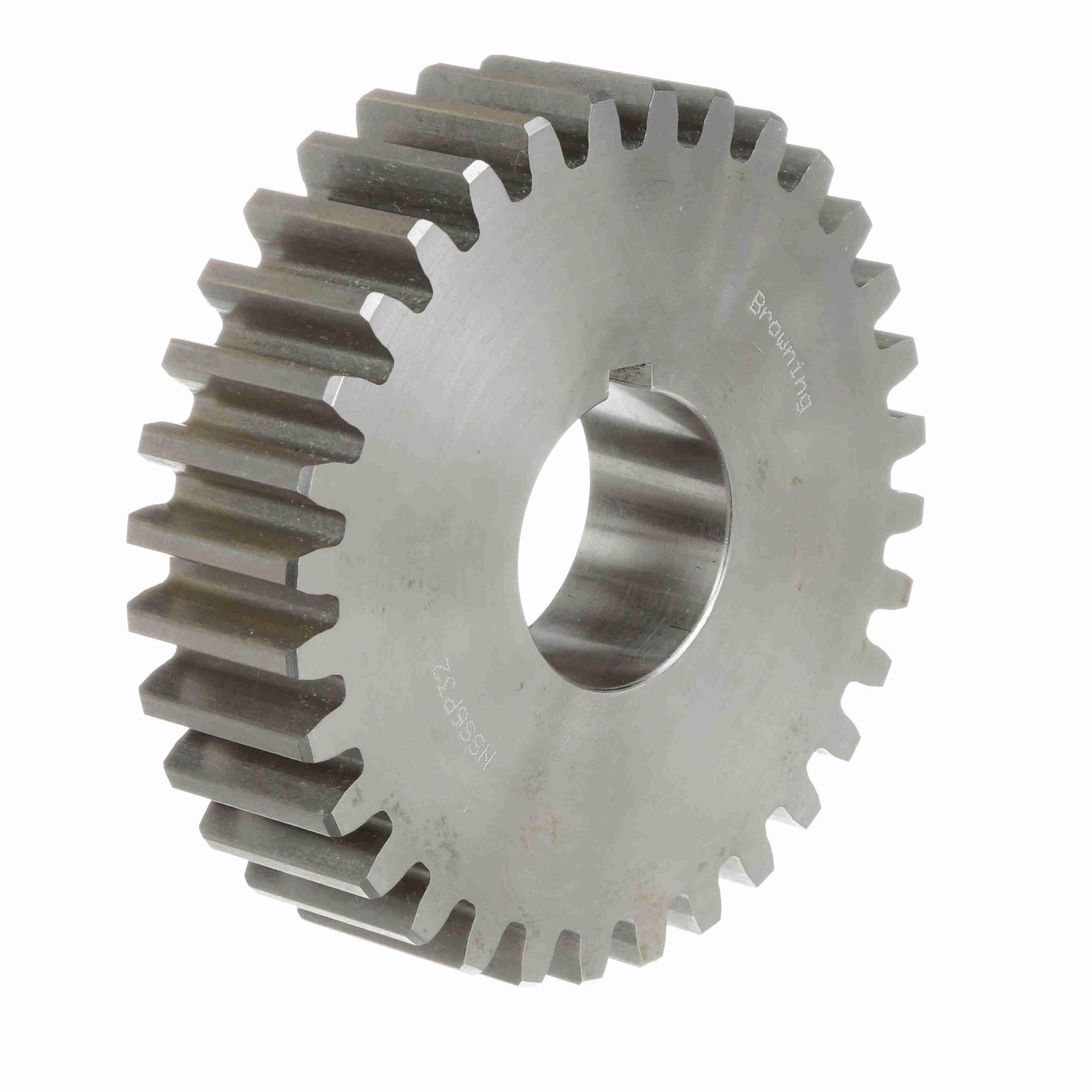

Browning Steel Bushed Bore Spur Gear – 14.5 PA 6 DP – NSS6P32
$579.64
Out of stock
Out of stock
| Number of Teeth/Threads: | 32 | Pitch Diameter (in): | 5.333 in |
|---|---|---|---|
| Material: | Steel | Pressure Angle: | 14.5 |
| Outside Diameter (in): | 5.66 in | Face Width (in): | 1.5 in |
| Diametral Pitch: | 6 | Length Through Bore (in): | 2.1875 in |
| Bore (Min) (in): | 0.5 in | Bore Type: | Bushed Bore |
| Bore (Max) (in): | 1.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.5 in | Hub Type: | P1 |
| Overall Length (in): | 2.1875 in | Standard Met: | AGMA |
| UPC: | 662289205813 | Weight: | 7.59 LB |
| Packaged Length: | 6.60 Inches | Packaged Width: | 6.50 Inches |
| Packaged Height: | 2.90 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
