- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS428

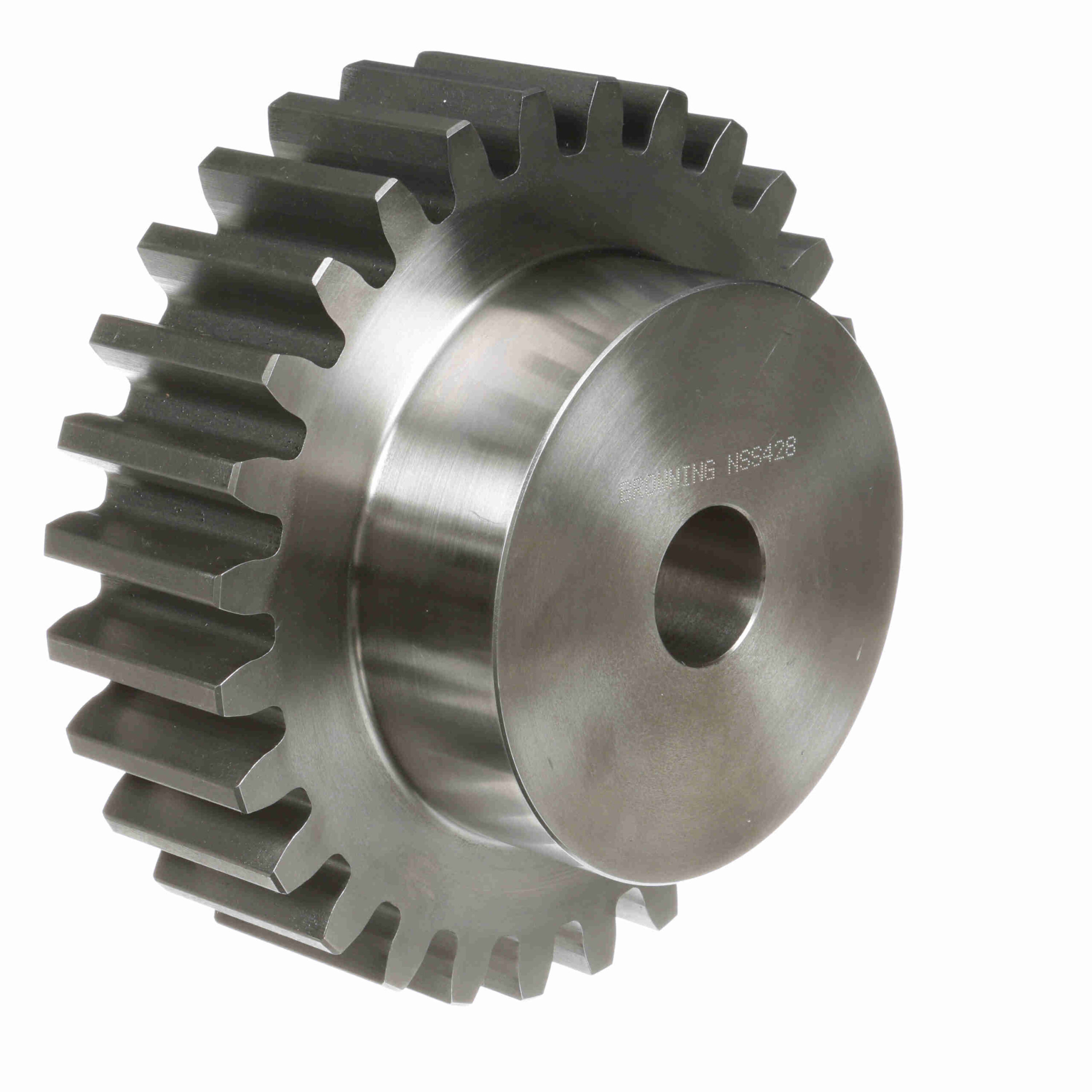

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 4 DP – NSS428
$1,109.26
Out of stock
Out of stock
| Diametral Pitch: | 4 | Outside Diameter (in): | 7.5 in |
|---|---|---|---|
| Material: | Steel | Pressure Angle: | 14.5 |
| Face Width (in): | 2 in | Hub Projection (in): | 1.5 in |
| Number of Teeth/Threads: | 28 | Hub Diameter (in): | 4.75 in |
| Pitch Diameter (in): | 7 in | Bore (Min) (in): | 1.25 in |
| Bore (Max) (in): | 3.375 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 3.5 in | Bore Size (in): | 1.25 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 3.5 in |
| UPC: | 662289254583 | Weight: | 27.93 LB |
| Packaged Length: | 8.70 Inches | Packaged Width: | 8.50 Inches |
| Packaged Height: | 4.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
