- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS422

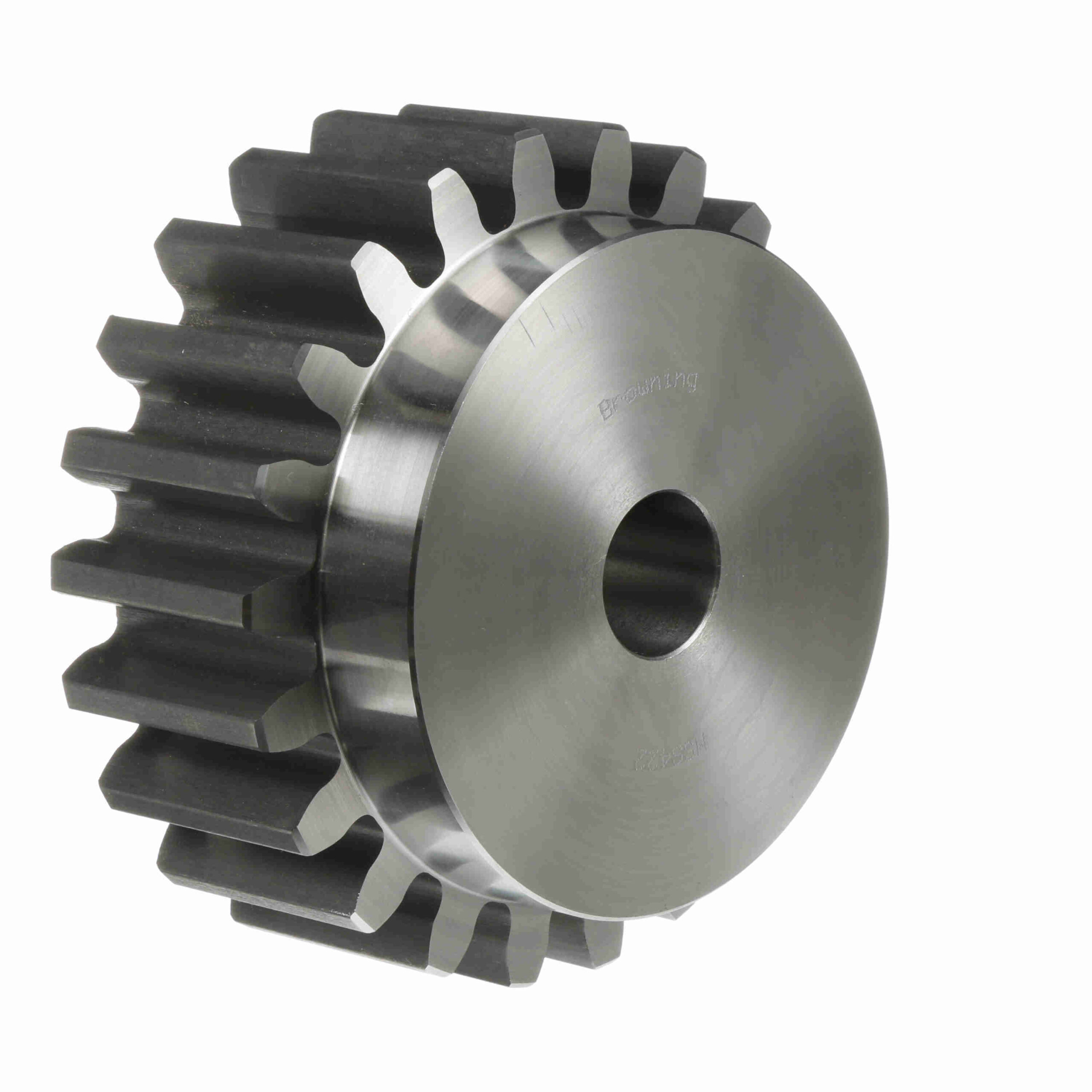

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 4 DP – NSS422
$802.14
Out of stock
Out of stock
| Hub Diameter (in): | 4.75 in | Material: | Steel |
|---|---|---|---|
| Face Width (in): | 2 in | Pressure Angle: | 14.5 |
| Number of Teeth/Threads: | 22 | Hub Projection (in): | 0.875 in |
| Pitch Diameter (in): | 5.5 in | Outside Diameter (in): | 6 in |
| Diametral Pitch: | 4 | Bore (Min) (in): | 1.125 in |
| Length Through Bore (in): | 2.875 in | Bore (Max) (in): | 3.375 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Spur Gear |
| Bore Size (in): | 1.125 in | Hub Type: | Type B |
| Overall Length (in): | 2.875 in | Standard Met: | AGMA |
| UPC: | 662289204526 | Weight: | 16.86 LB |
| Packaged Length: | 7.10 Inches | Packaged Width: | 7.20 Inches |
| Packaged Height: | 4.20 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
