- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS420

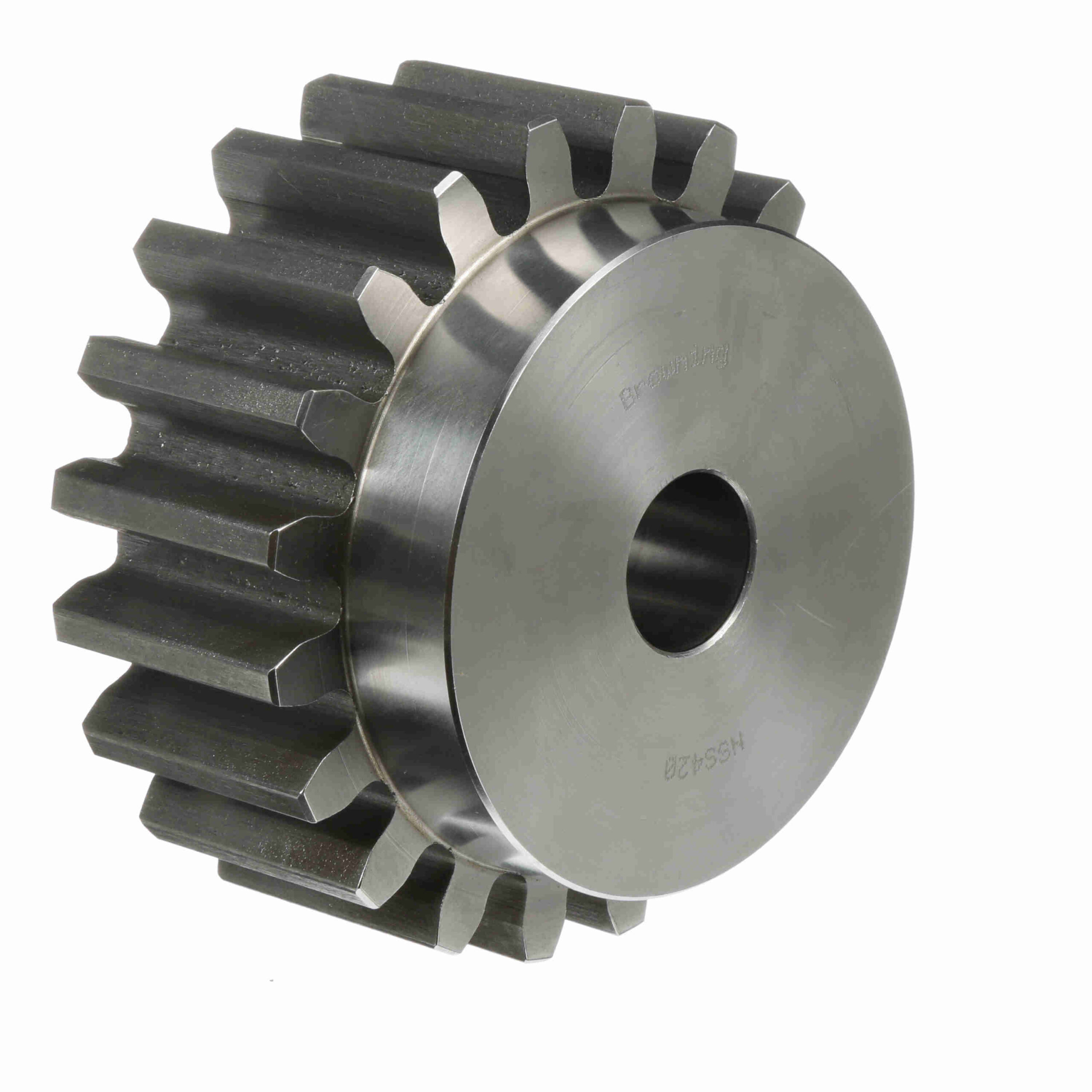

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 4 DP – NSS420
$687.46
Out of stock
Out of stock
| Material: | Steel | Face Width (in): | 2 in |
|---|---|---|---|
| Outside Diameter (in): | 5.5 in | Hub Projection (in): | 0.875 in |
| Pitch Diameter (in): | 5 in | Diametral Pitch: | 4 |
| Number of Teeth/Threads: | 20 | Hub Diameter (in): | 4.25 in |
| Pressure Angle: | 14.5 | Length Through Bore (in): | 2.875 in |
| Bore (Max) (in): | 3 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1.125 in | Product Type: | Spur Gear |
| Bore Size (in): | 1.125 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.875 in |
| UPC: | 662289174508 | Weight: | 13.54 LB |
| Packaged Length: | 6.10 Inches | Packaged Width: | 5.90 Inches |
| Packaged Height: | 3.10 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
