- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS2460

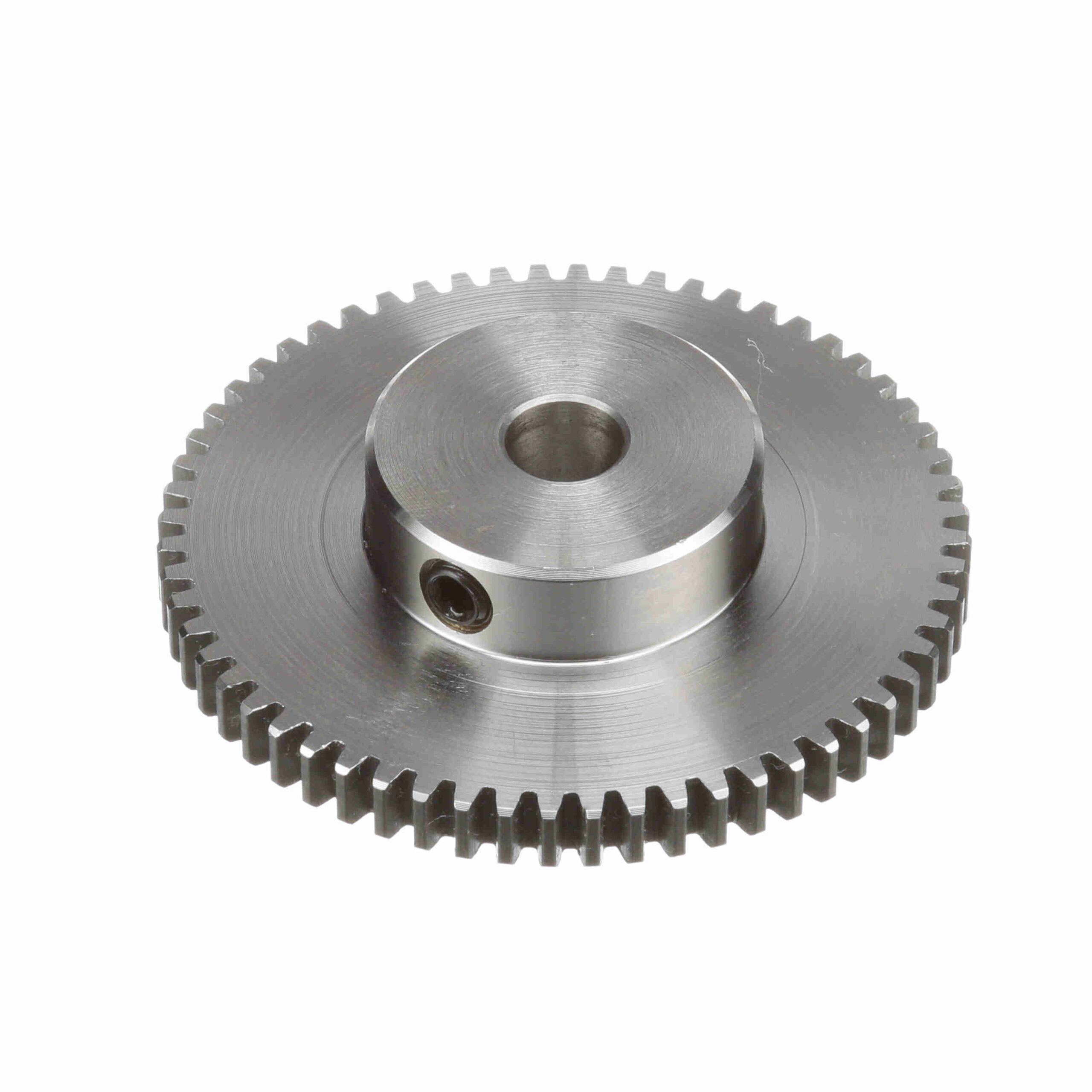

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS2460
$158.86
Out of stock
Out of stock
| Face Width (in): | 0.25 in | Diametral Pitch: | 24 |
|---|---|---|---|
| Number of Teeth/Threads: | 60 | Pitch Diameter (in): | 2.5 in |
| Hub Projection (in): | 0.375 in | Outside Diameter (in): | 2.58 in |
| Hub Diameter (in): | 1.25 in | Pressure Angle: | 14.5 |
| Material: | Steel | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.375 in | Bore (Max) (in): | 0.625 in |
| Length Through Bore (in): | 0.625 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.375 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 0.625 in |
| UPC: | 662289231621 | Weight: | 0.49 LB |
| Packaged Length: | 3.40 Inches | Packaged Width: | 3.20 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
