- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS24120

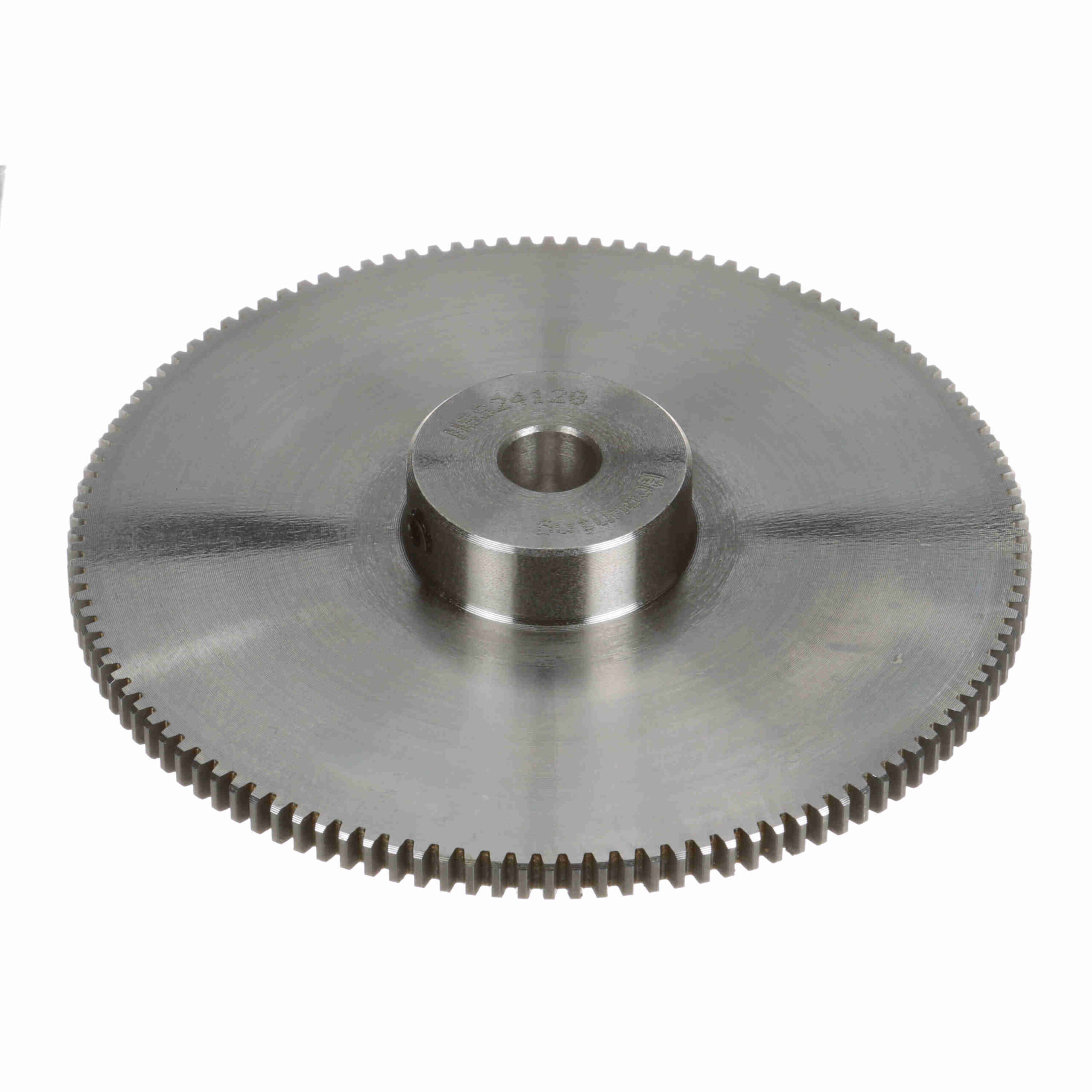

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 24 DP – NSS24120
Out of stock
| Pressure Angle: | 14.5 | Face Width (in): | 0.25 in |
|---|---|---|---|
| Hub Diameter (in): | 1.5 in | Material: | Steel |
| Outside Diameter (in): | 5.08 in | Number of Teeth/Threads: | 120 |
| Diametral Pitch: | 24 | Pitch Diameter (in): | 5 in |
| Hub Projection (in): | 0.4063 in | Bore (Min) (in): | 0.5 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 0.75 in |
| Bore (Max) (in): | 0.75 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.75 in | Standard Met: | AGMA |
| UPC: | 662289151745 | Weight: | 1.67 LB |
| Packaged Length: | 5.80 Inches | Packaged Width: | 5.60 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
