- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS20120

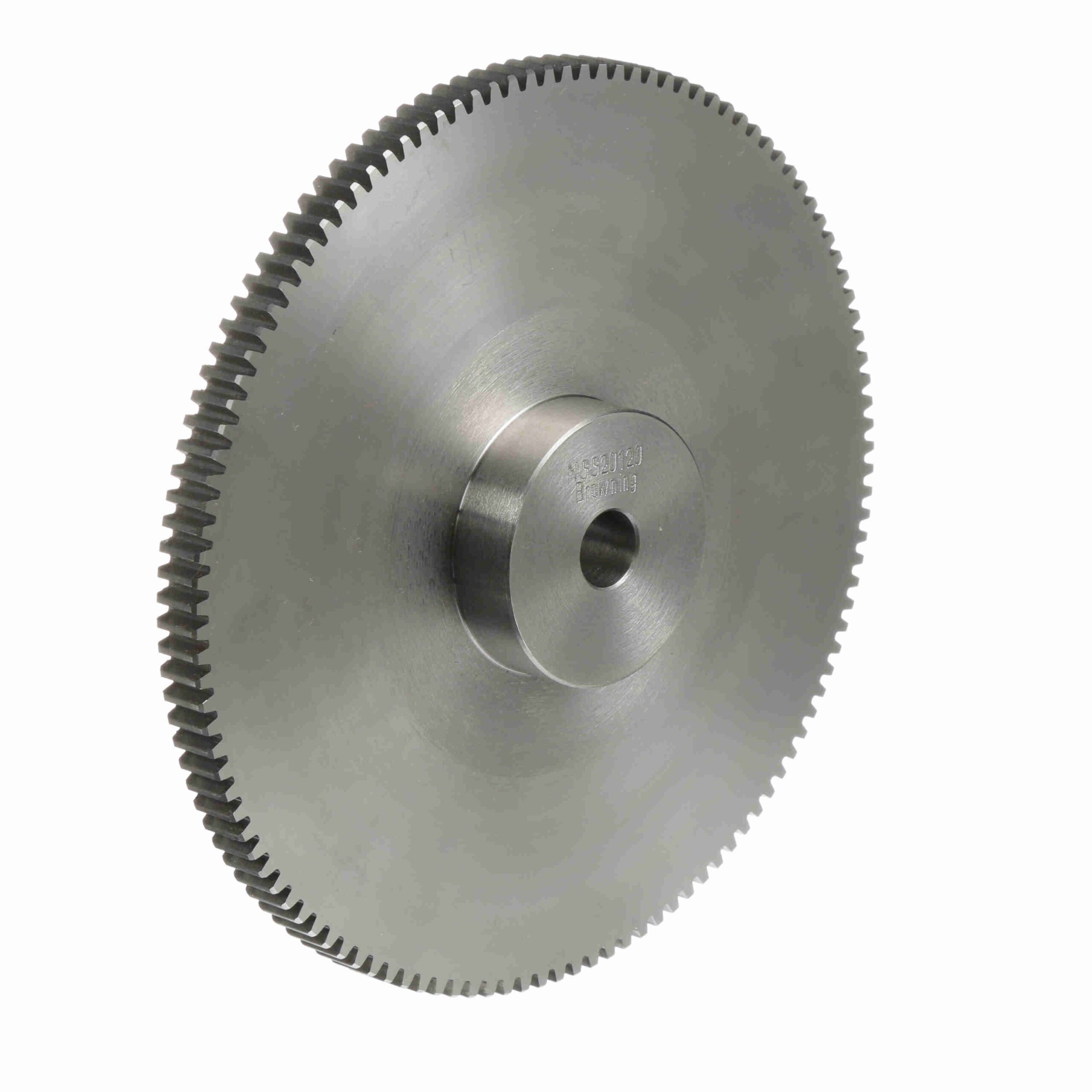

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 20 DP – NSS20120
$291.20
Out of stock
Out of stock
| Pitch Diameter (in): | 6 in | Face Width (in): | 0.375 in |
|---|---|---|---|
| Number of Teeth/Threads: | 120 | Diametral Pitch: | 20 |
| Hub Projection (in): | 0.5 in | Material: | Steel |
| Hub Diameter (in): | 1.8125 in | Pressure Angle: | 14.5 |
| Outside Diameter (in): | 6.1 in | Bore (Max) (in): | 1 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 0.875 in |
| Bore (Min) (in): | 0.5 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.875 in | Standard Met: | AGMA |
| UPC: | 662289272112 | Weight: | 3.43 LB |
| Packaged Length: | 6.30 Inches | Packaged Width: | 6.10 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
